Crankshaft Position Sensor: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE ENGINE UNDER COVER RH
  3. REMOVE CRANKSHAFT POSITION SENSOR

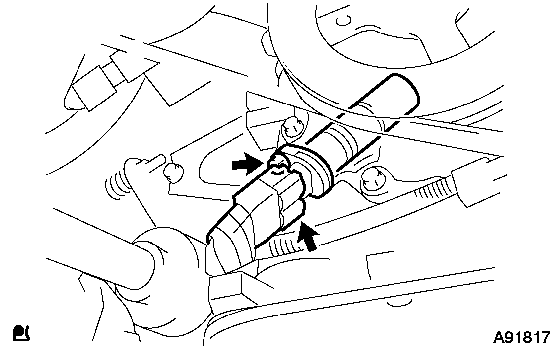

    Fig 1: Identifying Crankshaft Position Sensor
    GTY235510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and remove the crankshaft position sensor.
