Knock Sensor: Components: Illustration

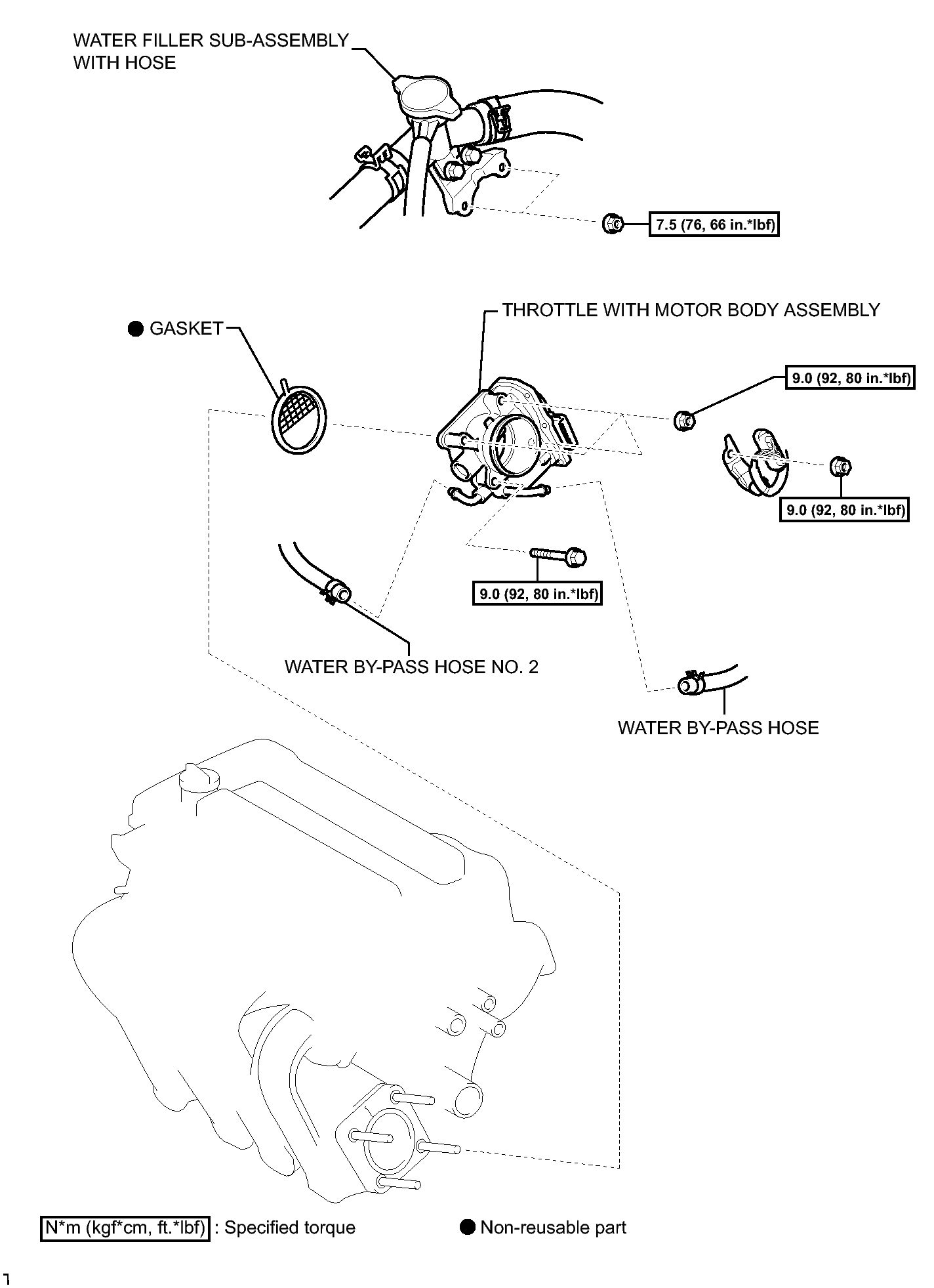

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

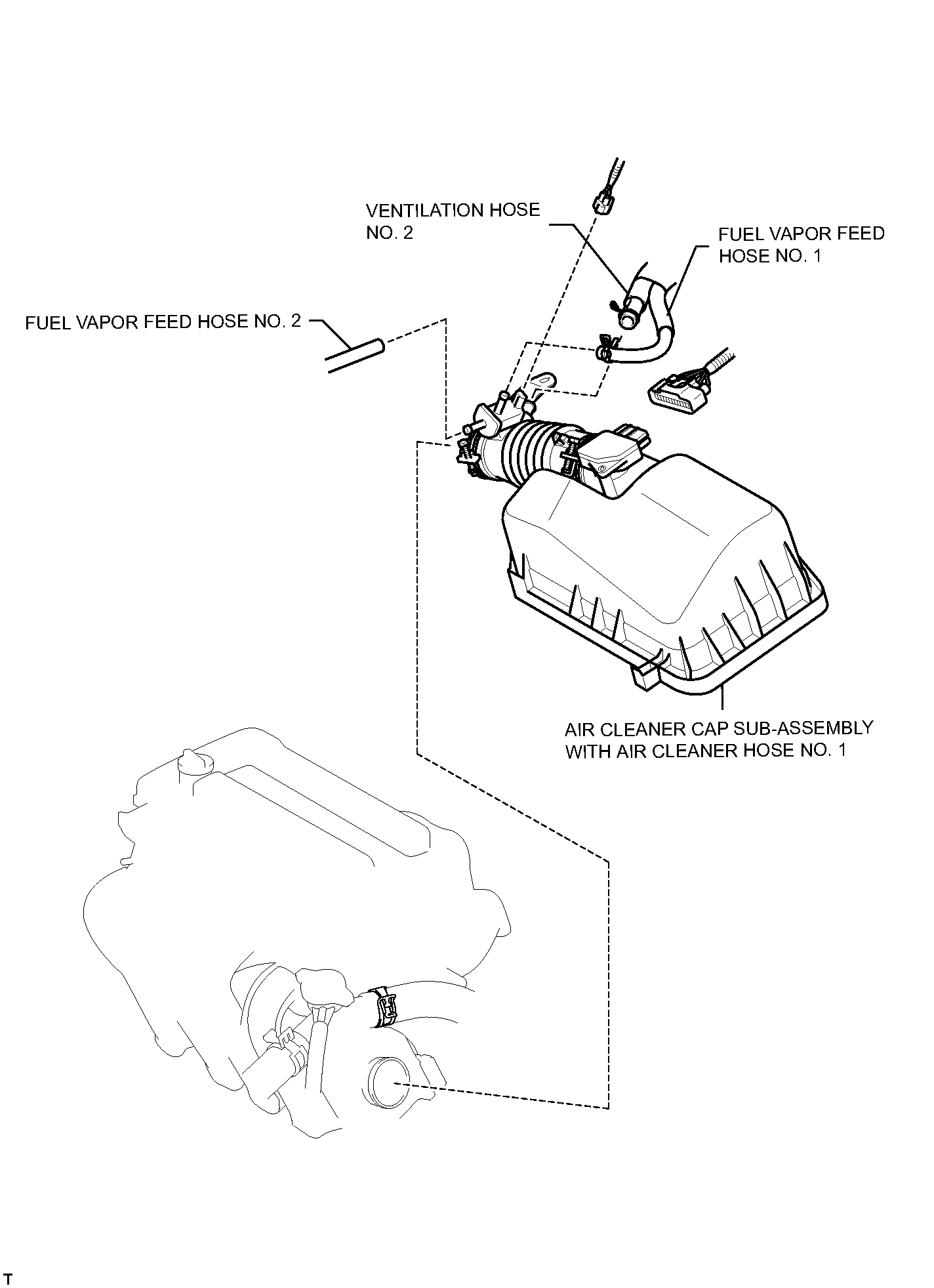

Fig 1: Identifying Knock Sensor Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

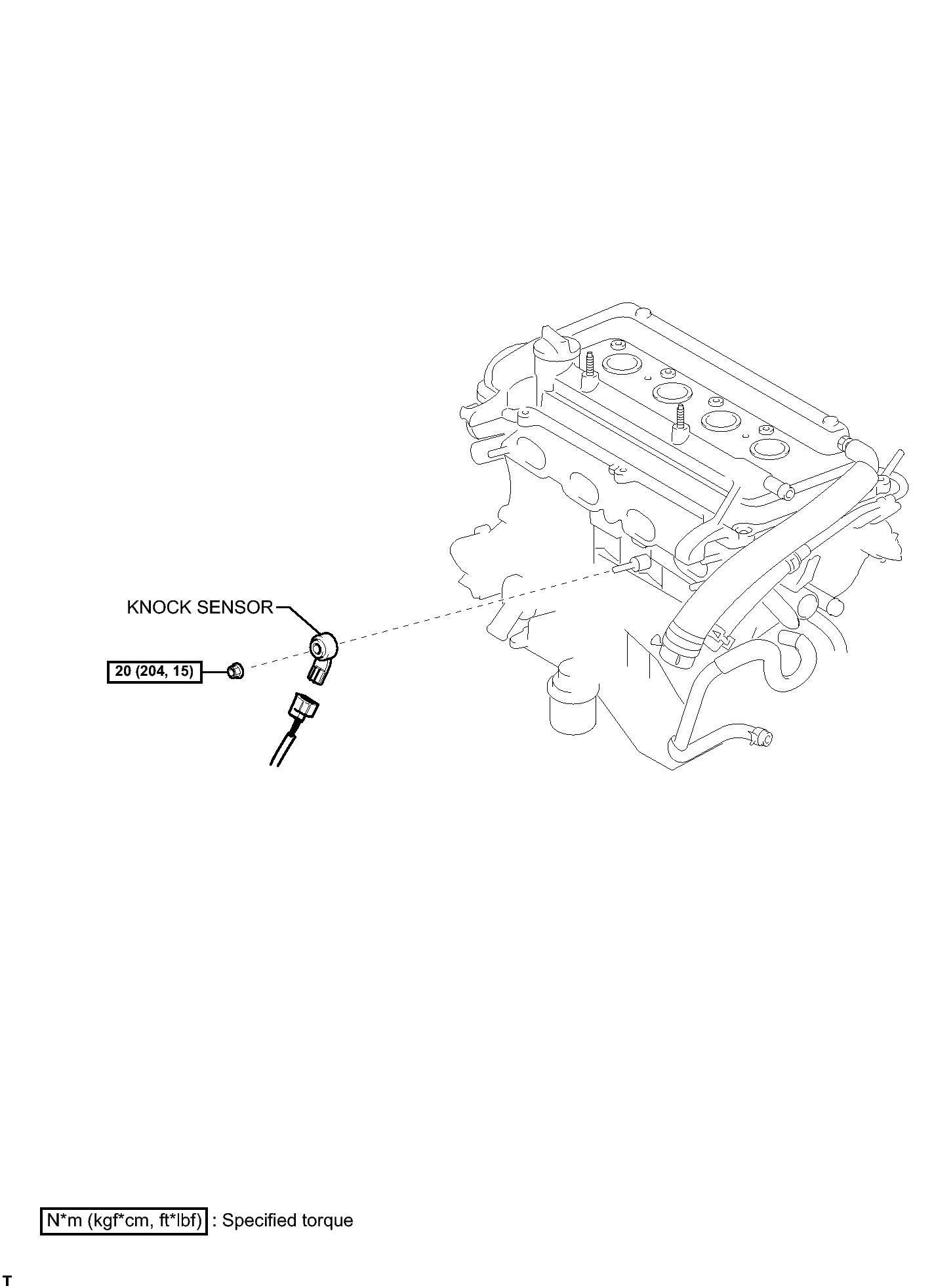

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

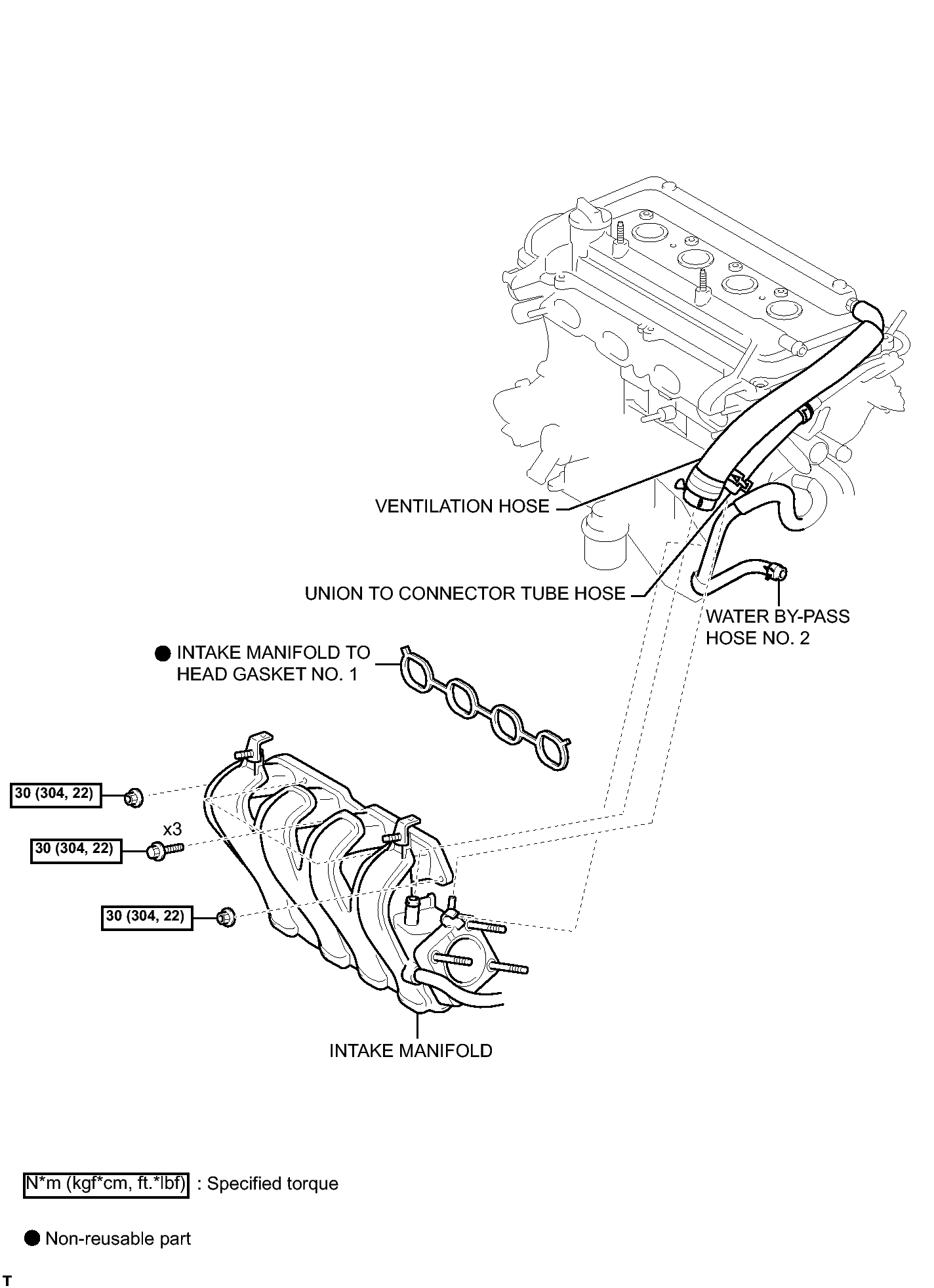

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (4 Of 5)

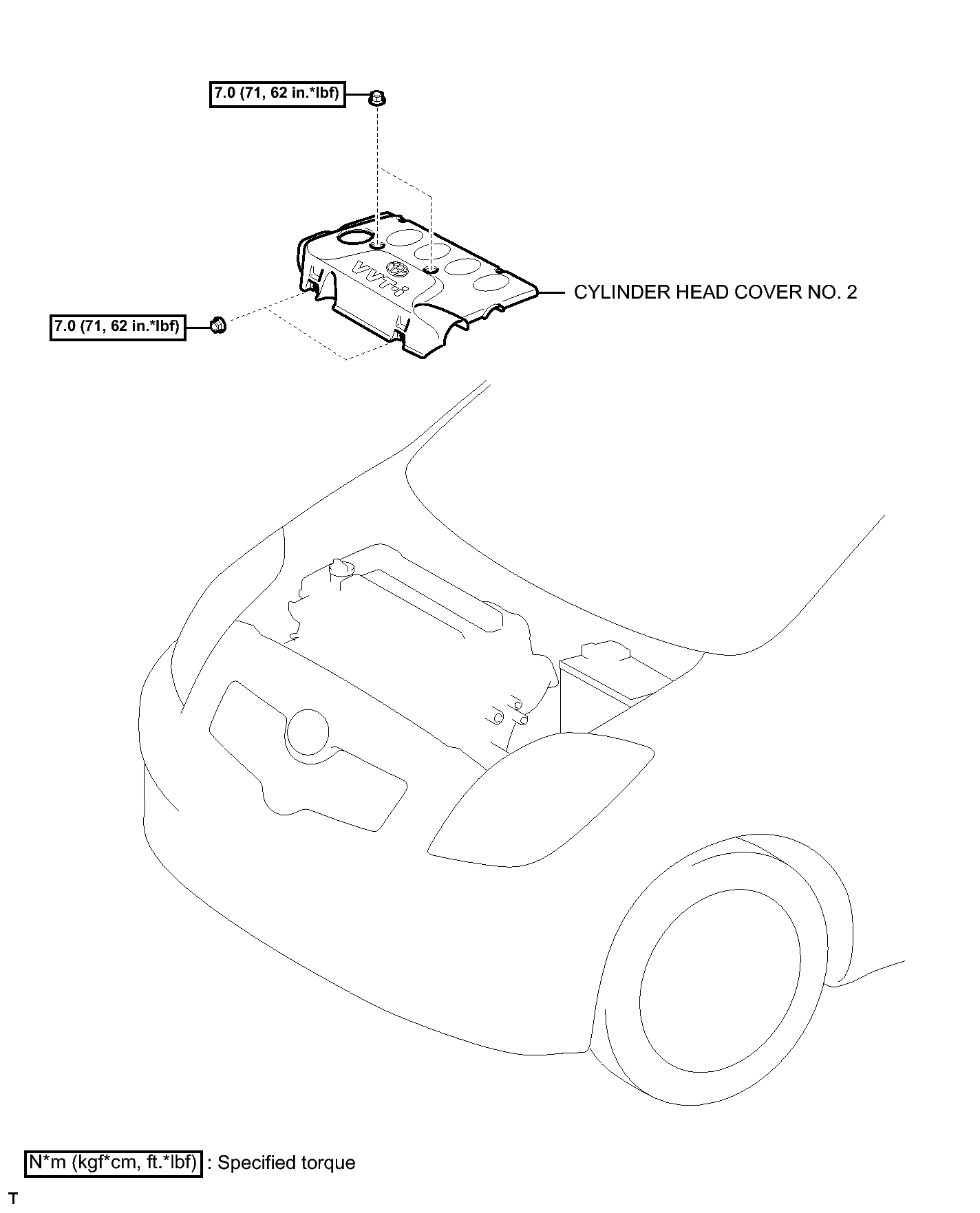

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (5 Of 5)
