Engine Control System (Service Information): ECM: Installation: Installation

  1. INSTALL ECM BRACKET NO. 2
    Fig 1: Identifying ECM Bracket No. 2 With Screws
    GTY162927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install ECM bracket No. 2 with the 2 screws.
  2. INSTALL ECM BRACKET
    Fig 2: Locating ECM Bracket Screws
    GTY162368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the ECM bracket with the 2 screws.
  3. INSTALL ECM
    Fig 3: Identifying ECM Connectors Bolts And Nuts
    GTY234580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the ECM with the bolt and 2 nuts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Connect the 2 ECM connectors.
    3. Install the 2 lock knobs and harness clamp.

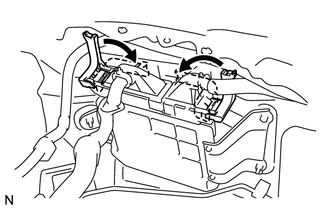

      Fig 4: Identifying 2 Lock Knobs And Harness Clamp
      GTY222540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL COWL TOP PANEL OUTER (for Hatchback)  . Refer to INSTALLATION - Step 82
  5. INSTALL COWL TOP PANEL OUTER (for Sedan)
    1. Install the cowl top panel outer and install the 8 bolts.
      Fig 5: Identifying Cowl Top Panel Outer Bolts
      GTY233964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

    2. Install the cowl top panel outer center bracket and install the 2 bolts.
      Fig 6: Identifying Cowl Top Panel Outer Center Bracket Bolts
      GTY237576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

    3. Connect the wire harness and engage the claw.
      Fig 7: Identifying Wire Harness Claw
      GTY237574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT AIR SHUTTER SEAL (for Sedan)
    1. Install the front air shutter seal and engage the 3 claws.
      Fig 8: Identifying Front Air Shutter Seal Claws
      GTY237575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL COWL TO REGISTER DUCT SUB-ASSEMBLY NO. 2 (for Hatchback)  . Refer to INSTALLATION - Step 84
  8. INSTALL WINDSHIELD WIPER MOTOR AND LINK (for Hatchback)  . Refer to INSTALLATION - Step 2
  9. INSTALL WINDSHIELD WIPER MOTOR AND LINK (for Sedan)  . Refer to INSTALLATION - Step 2
  10. INSTALL COWL TOP VENTILATOR LOUVER LH (for Hatchback)  . Refer to INSTALLATION - Step 3
  11. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (for Hatchback)  . Refer to INSTALLATION - Step 4
  12. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (for Sedan)  . Refer to INSTALLATION - Step 3
  13. INSTALL HOOD TO COWL TOP SEAL (for Hatchback)  . Refer to INSTALLATION - Step 5
  14. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan)  . Refer to INSTALLATION - Step 4
  15. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan)  . Refer to INSTALLATION - Step 5
  16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (for Hatchback)  . Refer to INSTALLATION - Step 6
  17. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (for Sedan)  . Refer to INSTALLATION - Step 6
  18. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (for Hatchback)  . Refer to INSTALLATION - Step 7
  19. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (for Sedan)  . Refer to INSTALLATION - Step 7
  20. INSTALL FRONT WIPER ARM HEAD CAP (for Hatchback)  . Refer to INSTALLATION - Step 8
  21. INSTALL FRONT WIPER ARM HEAD CAP (for Sedan)  . Refer to INSTALLATION - Step 8
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
