Ignition (2GR-FE): Notes

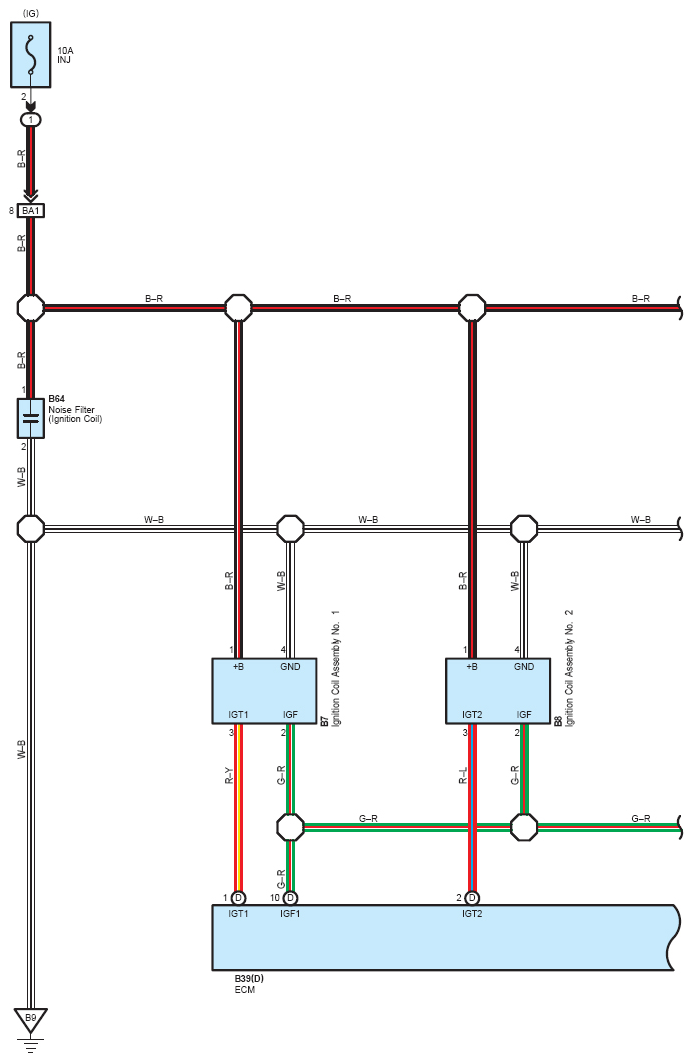

Fig 1: Ignition (2TR-FE) Wiring Diagram (1 Of 2)
G07111375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

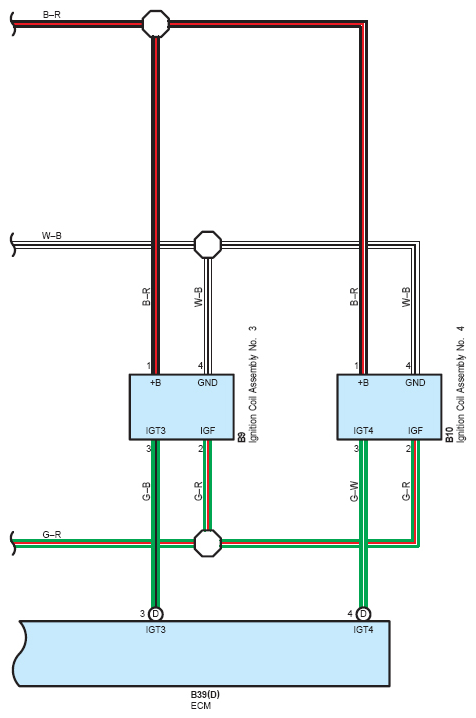

Fig 2: Ignition (2TR-FE) Wiring Diagram (2 Of 2)
G07111376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
