Shift Lock (2TR-FE): Notes

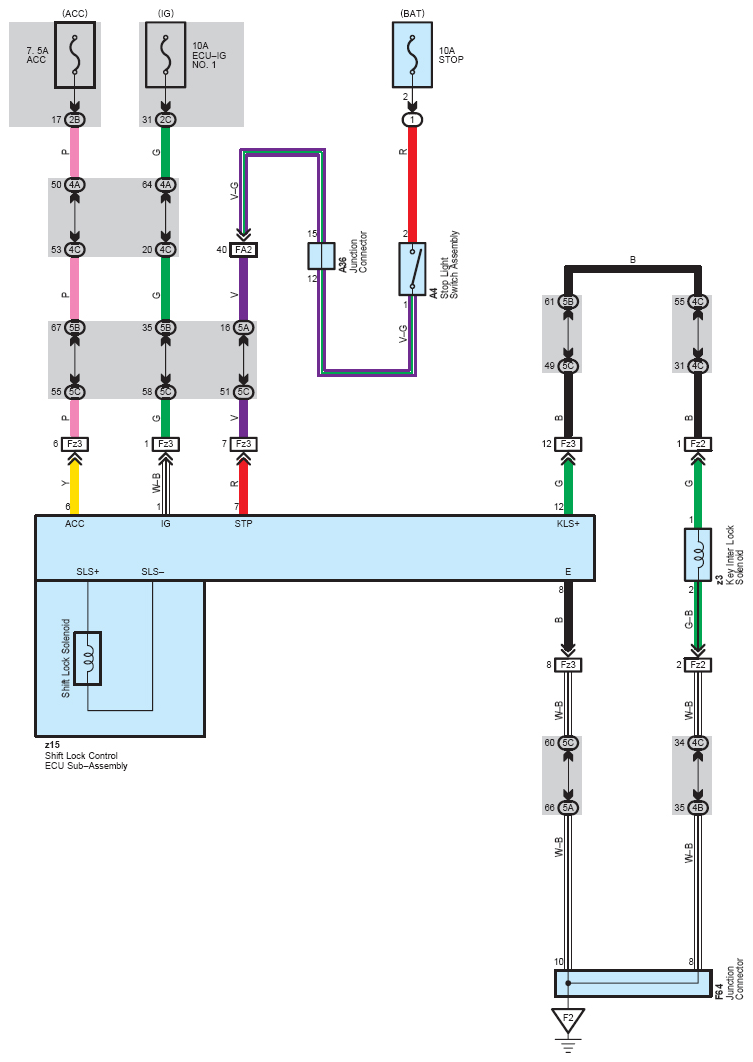

Fig 1: Shift Lock (2TR-FE) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
