Navigation Receiver Assembly Communication Stop Mode: Wiring Diagram

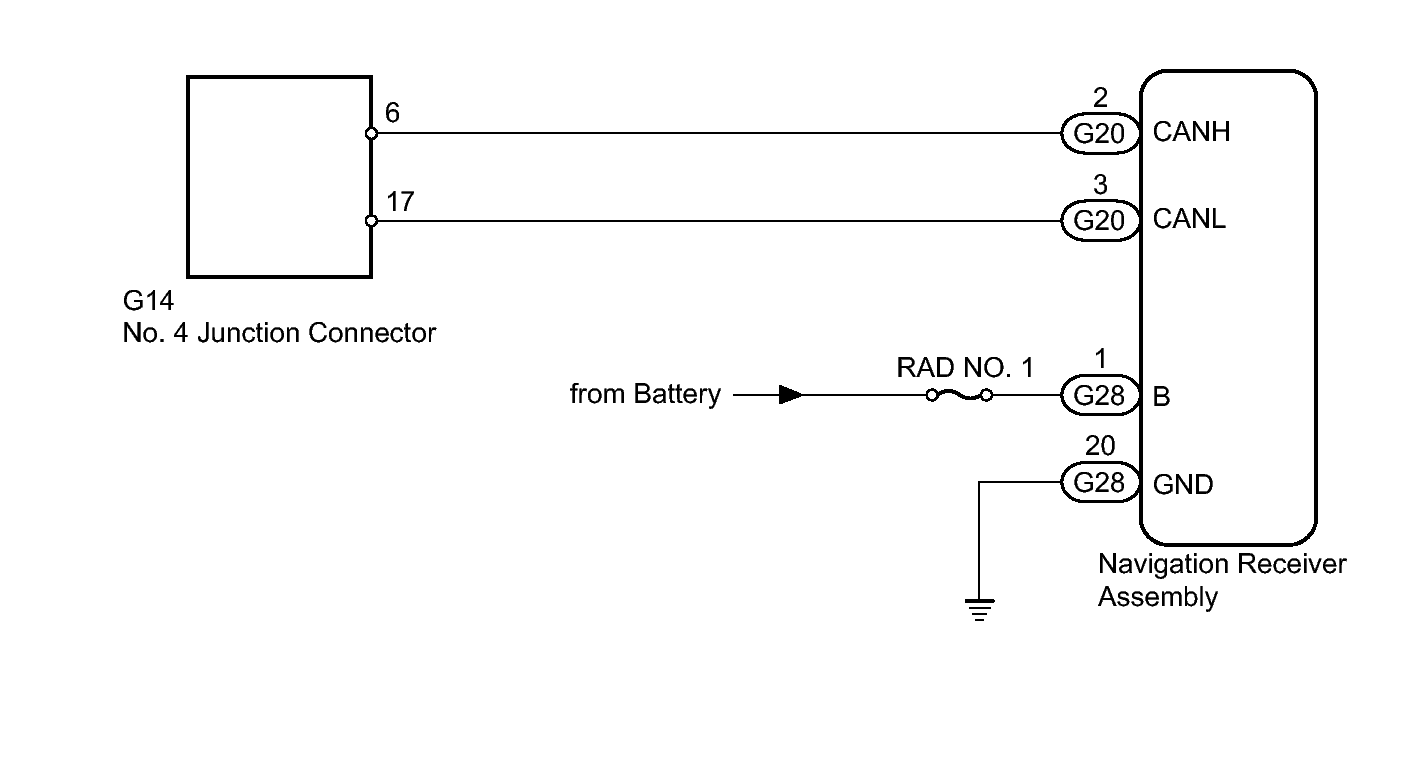

Fig 1: Identifying Navigation Receiver Assembly Wiring Diagram
GTY236170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
