Multi-media Interface ECU Power Source Circuit: Procedure

1. Disconnect the G11 multi-media interface ECU connector.

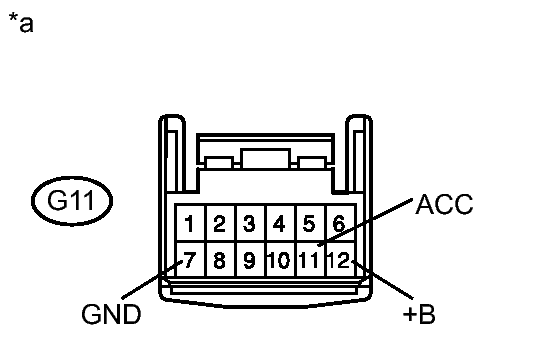

   Fig 1: Identifying G11 Multi-Media Interface ECU Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G11-12 (+B) - G11-7 (GND)	Always	11 to 14 V
   G11-11 (ACC) - G11-7 (GND)	Ignition switch ACC	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Interface ECU)

NG → See step   2

OK → See step   3

1. Disconnect the G19 navigation receiver assembly connector.
2. Disconnect the G11 multi-media interface ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G19-11 (ACC) - G11-11 (ACC)	Always	Below 1 Ω
   G19-12 (+B) - G11-12 (+B)	Always	Below 1 Ω
   G19-7 (GND) - G11-7 (GND)	Always	Below 1 Ω
   G19-11 (ACC) - Body ground	Always	10 kΩ or higher
   G19-12 (+B) - Body ground	Always	10 kΩ or higher
   G19-7 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
