Mute Signal Circuit between Navigation Receiver Assembly and Multi-media Interface ECU: Procedure

1. Measure the voltage according to the value(s) in the table below.

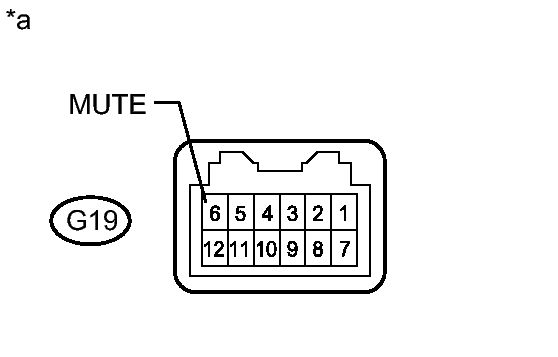

   Fig 1: Identifying Navigation Receiver Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G19-6 (MUTE) - Body ground	Ignition switch ACC, Satellite radio playing → Changing source	Higher than 3.5 V → Below 1 V

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Navigation Receiver Assembly)

NG → See step   2

OK → See step   3

1. Disconnect the G19 navigation receiver assembly connector.
2. Disconnect the G11 multi-media interface ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G19-6 (MUTE) - G11-6 (MUT1)	Always	Below 1 Ω
   G19-6 (MUTE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
