Display Signal Circuit between Navigation Receiver Assembly and Television Camera Assembly: Wiring Diagram

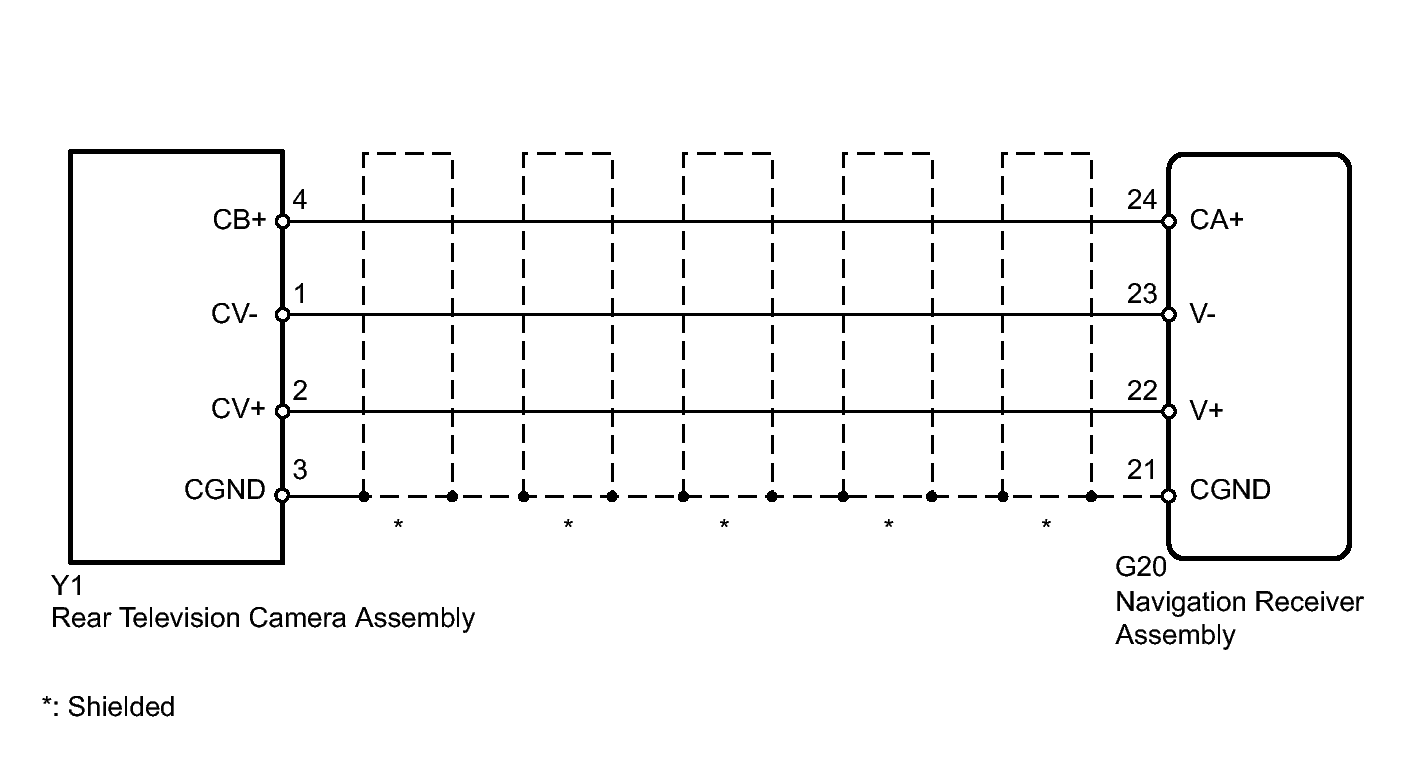

Fig 1: Identifying Navigation Receiver Assembly & Television Camera Assembly - Wiring Diagram
GTY222470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
