Smart Key System: Notes

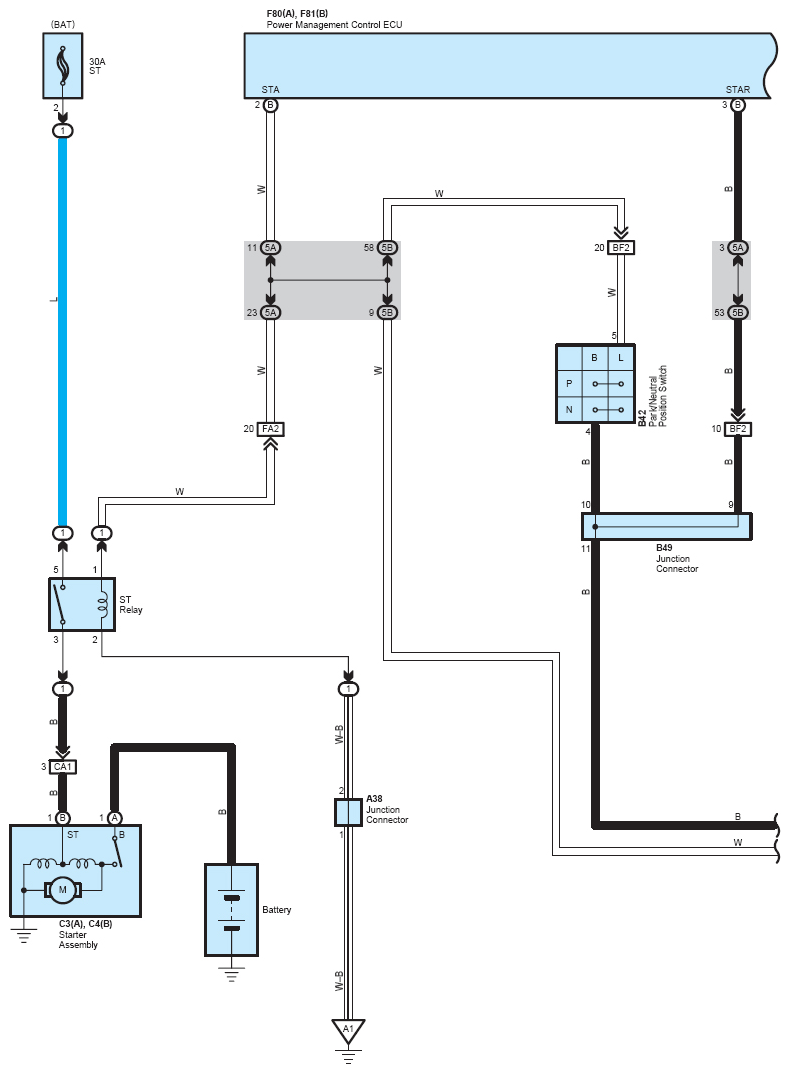

Fig 1: Smart Key System Wiring Diagram (1 Of 20)

G07111349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

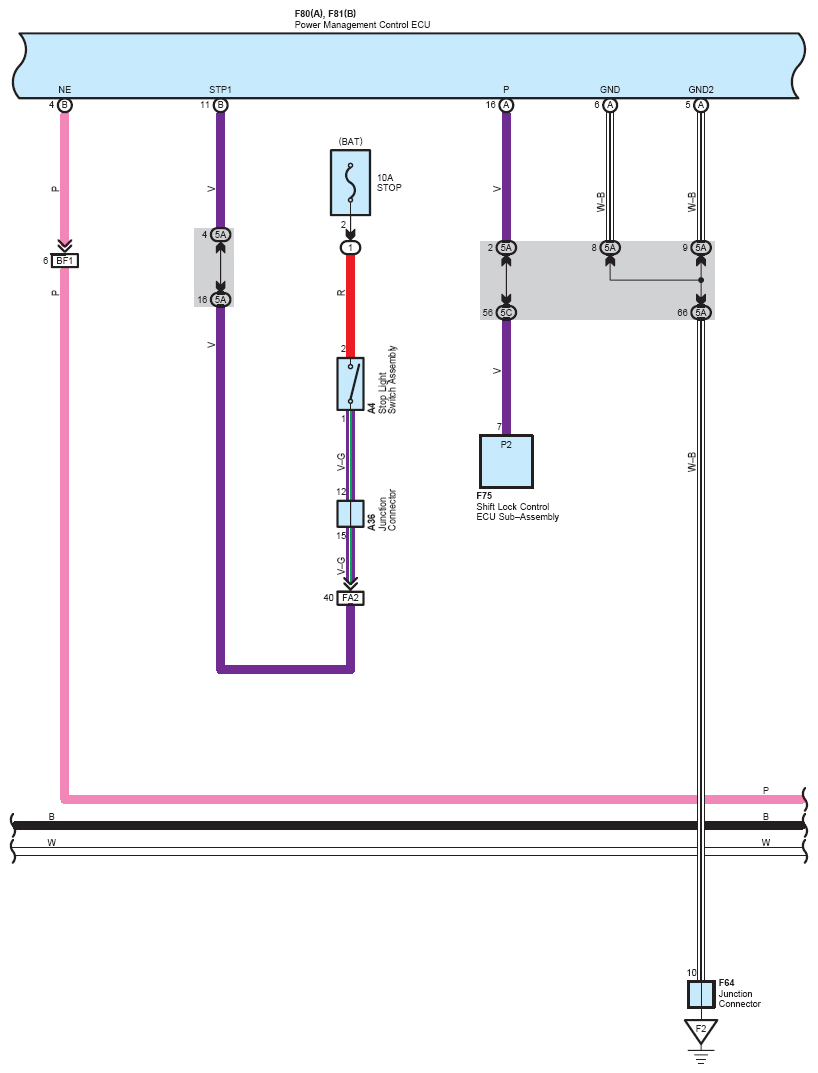

Fig 2: Smart Key System Wiring Diagram (2 Of 20)

G07111350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

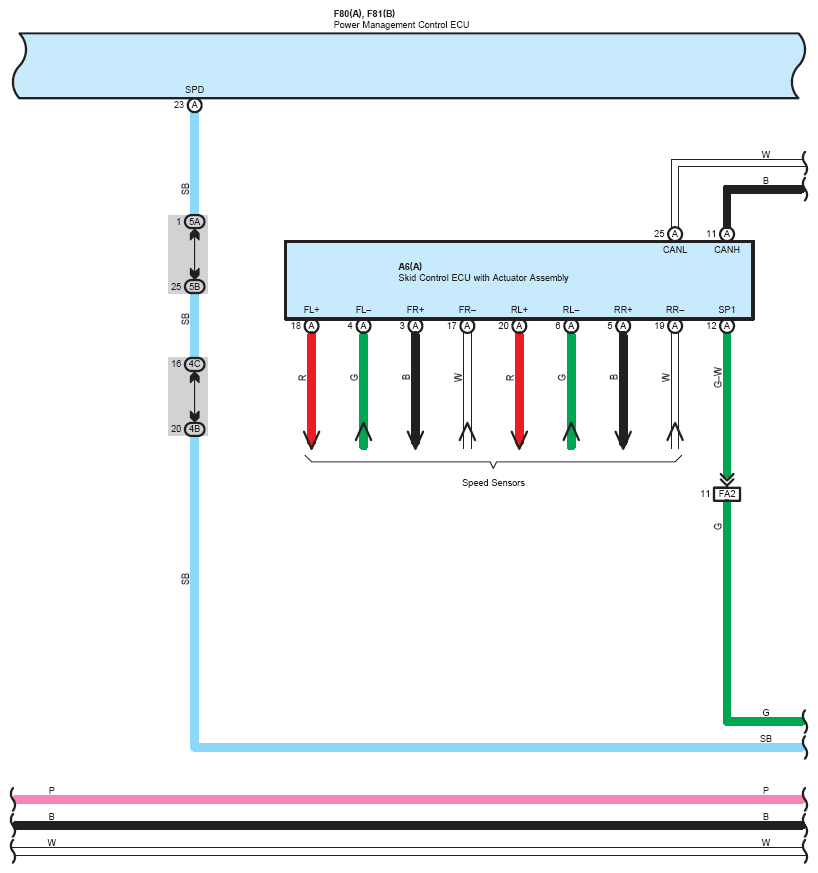

Fig 3: Smart Key System Wiring Diagram (3 Of 20)

G07111351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

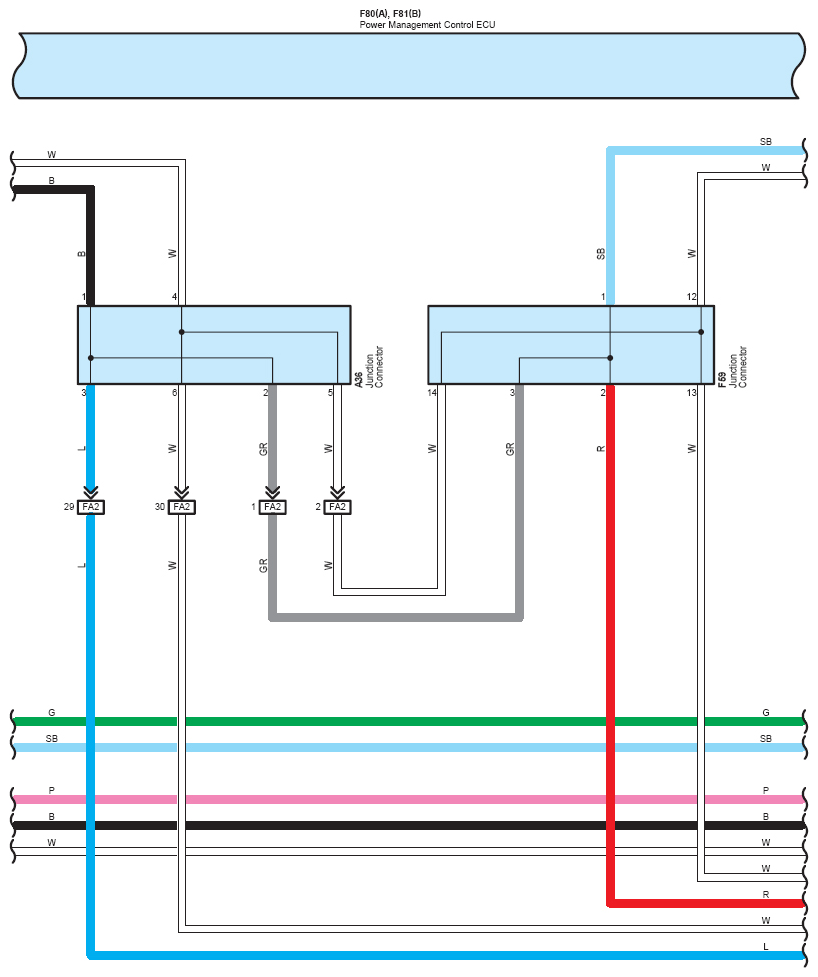

Fig 4: Smart Key System Wiring Diagram (4 Of 20)

G07111352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

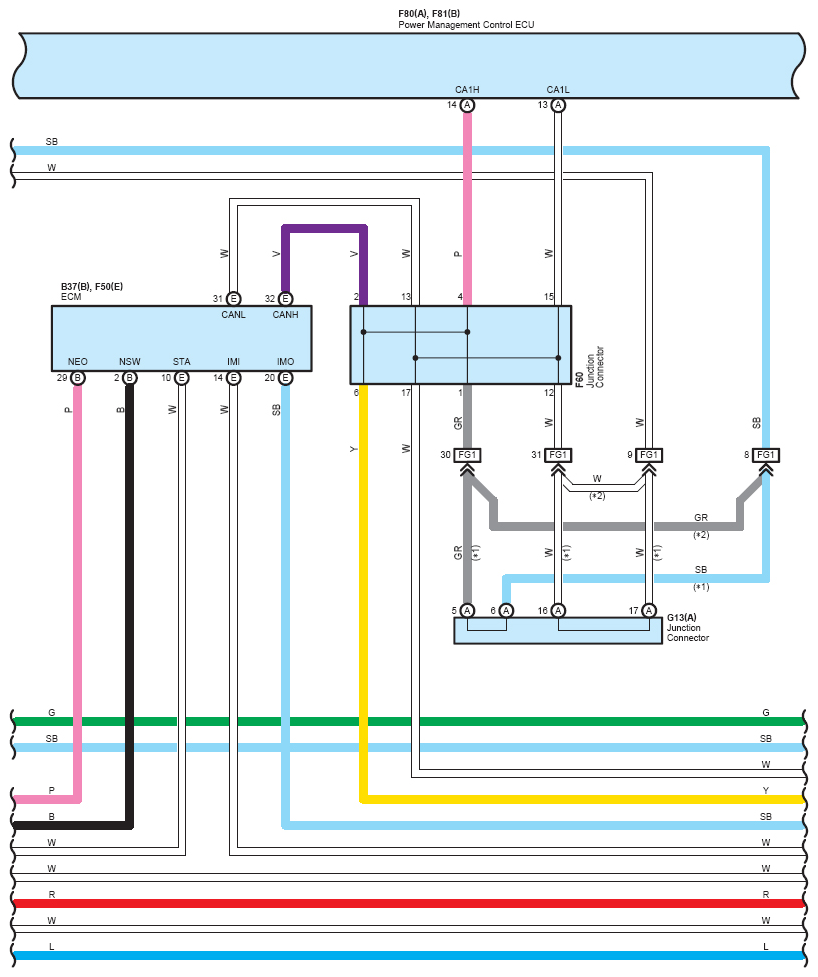

Fig 5: Smart Key System Wiring Diagram (5 Of 20)

G07111353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

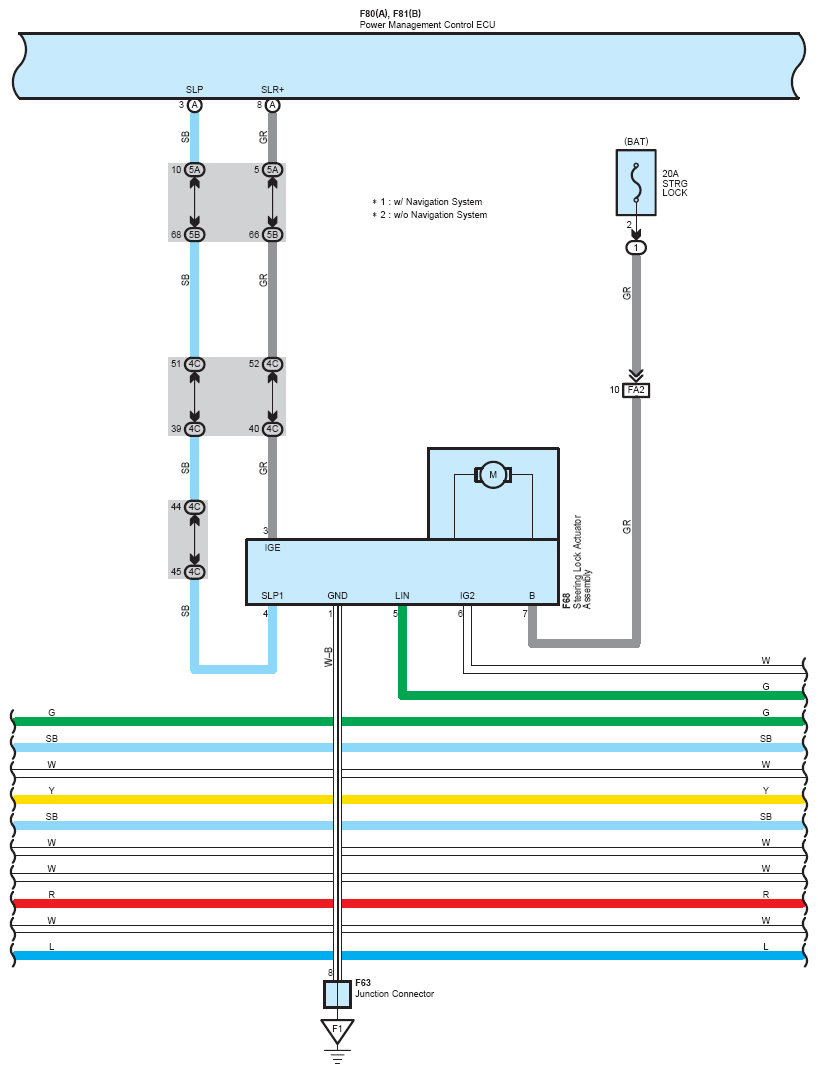

Fig 6: Smart Key System Wiring Diagram (6 Of 20)

G07111354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

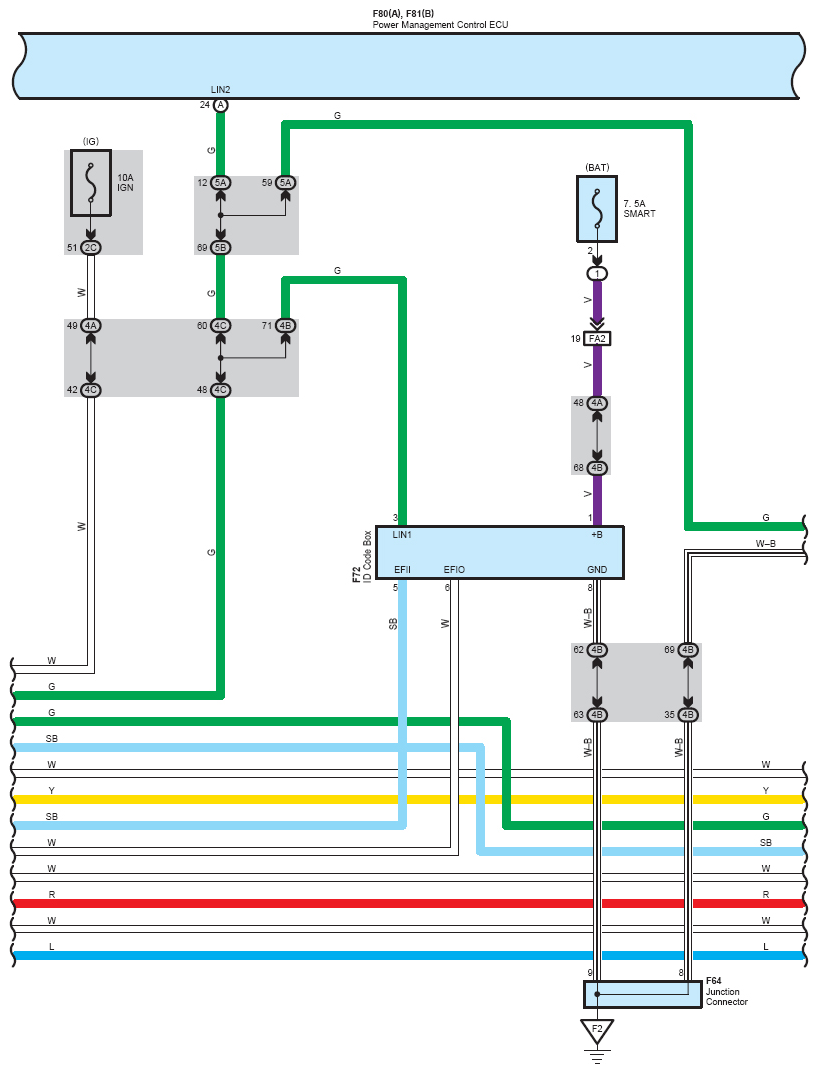

Fig 7: Smart Key System Wiring Diagram (7 Of 20)

G07111355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

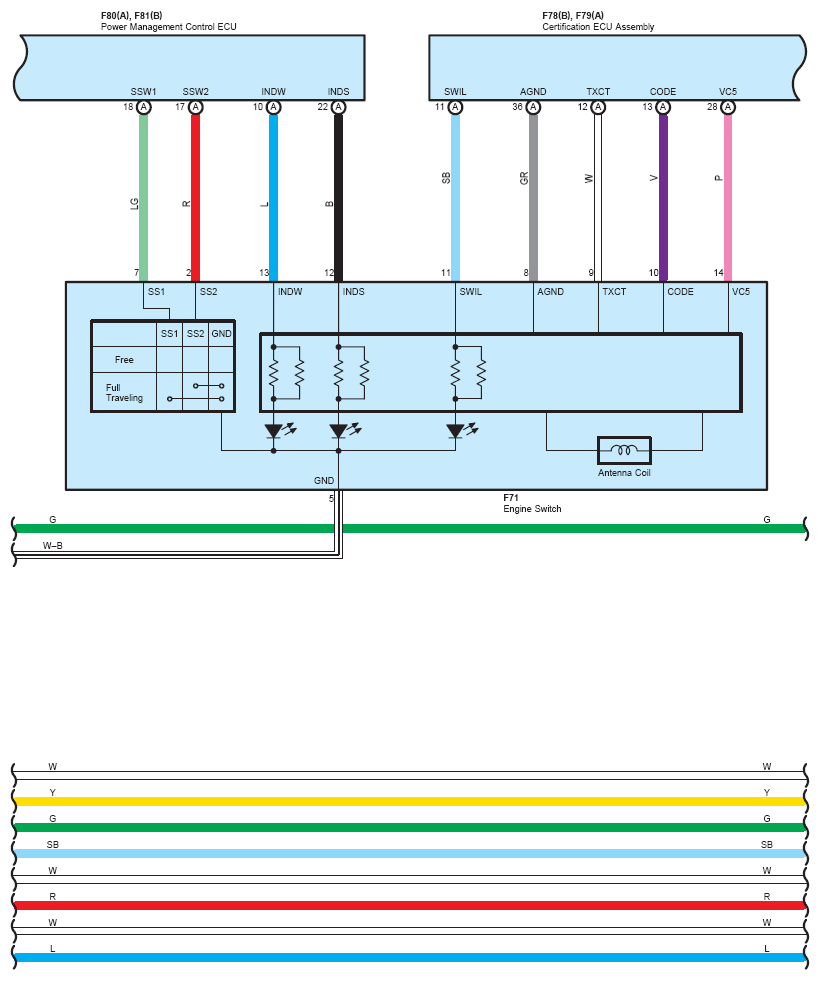

Fig 8: Smart Key System Wiring Diagram (8 Of 20)

G07111356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

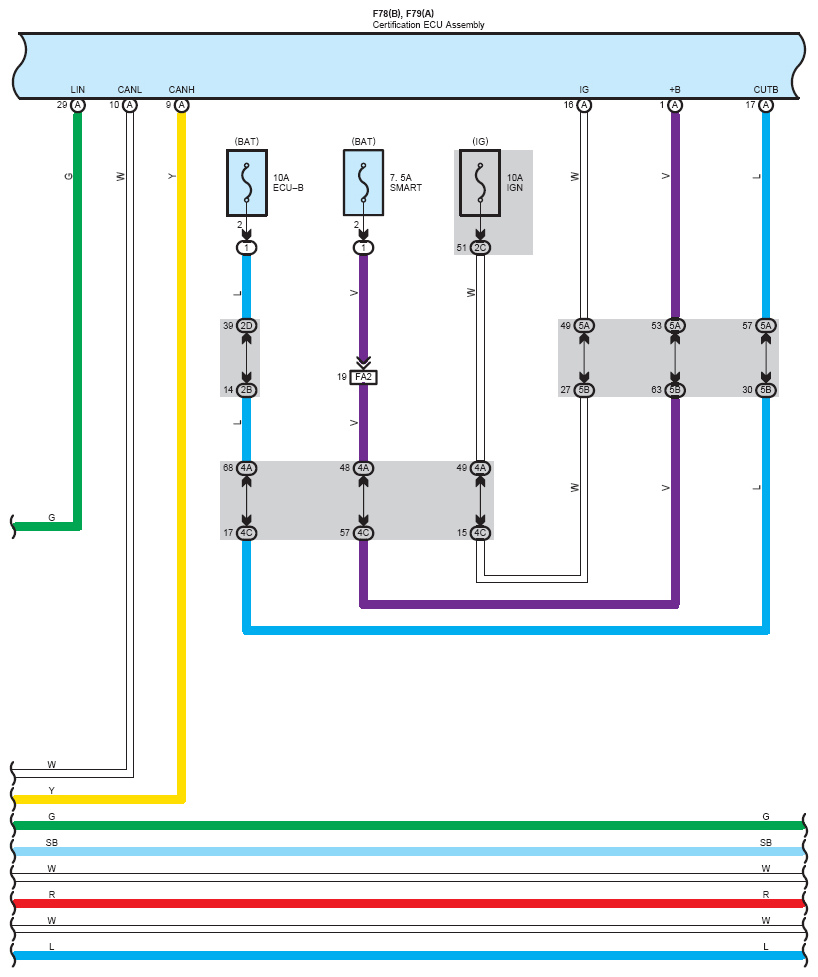

Fig 9: Smart Key System Wiring Diagram (9 Of 20)

G07111357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

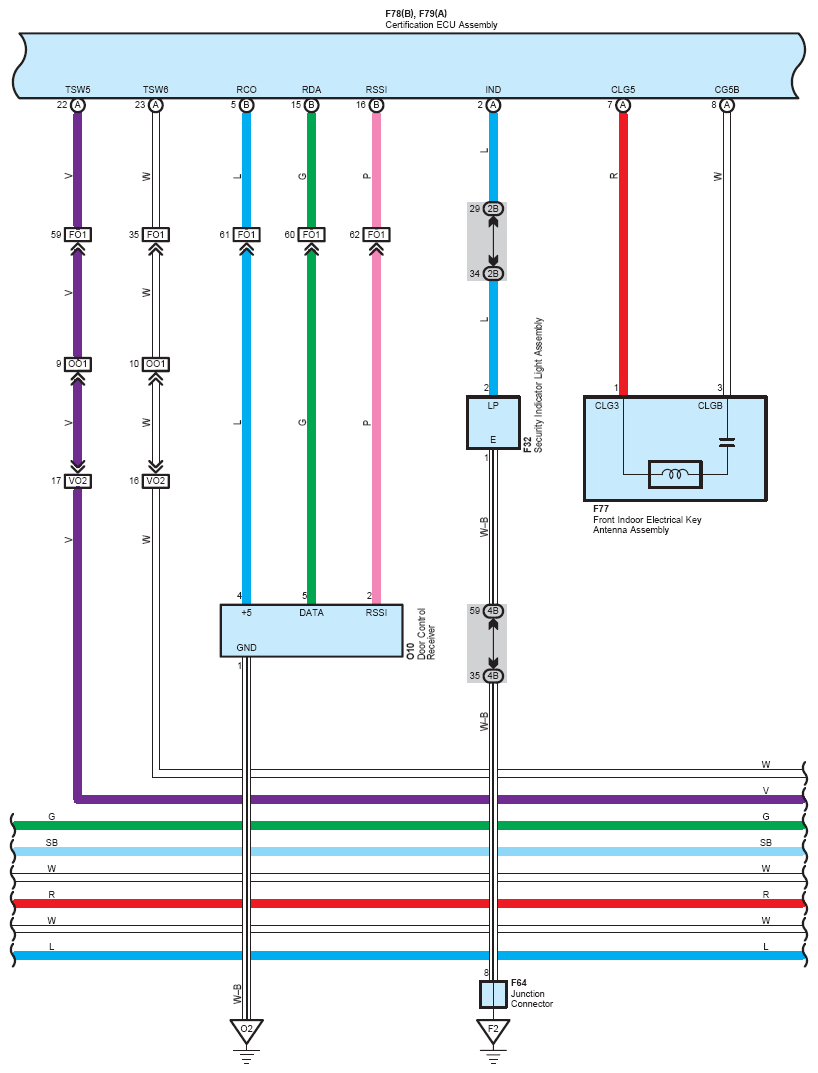

Fig 10: Smart Key System Wiring Diagram (10 Of 20)

G07111358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

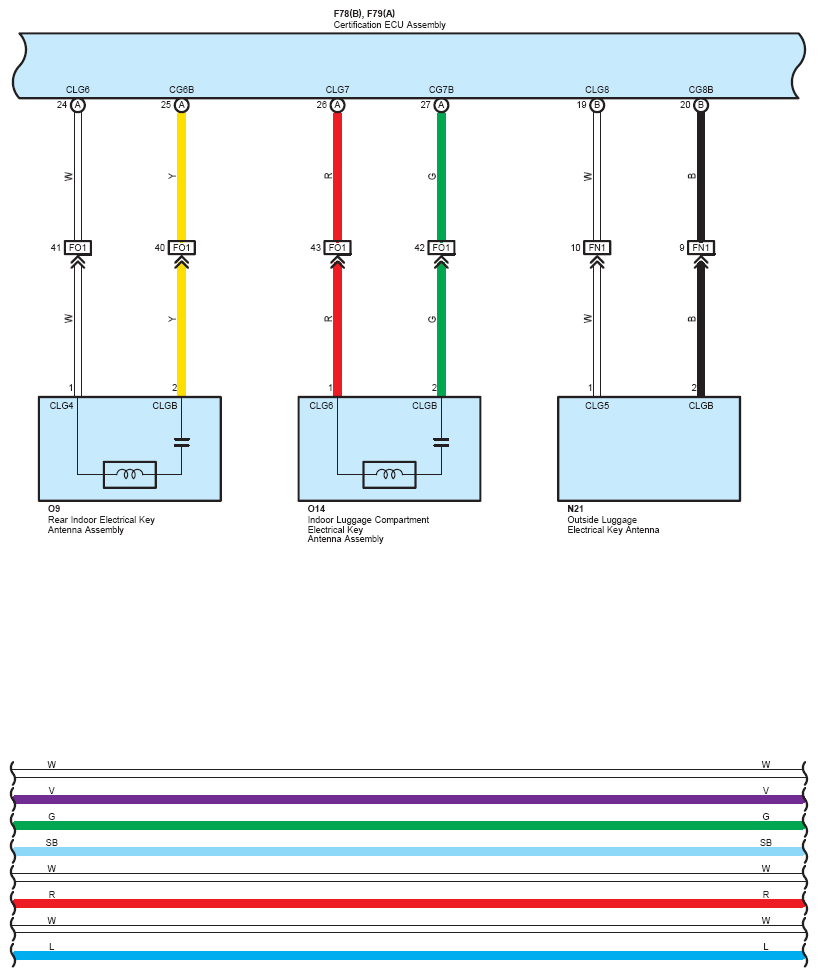

Fig 11: Smart Key System Wiring Diagram (11 Of 20)

G07111359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

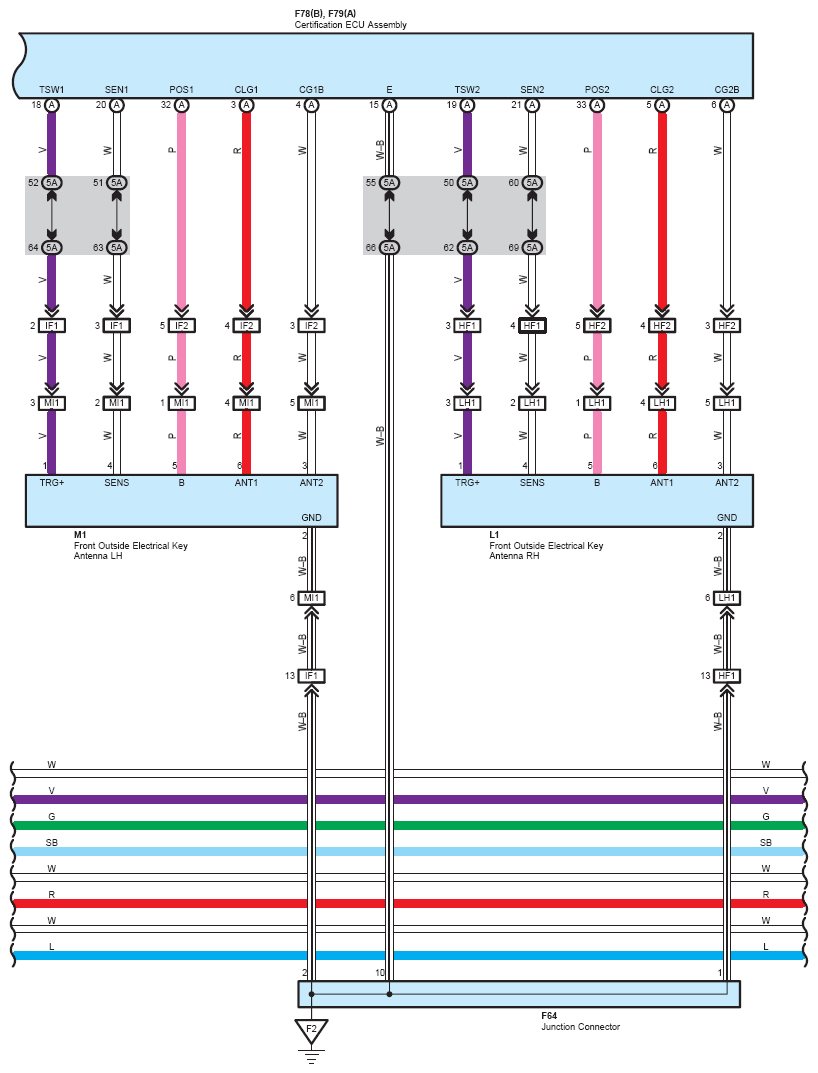

Fig 12: Smart Key System Wiring Diagram (12 Of 20)

G07111360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

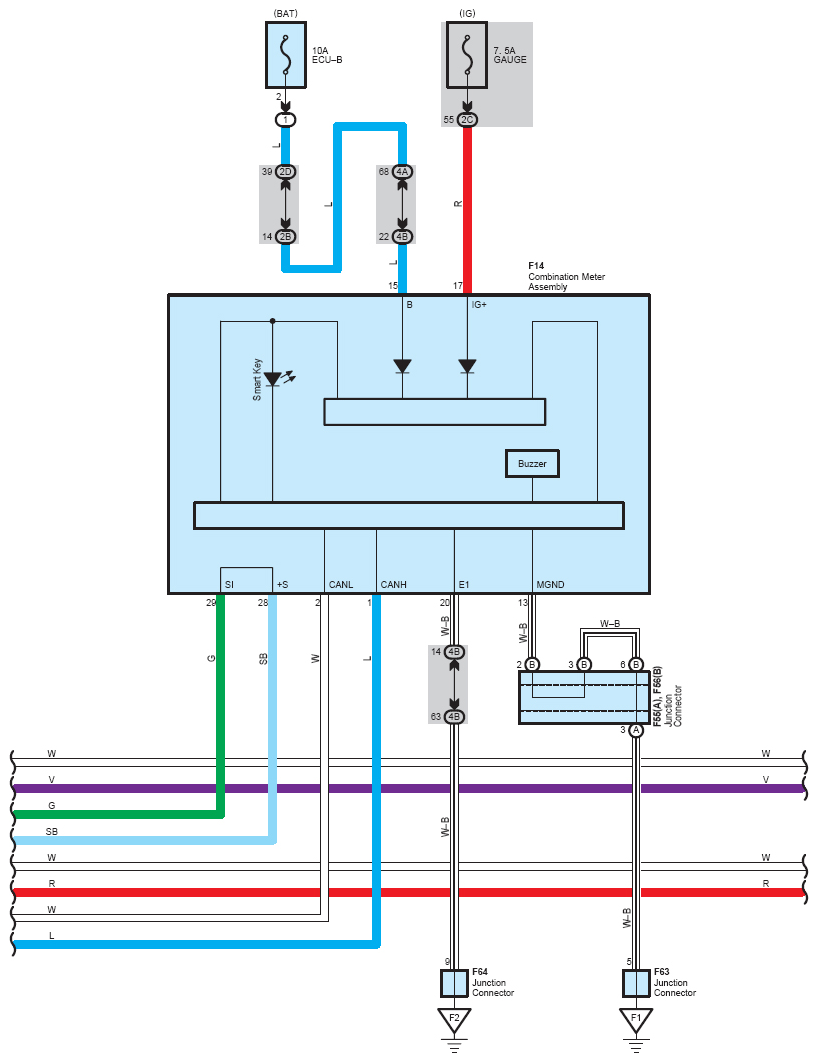

Fig 13: Smart Key System Wiring Diagram (13 Of 20)

G07111361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

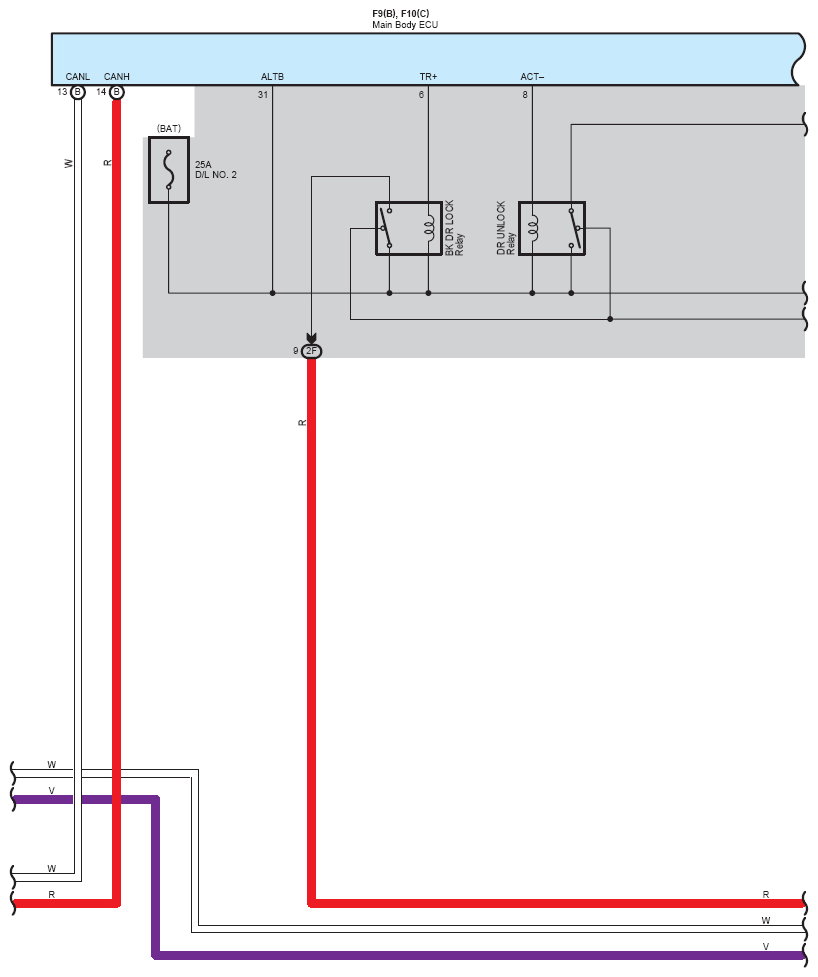

Fig 14: Smart Key System Wiring Diagram (14 Of 20)

G07111362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

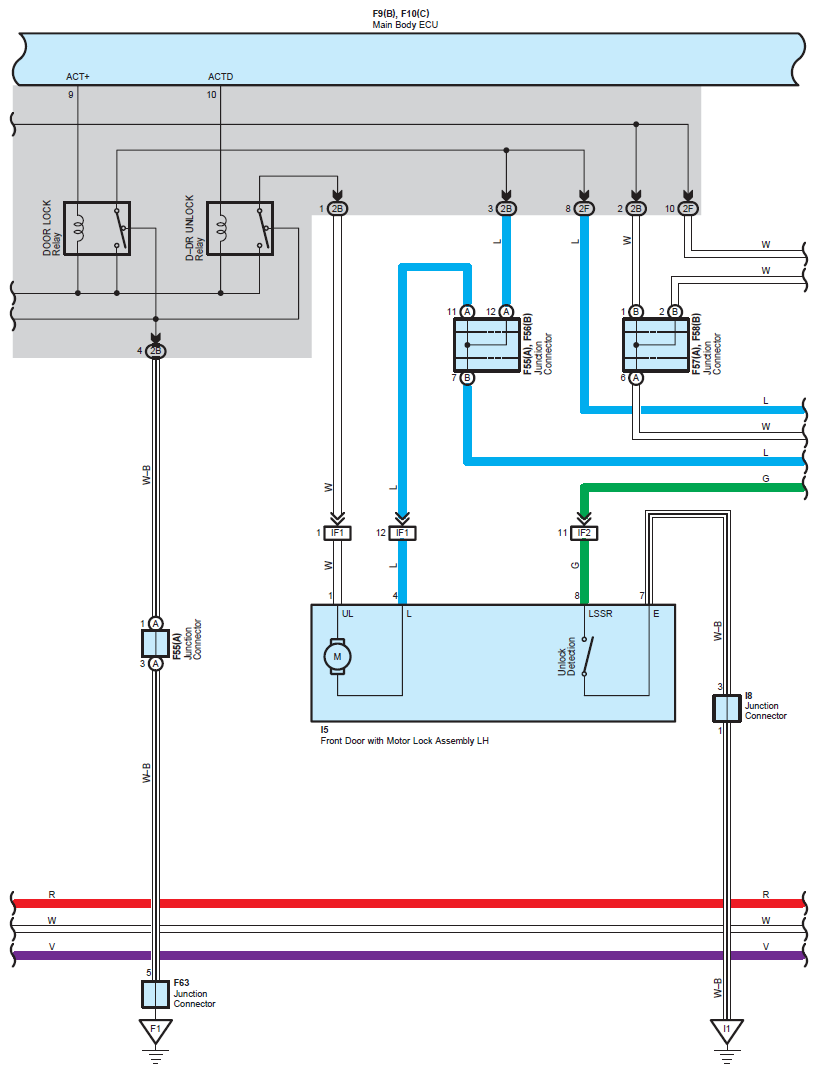

Fig 15: Smart Key System Wiring Diagram (15 Of 20)

G07111363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

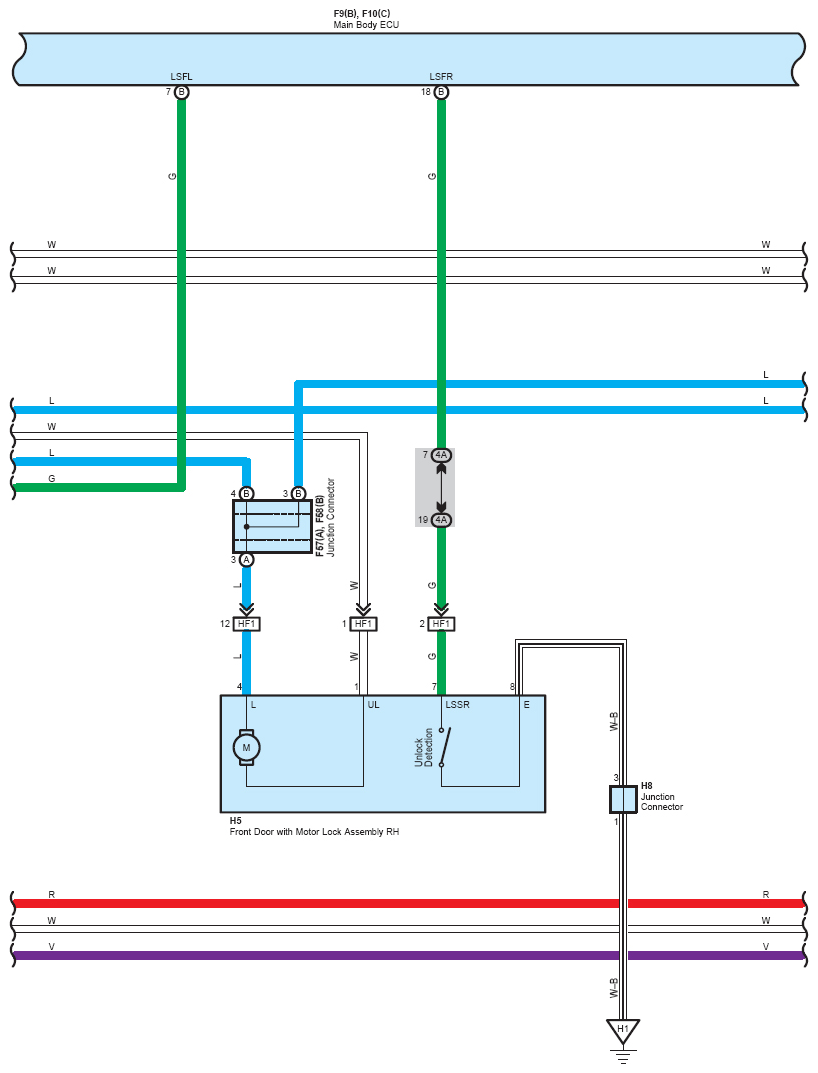

Fig 16: Smart Key System Wiring Diagram (16 Of 20)

G07111364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

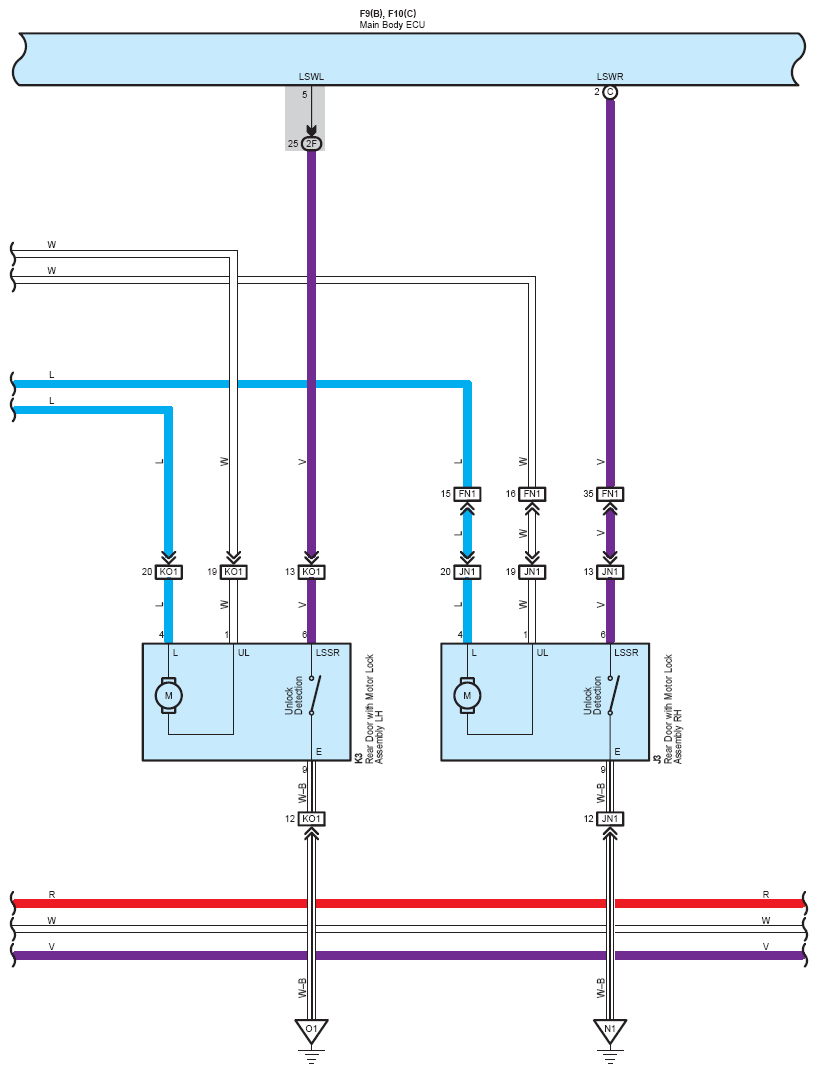

Fig 17: Smart Key System Wiring Diagram (17 Of 20)

G07111365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

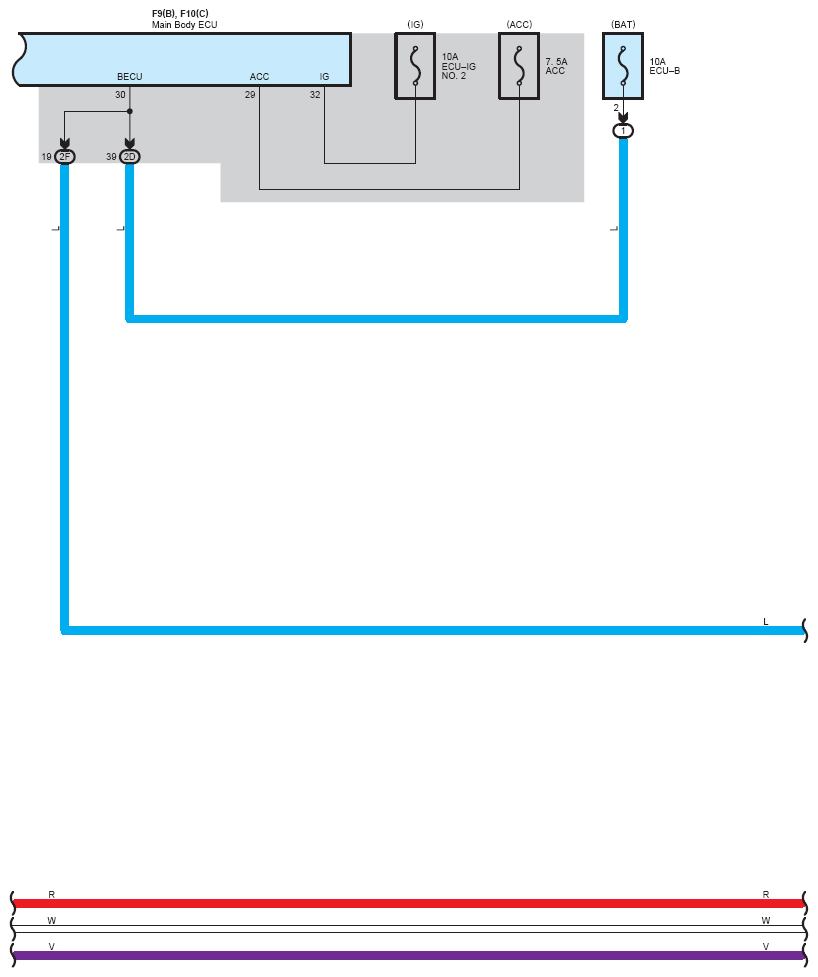

Fig 18: Smart Key System Wiring Diagram (18 Of 20)

G07111366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

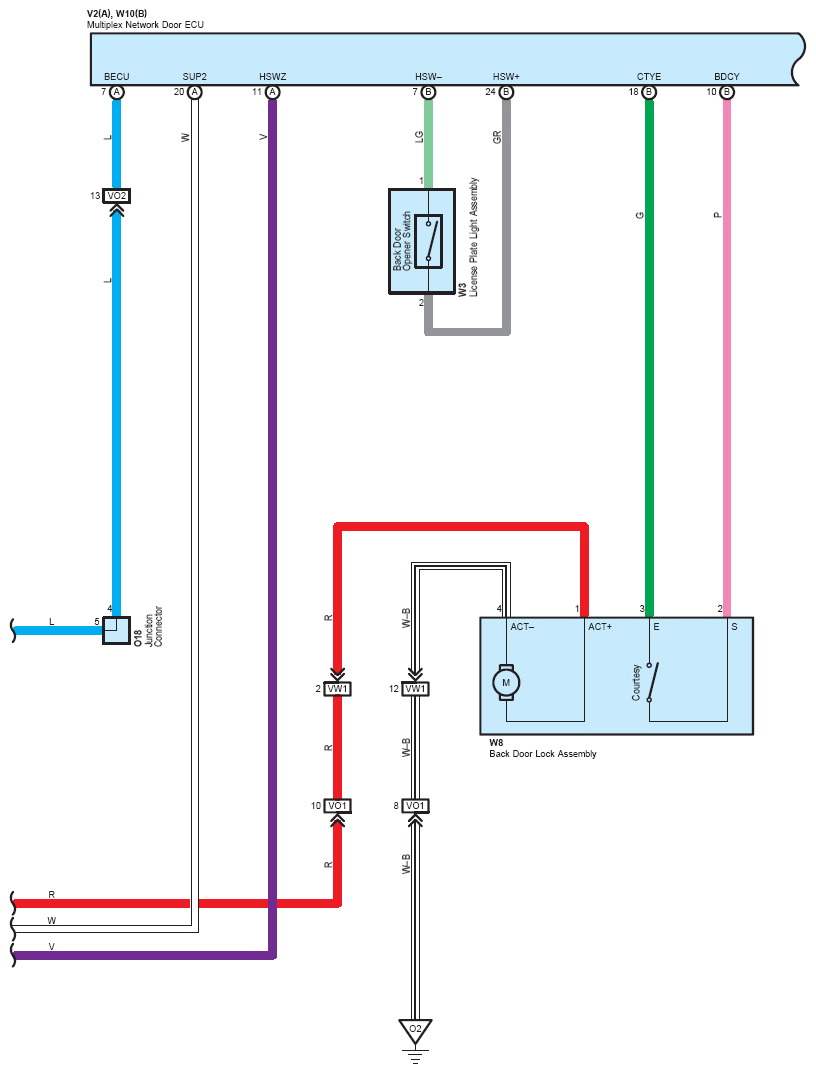

Fig 19: Smart Key System Wiring Diagram (19 Of 20)

G07111367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

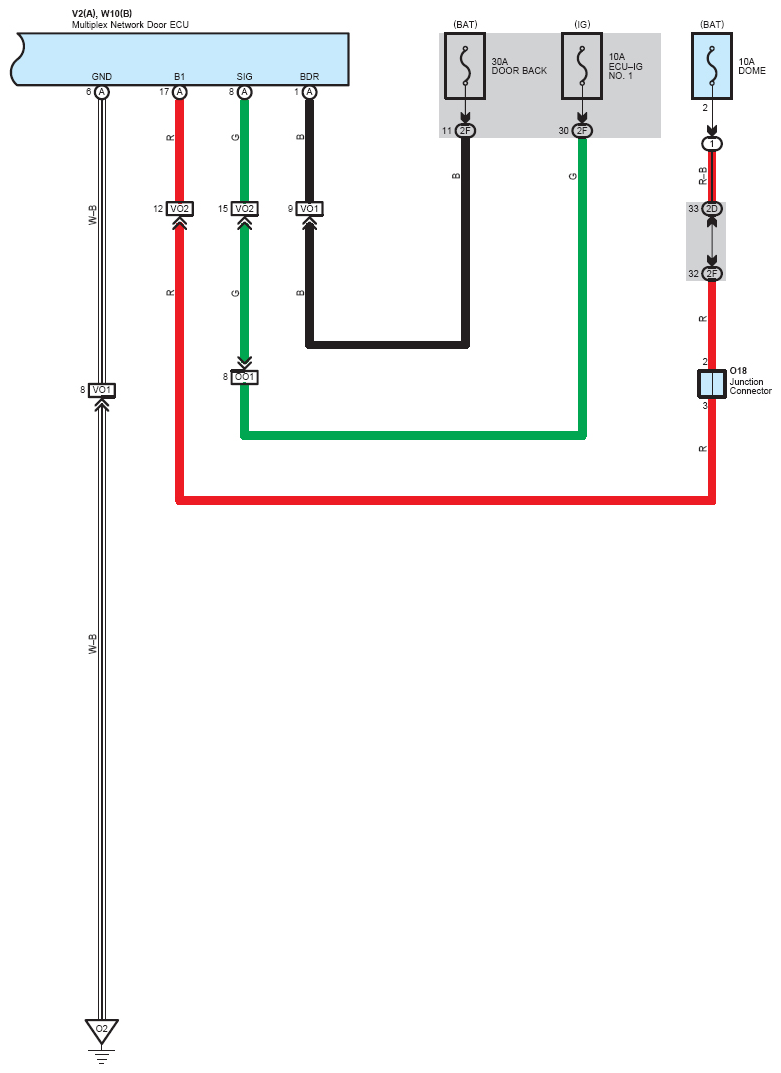

Fig 20: Smart Key System Wiring Diagram (20 Of 20)

G07111368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
