Yaw Rate Sensor Communication Stop Mode (FROM 12/2010): Procedure

1. Turn the ignition switch off.

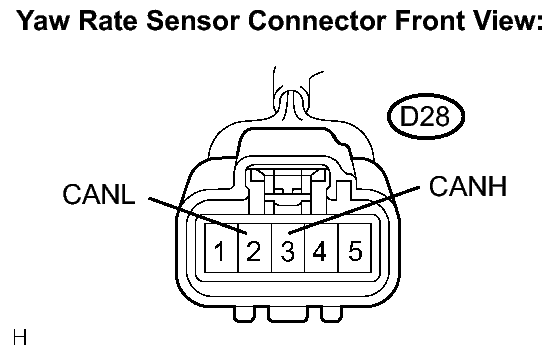

   Fig 1: Identifying Yaw Rate Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the yaw rate sensor connector (D28).
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified value
   D28-2 (CANL) - D28-3 (CANH)	Ignition switch off	54 to 69 Ω

NG → REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

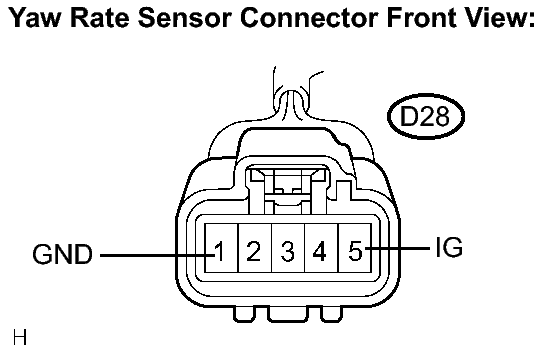

   Fig 2: Identifying Yaw Rate Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   D28-1 (GND) - Body ground	Always	Below 1 Ω

2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   D28-5 (IG) - Body ground	Ignition switch ON	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
