Yaw Rate Sensor Communication Stop Mode (TO 12/2010): Wiring Diagram

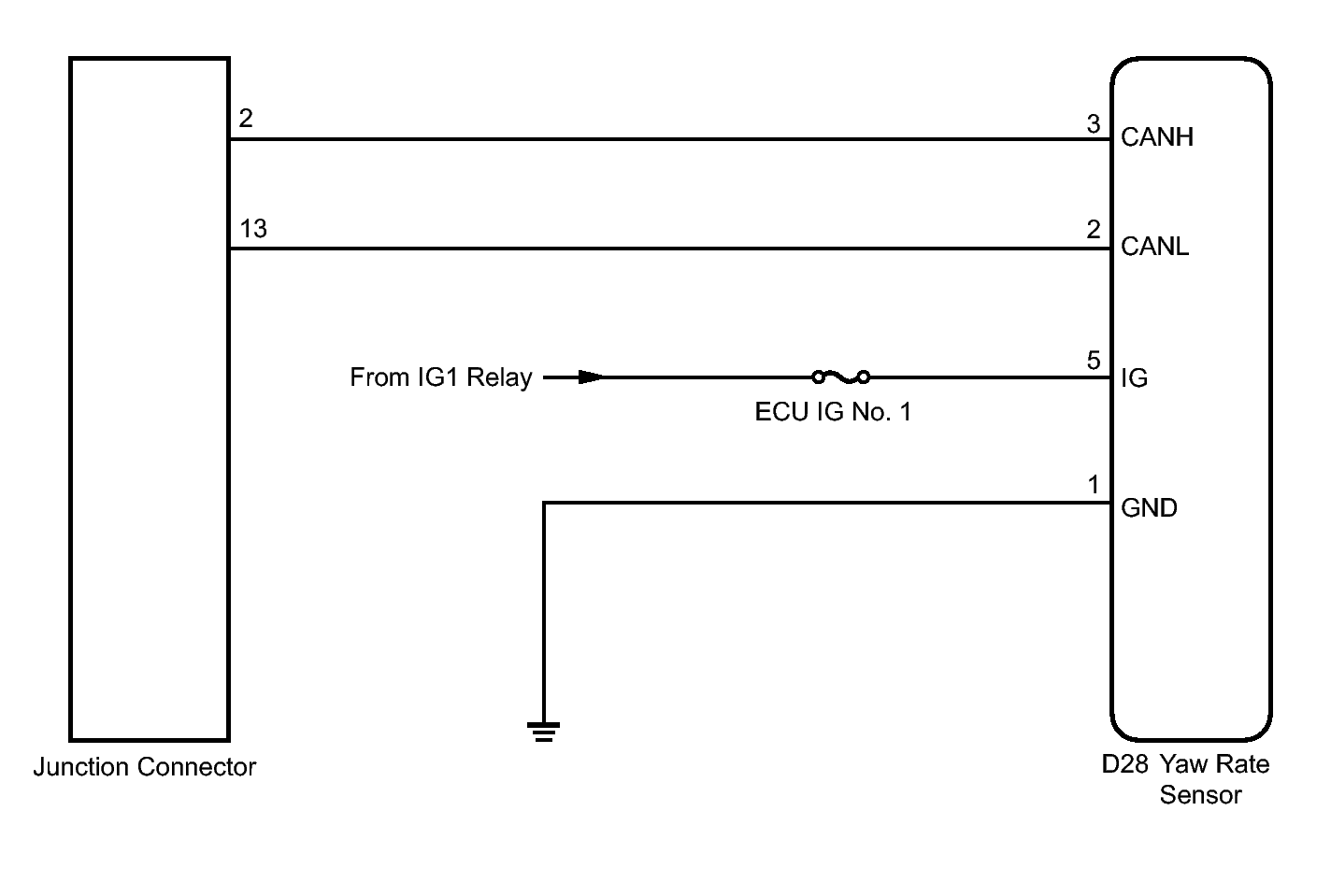

Fig 1: Yaw Rate Sensor - Wiring Diagram
GTY299731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
