Sound Signal Circuit between Navigation Receiver Assembly and Multi-media Interface ECU (FROM 12/2010): Wiring Diagram

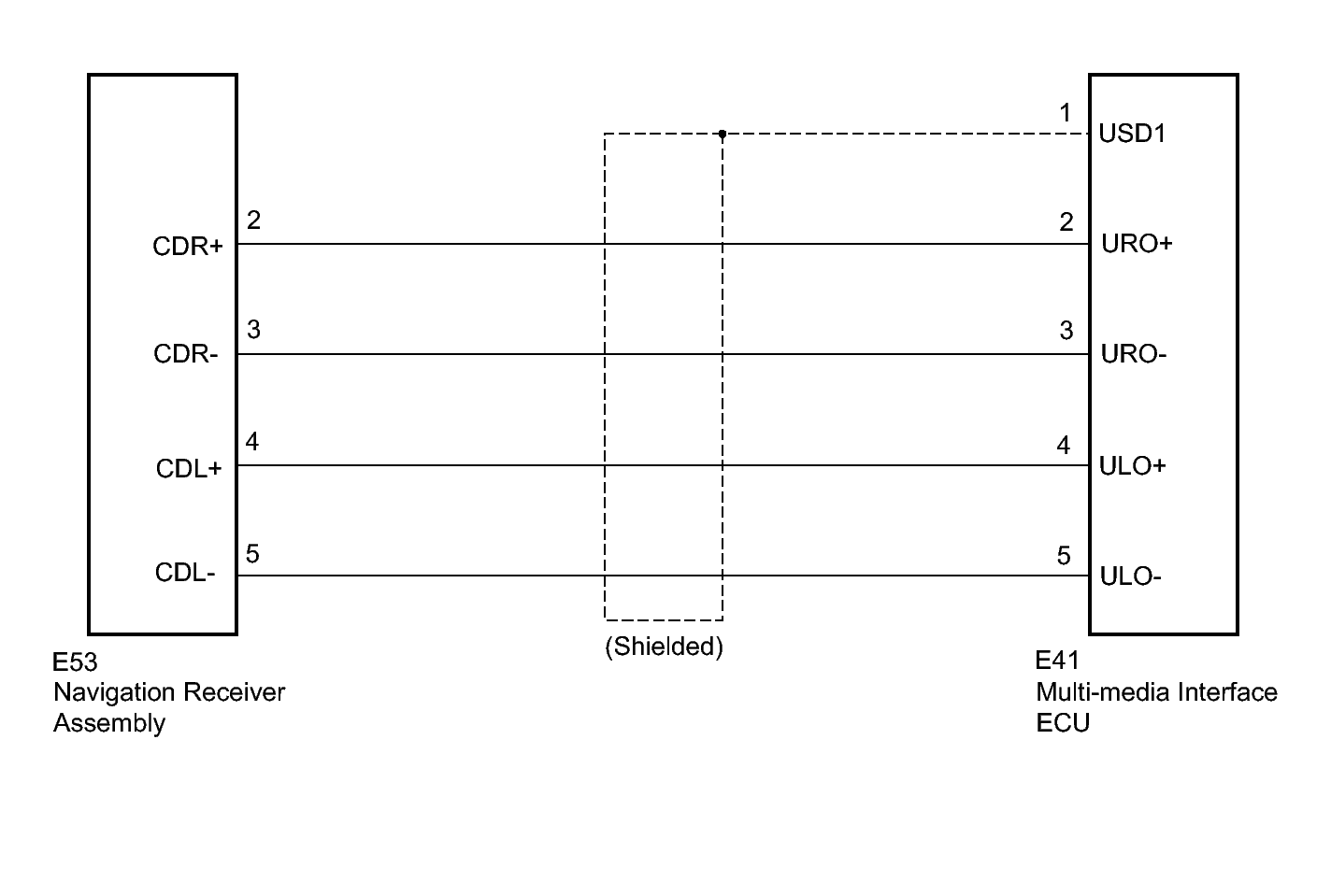

Fig 1: Sound Signal Circuit Between Navigation Receiver Assembly And Multi-Media Interface ECU - Wiring Diagram
GTY303591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
