Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier (TO 12/2010): Wiring Diagram

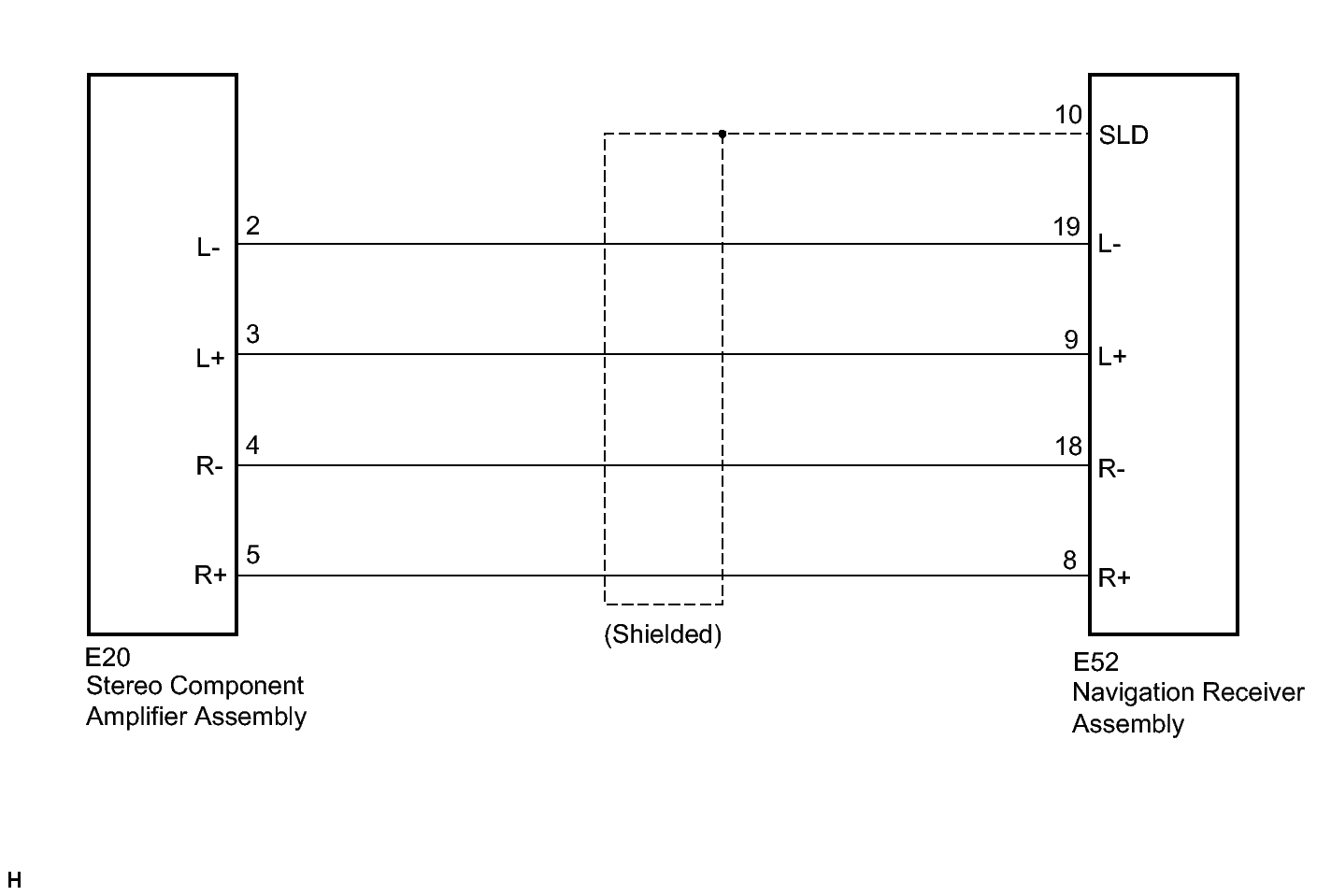

Fig 1: Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier - Wiring Diagram
GTY305229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
