Driving Position Memory Switch Circuit (w/ Memory)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driving Position Memory Switch Circuit (w/ Memory): Wiring Diagram

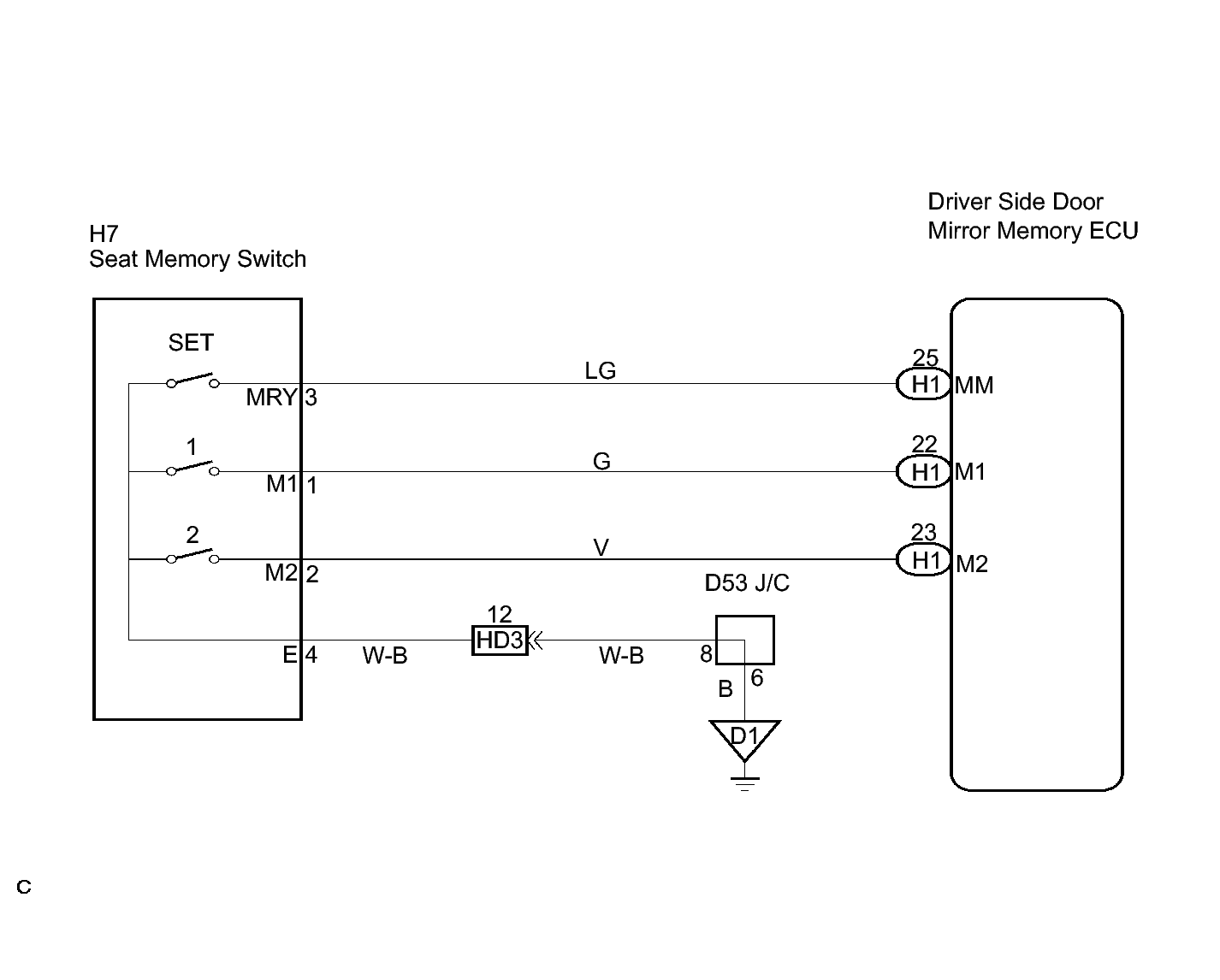

Fig 1: Driving Position Memory Switch Circuit (With Memory) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
