DTC P0115: Engine Coolant Temperature Circuit Malfunction (TO 12/2010); DTC P0117: Engine Coolant Temperature Circuit Low Input (TO 12/2010); DTC P0118: Engine Coolant Temperature Circuit High Input (TO 12/2010): Wiring Diagram

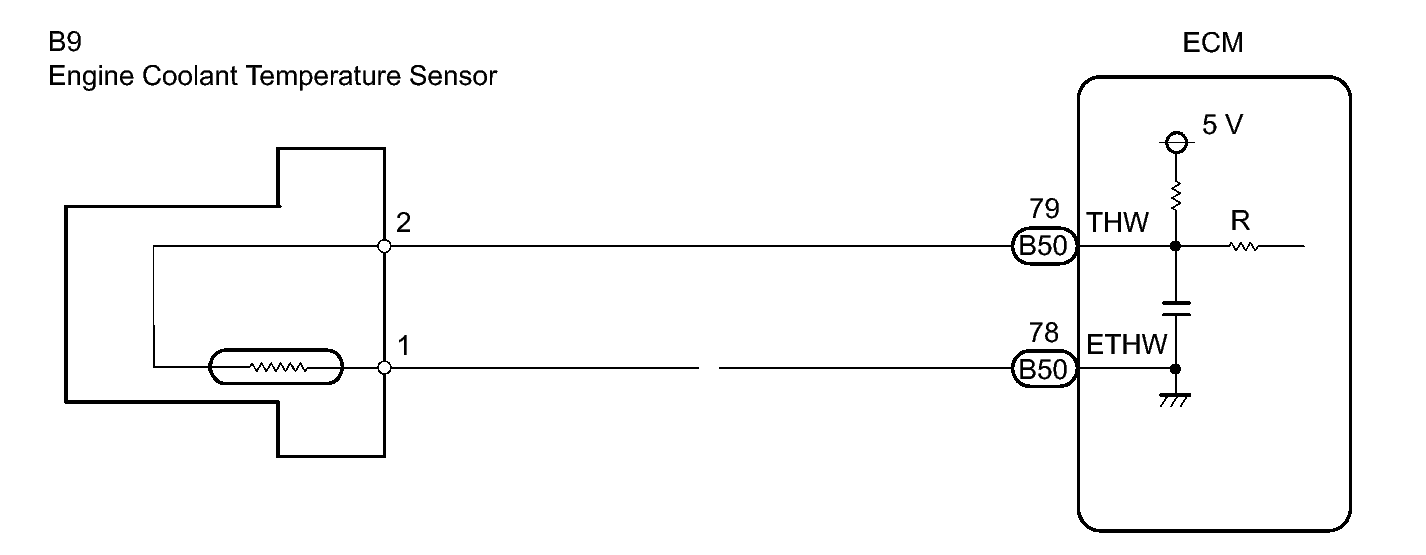

Fig 1: Engine Coolant Temperature Sensor - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
