SFI System
>>
DTC P0420: Catalyst System Efficiency Below Threshold (Bank 1) (TO 12/2010); DTC P0430: Catalyst System Efficiency Below Threshold (Bank 2) (TO 12/2010)
>>
Catalyst Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Catalyst Location

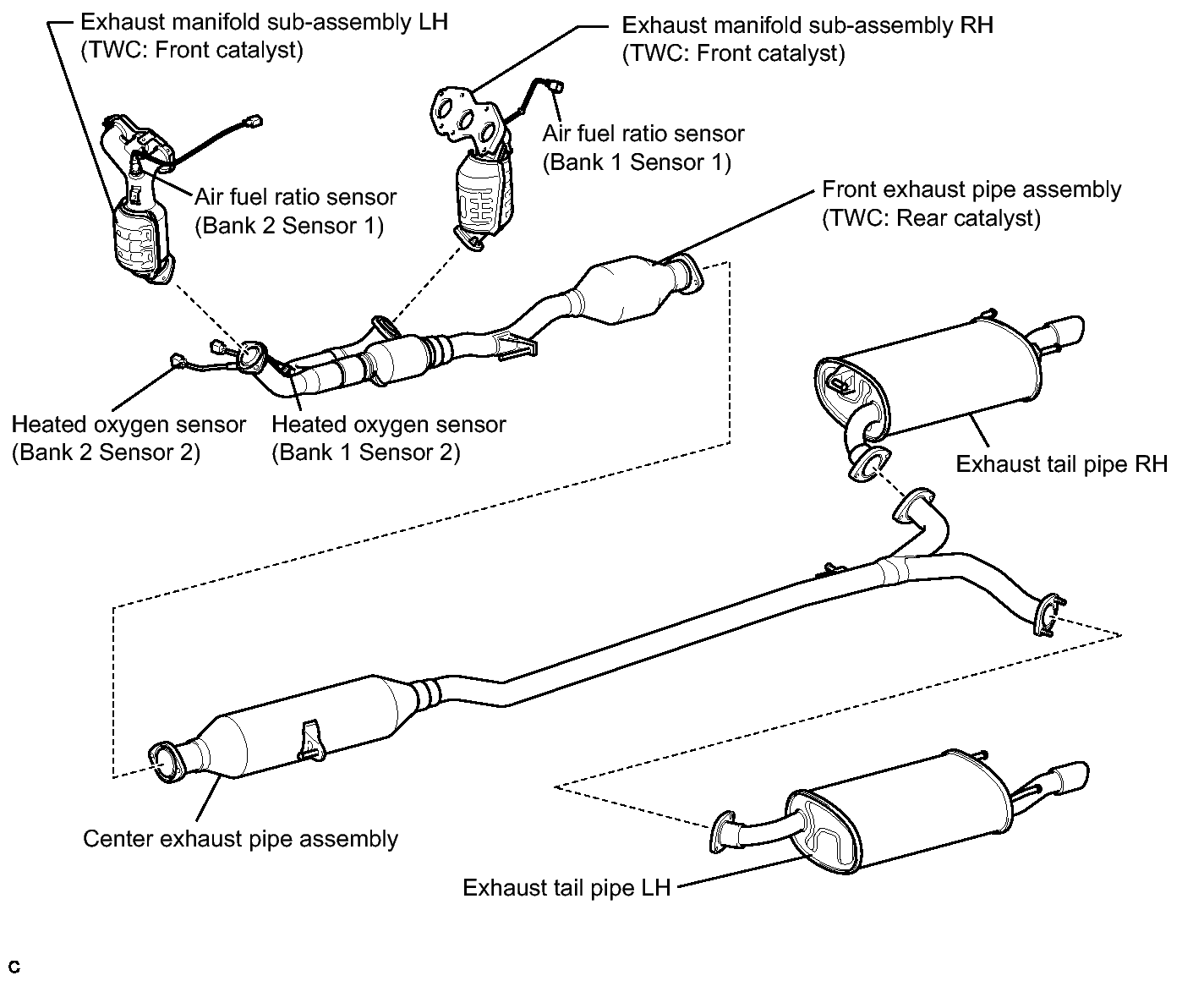

Fig 1: Identifying Catalyst Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
