Confirmation Driving Pattern

P0504:

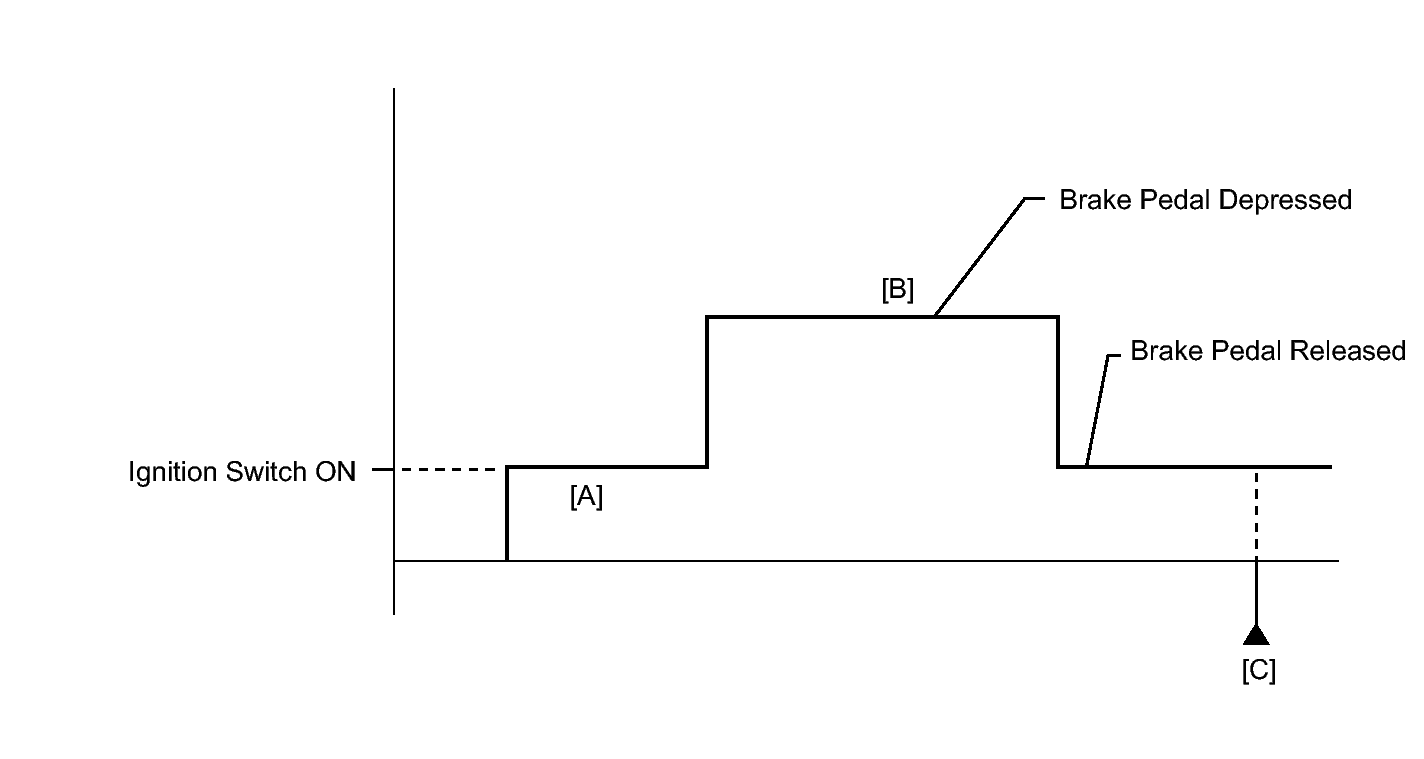

Fig 1: View Of Ignition Switch With Brake Pedal Driving Pattern Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR .
4. Turn the ignition switch off and wait for 30 seconds.
5. Turn the ignition switch to ON and turn the Techstream on [A].
6. Depress and release the brake pedal [B].
7. Enter the following menus: Powertrain / Engine / Trouble Codes.
8. Read the DTCs [C].
9. If a DTC is output, the system is malfunctioning.

   HINT:

   If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
11. Input the DTC: P0504.
12. Check the DTC judgment result.

    Techstream Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions
    UNKNOWN	Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows INCOMPLETE or UNKNOWN, perform step [B] again.
13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
14. Check the judgment result.

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
15. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR .

    HINT:

    • If a permanent DTC is output, the system is malfunctioning.
    • If no permanent DTC is output, the system is normal.

P0724:

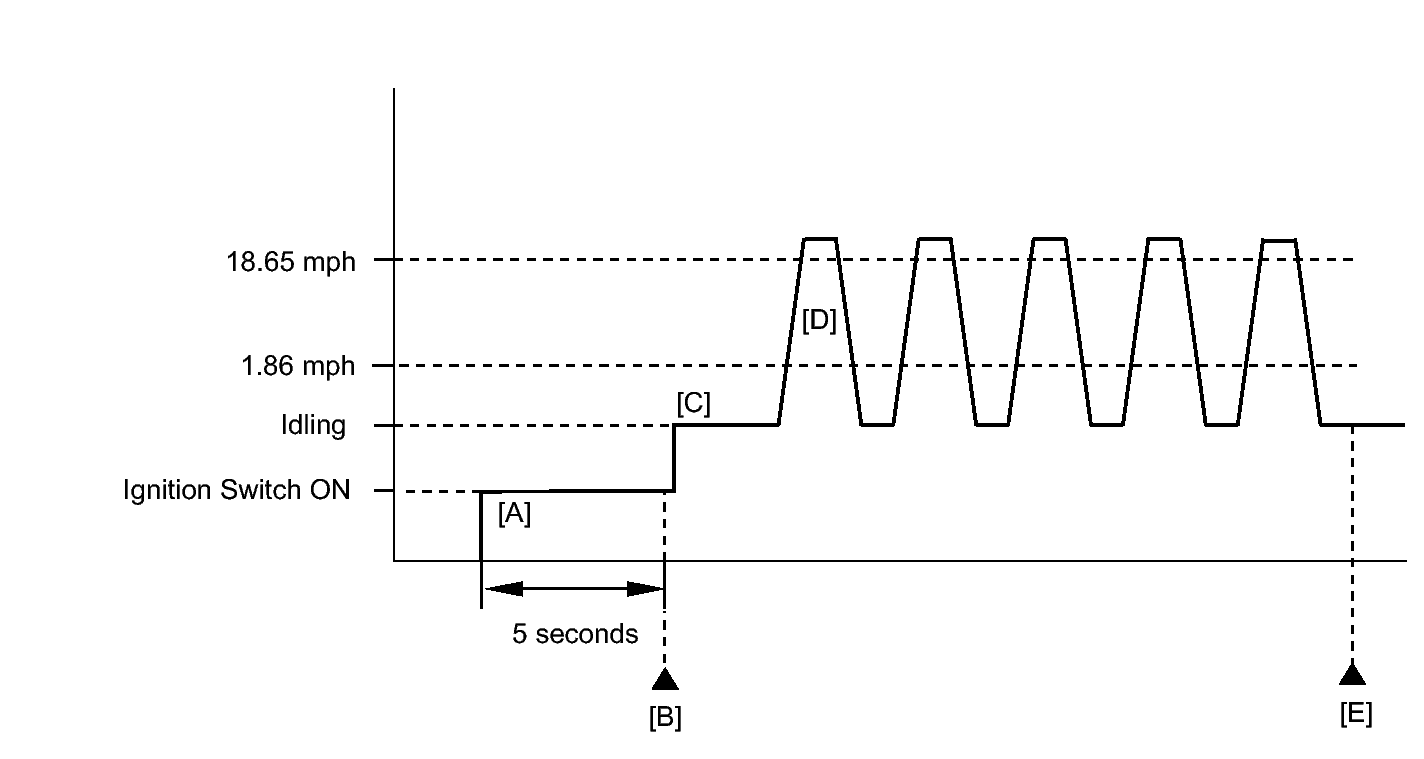

Fig 2: View of DTC P0724 Code Graph Results

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR .
4. Turn the ignition switch off and wait for 30 seconds.
5. Turn the ignition switch to ON and turn the Techstream on [A].
6. Wait 5 seconds after clear the DTCs.
7. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
8. Read the pending DTCs [B].
9. If a pending DTC is output, the system is malfunctioning.

   HINT:

   If a pending DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
11. Input the DTC: P0724.
12. Check the DTC judgment result.

    Techstream Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions
    UNKNOWN	Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    WARNING:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [C] through [E].
13. Start the engine [C].
14. Accelerate the vehicle to 18.65 mph (30 km/h) or more, depress the brake pedal and decelerate the vehicle to 1.86 mph (3 km/h) or less [D]. Repeat step [D] 5 times.
15. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
16. Check the DTC judgment result [E].

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
17. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR .

    HINT:

    • If a permanent DTC is output, the system is malfunctioning.
    • If no permanent DTC is output, the system is normal.
