Parts Location: Illustration

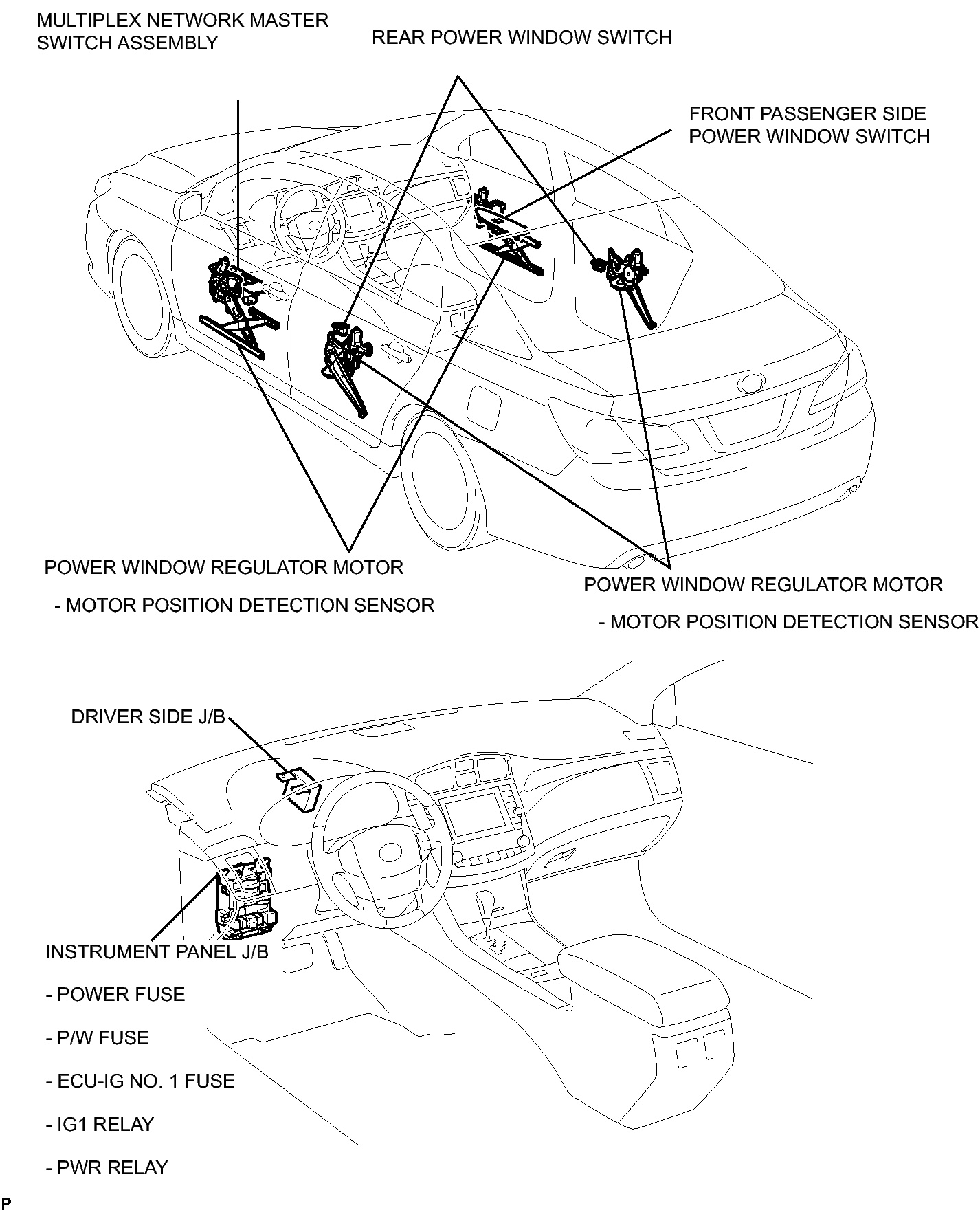

Fig 1: Identifying Power Window Control System Components Location
GTY295451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
