Push-Button Start, Engine Immobiliser and Steering Lock: Notes

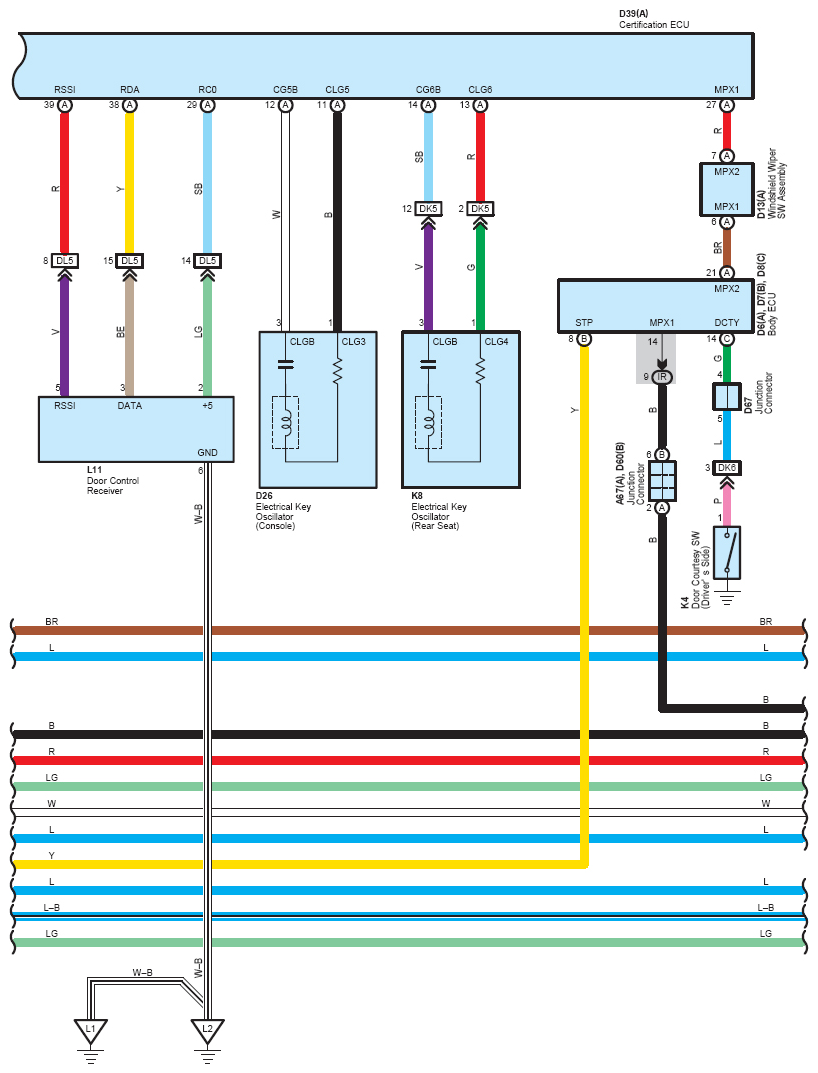

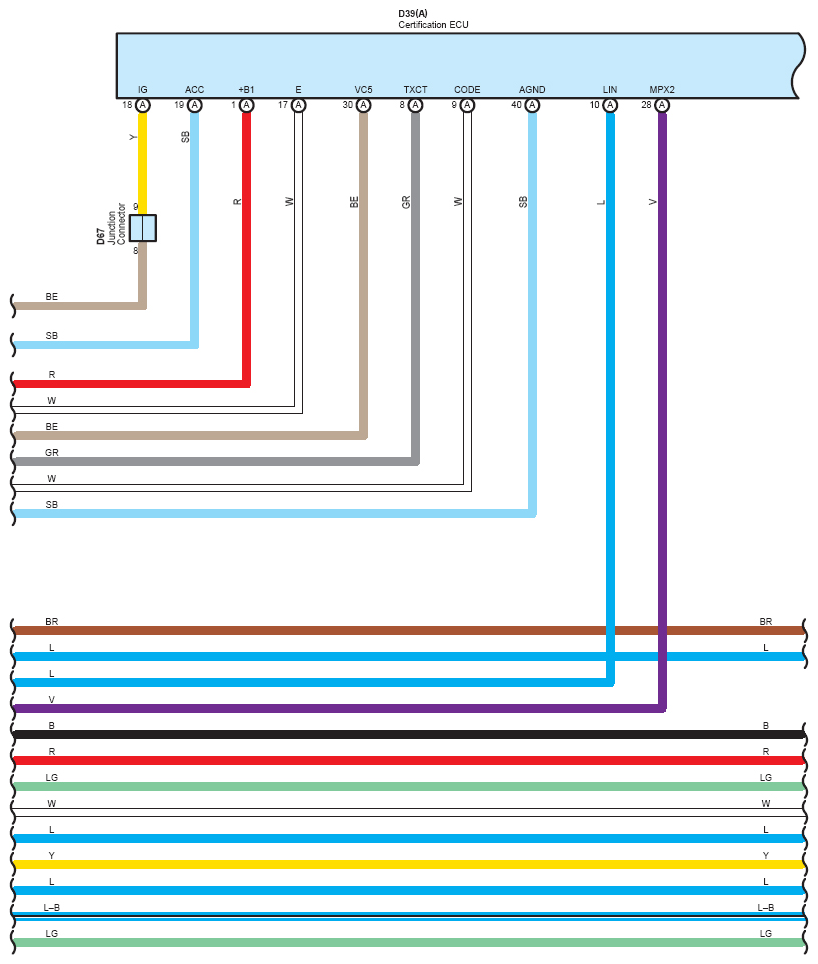

Fig 1: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

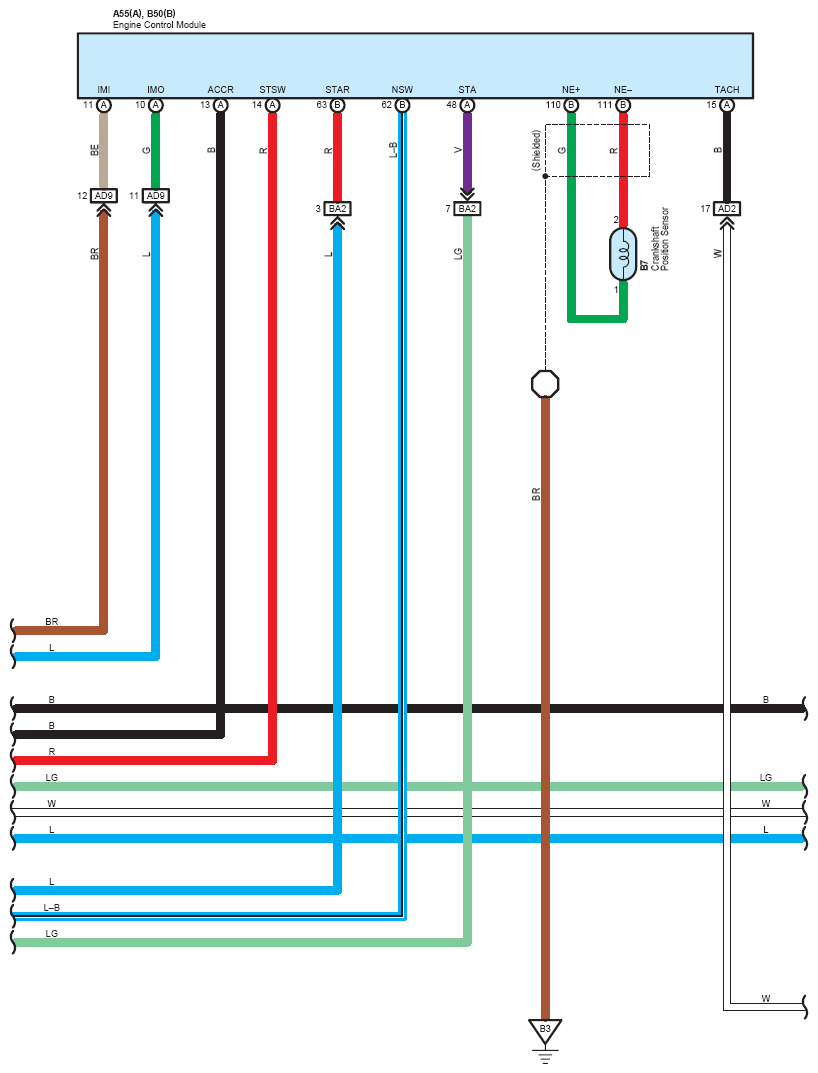

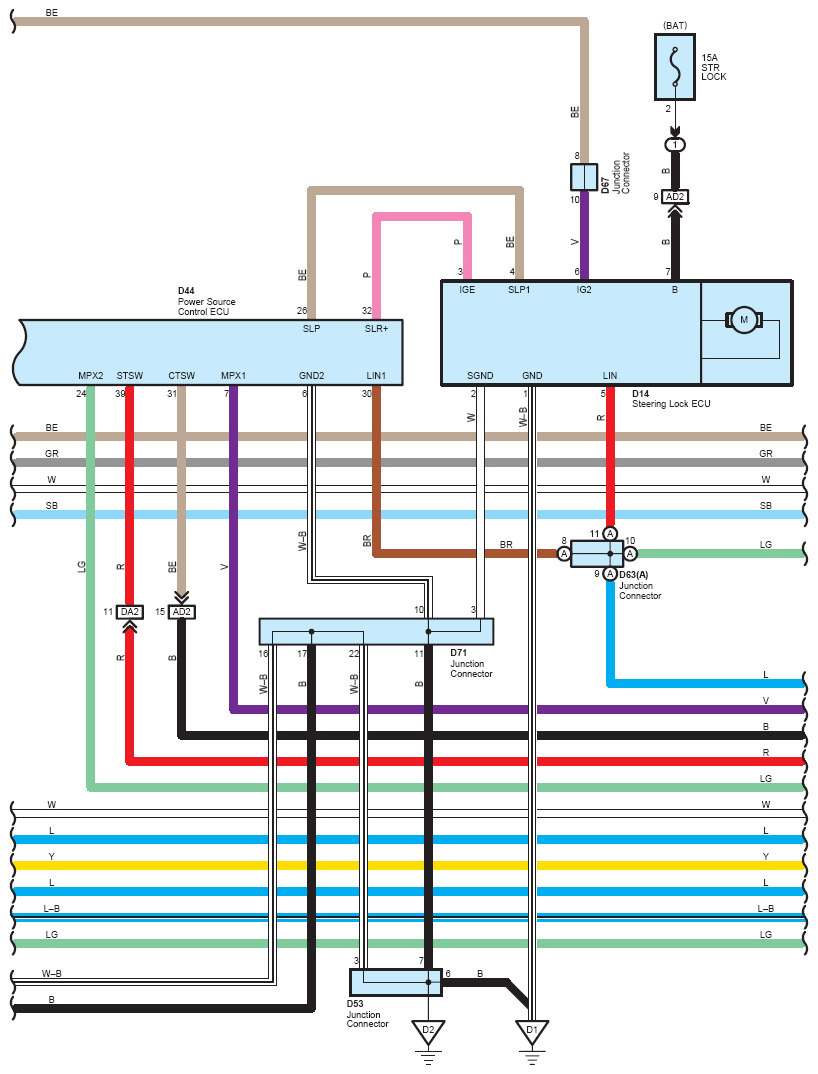

Fig 2: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

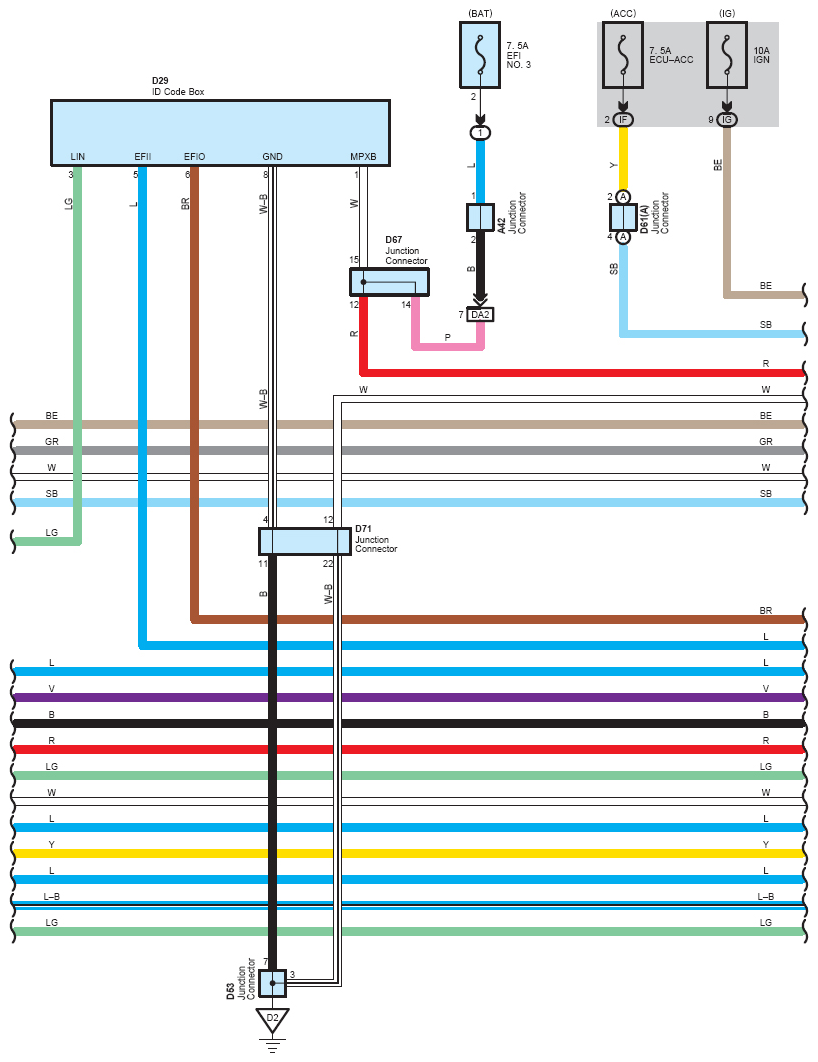

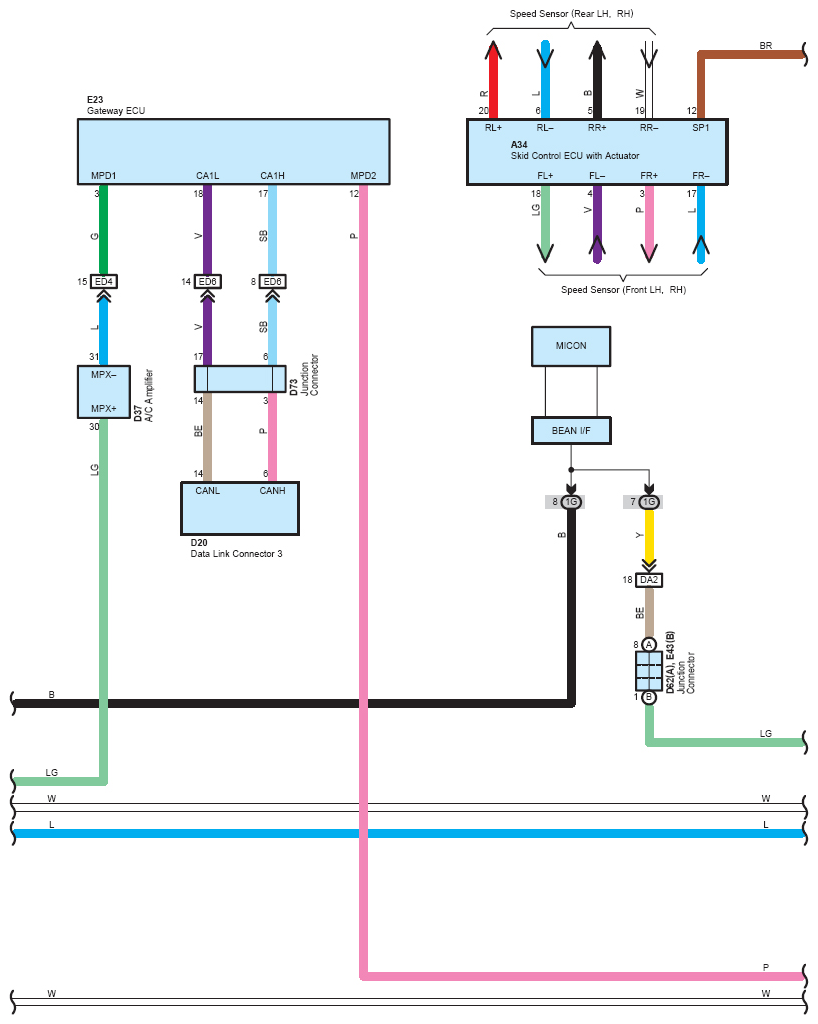

Fig 3: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

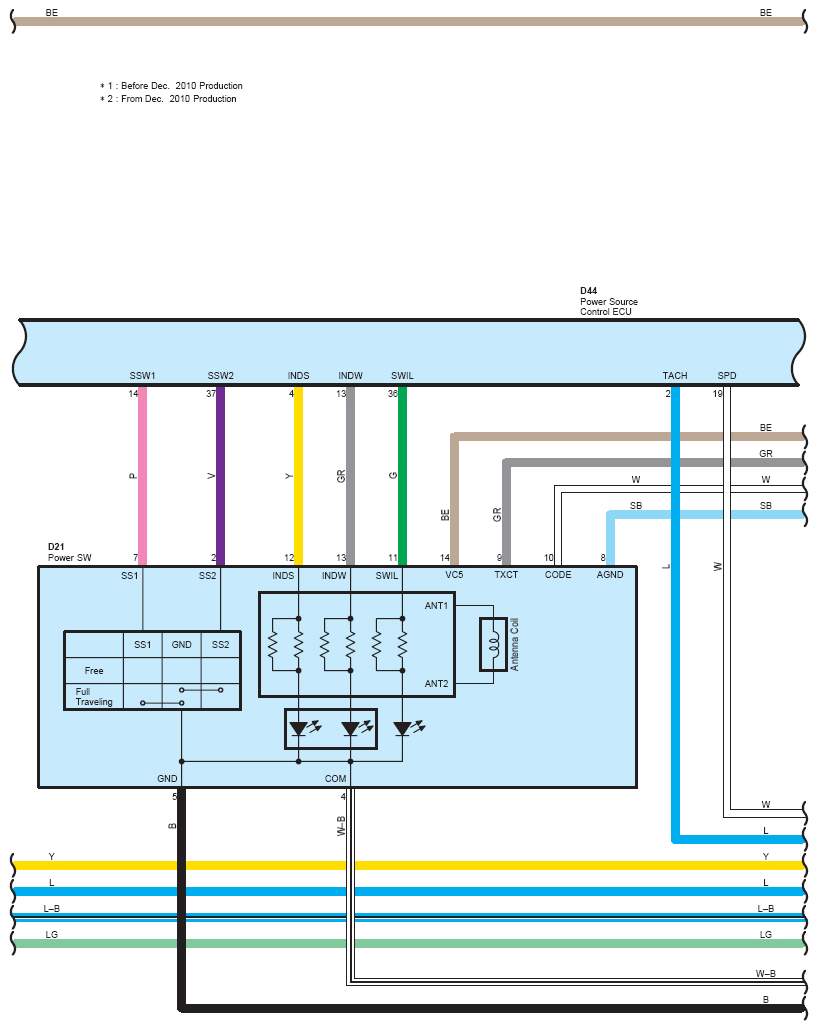

Fig 4: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

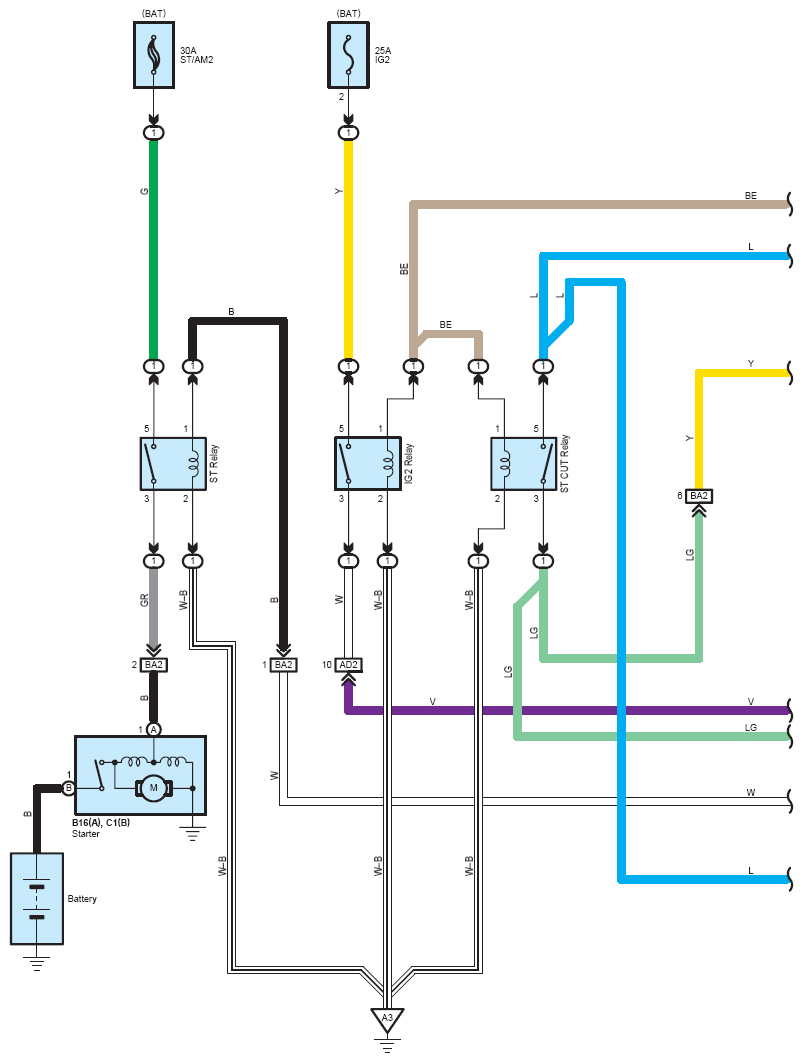

Fig 5: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

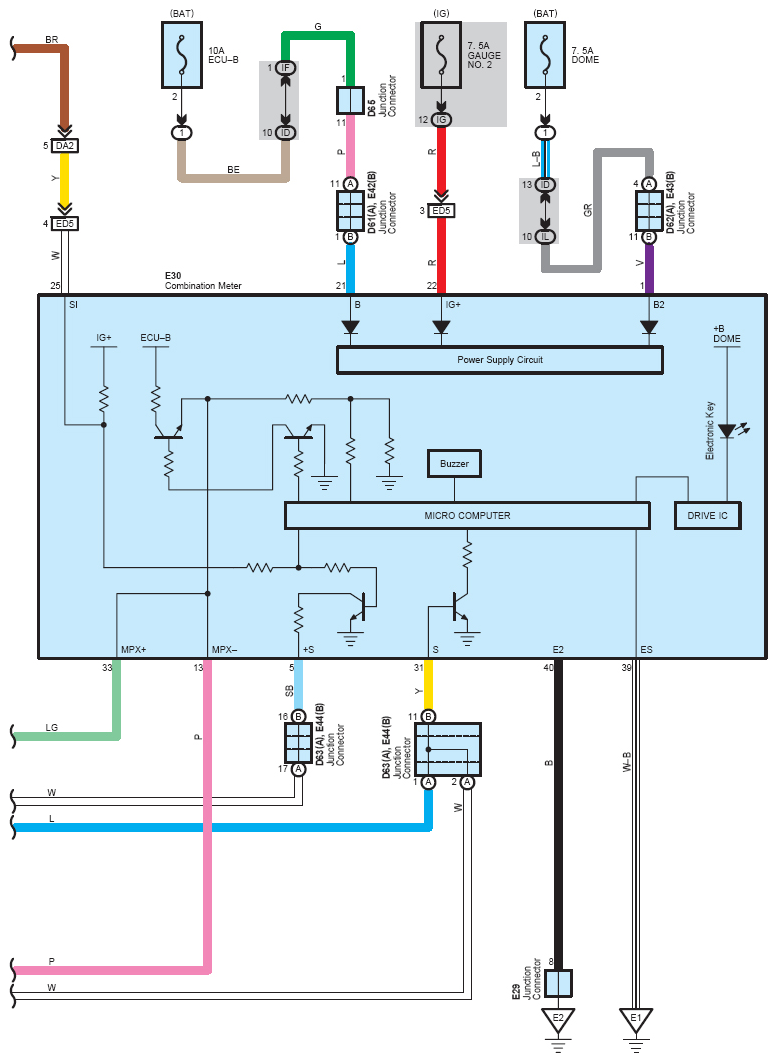

Fig 6: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

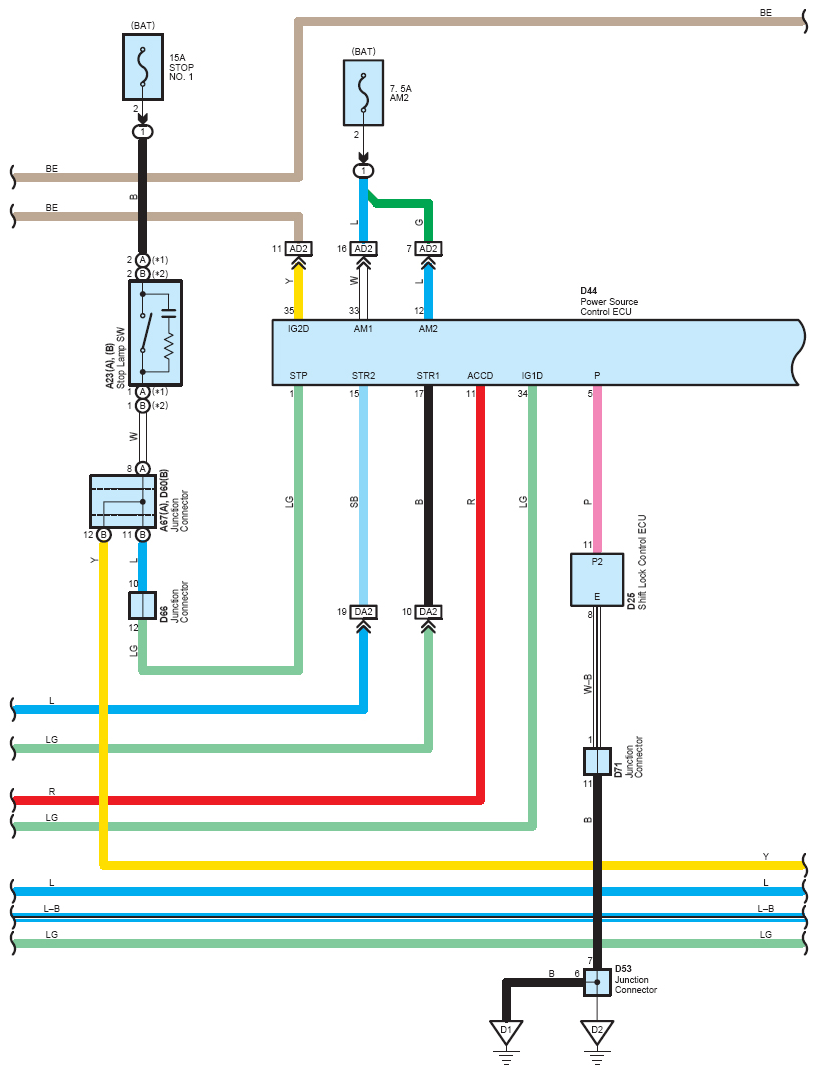

Fig 7: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

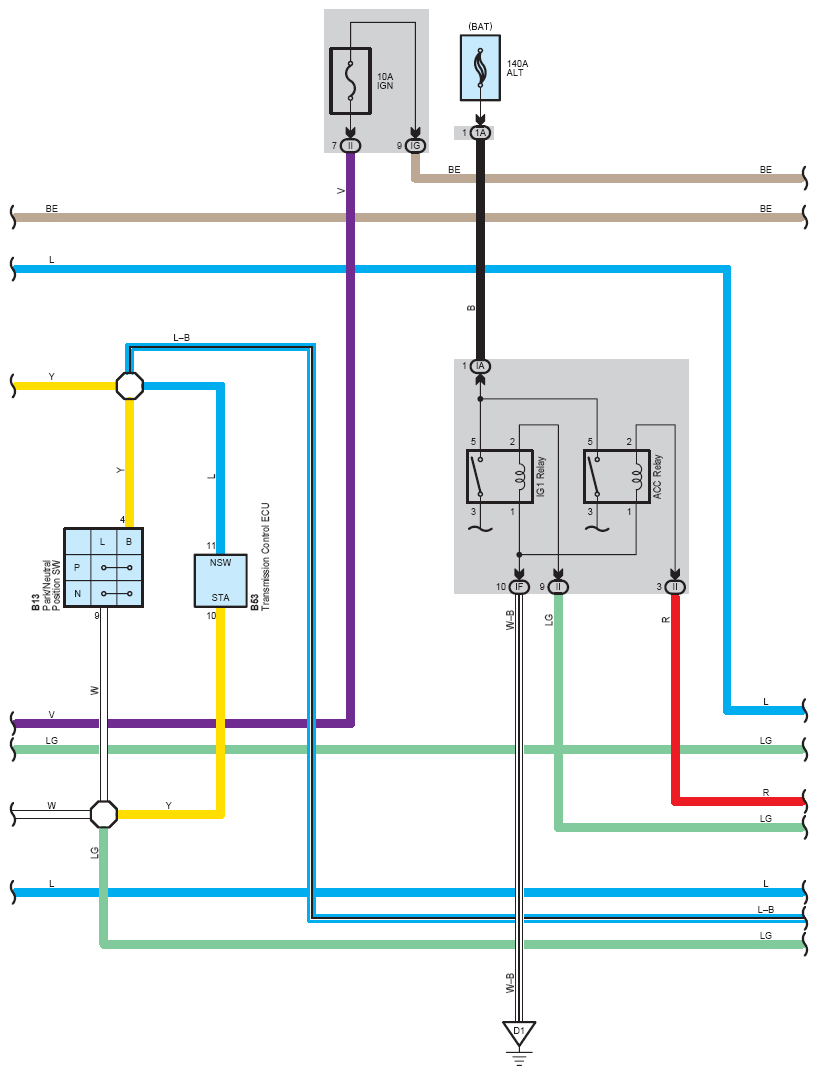

Fig 8: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (8 Of 11)

Fig 9: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (9 Of 11)

Fig 10: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (10 Of 11)

Fig 11: Push-Button Start, Engine Immobiliser And Steering Lock System Wiring Diagram (11 Of 11)
