Valve Body Assembly: Components: Illustration

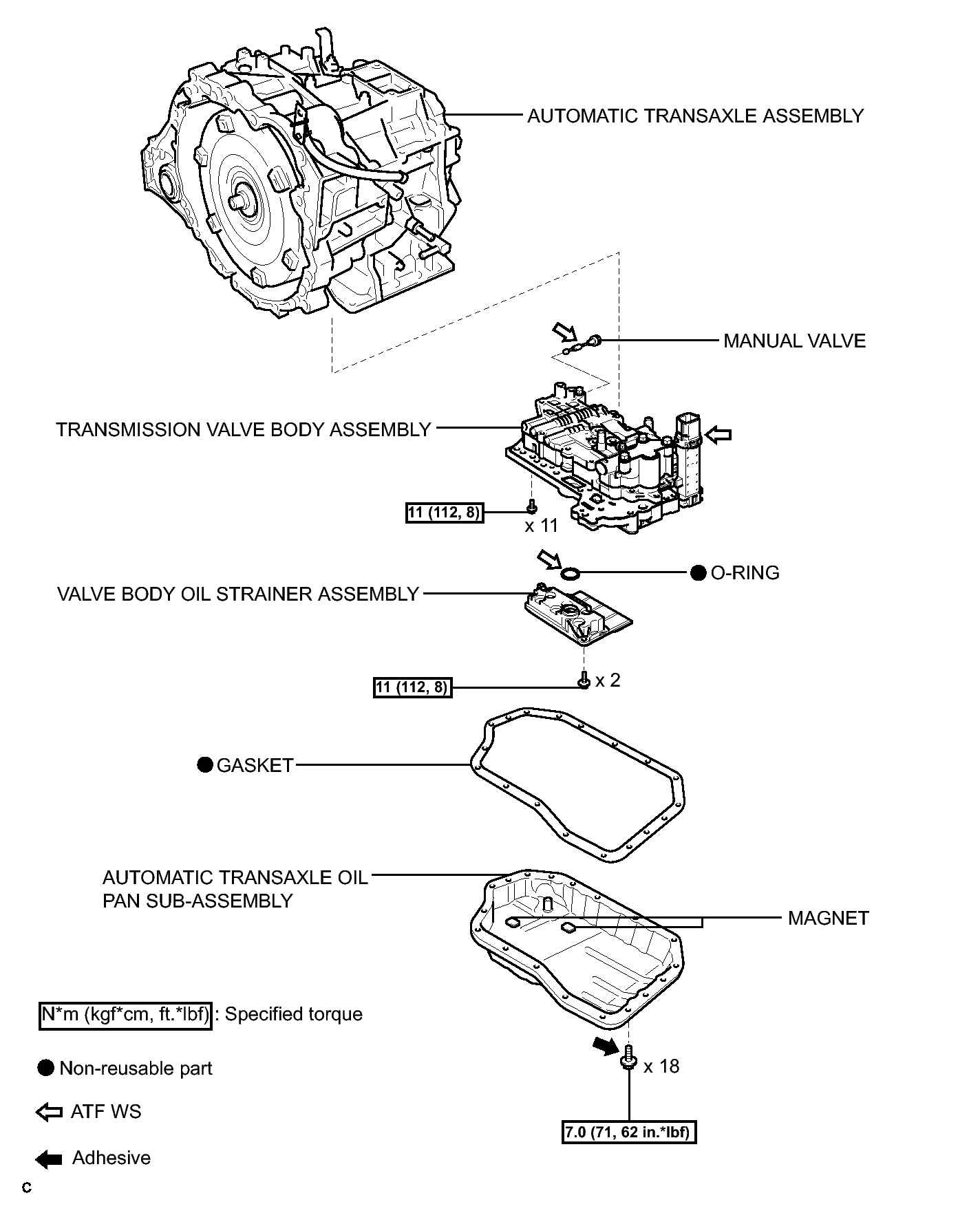

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications
GTY204558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
