Heated Oxygen Sensor: Removal: Removal

  1. REMOVE OXYGEN SENSOR
    1. Disconnect the 2 oxygen sensor connectors.

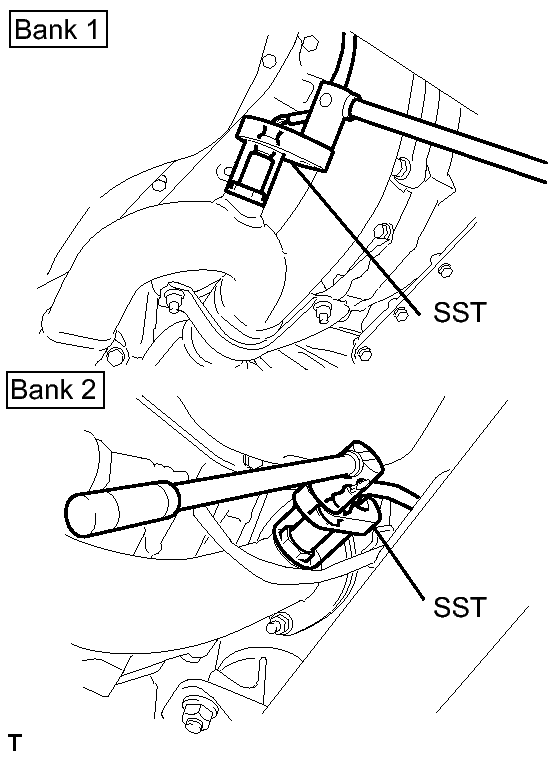

      Fig 1: Removing Oxygen Sensors
      GTY192381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 oxygen sensors from the front pipe assembly.
      • SST: 09224-00010
