ID Code Box Power Source Circuit: Procedure

1. Remove the EFI No. 1 fuse from the No. 1 engine room R/B.
2. Measure the resistance of the fuse.

   Standard resistance

   Below 1 Ω

NG → REPLACE FUSE

OK: Go to next step

1. Disconnect the E50 ID code box connector.

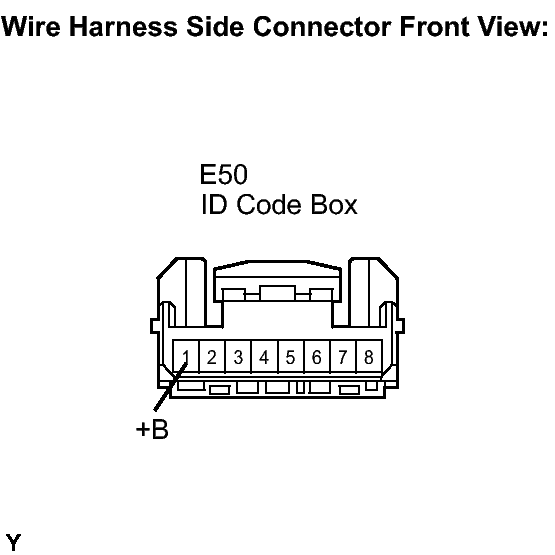

   Fig 1: Identifying E50 ID Code Box Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Specified Condition
   E50-1 (+B) - Body ground	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

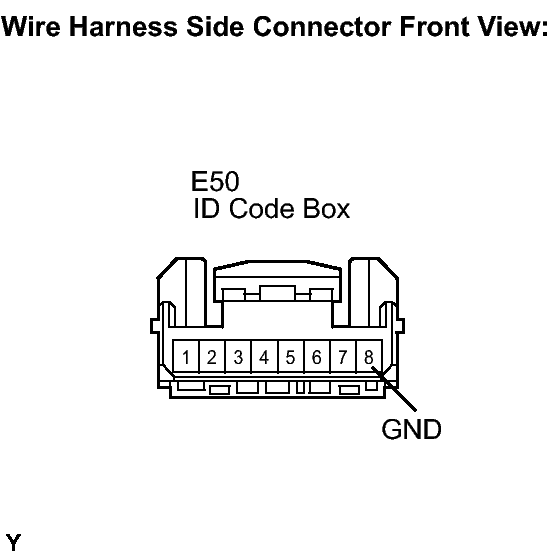

   Fig 2: Identifying E50 ID Code Box Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Specified Condition
   E50-8 (GND) - Body ground	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  PROBLEM SYMPTOMS TABLE
