Mute Signal Circuit between Navigation Receiver Assembly and Multi-media Interface ECU: Procedure

1. Measure the voltage according to the value(s) in the table below.
   Fig 1: Inspecting Multi-Media Interface ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F28-6 (MUT1) - Body ground	Ignition switch ACC, Satellite radio playing → Changing source	Above 3.5 V → Below 1 V

   TEXT IN ILLUSTRATION

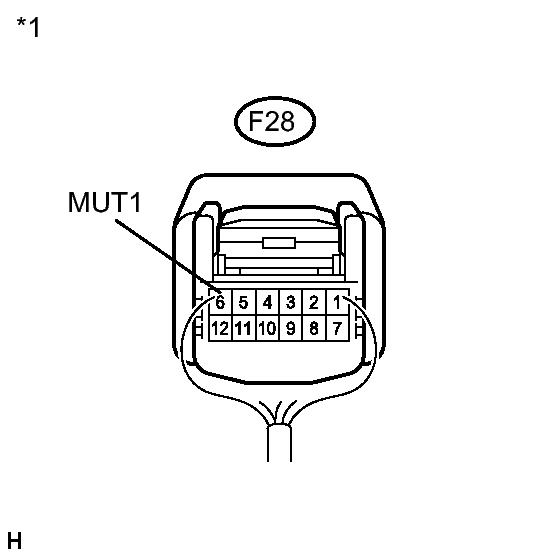

   *1	Component with harness connected (Multi-media Interface ECU)

NG → See step   2

OK → See step   4

1. Disconnect the navigation receiver assembly connector.
   Fig 2: View Of Wire Harness Connector To Navigation Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the multi-media interface ECU connector.
   Fig 3: View Of Wire Harness Connector To Multi-Media Interface ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F37-6 (MUTE) - F28-6 (MUT1)	Always	Below 1 Ω
   F37-6 (MUTE) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION

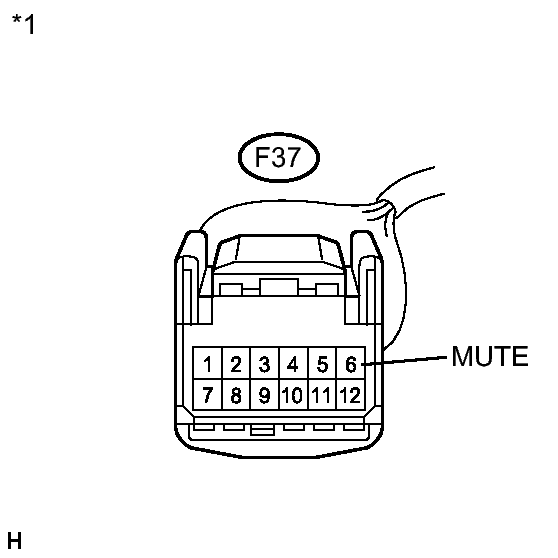

   *1	Front view of wire harness connector (to Navigation Receiver Assembly)

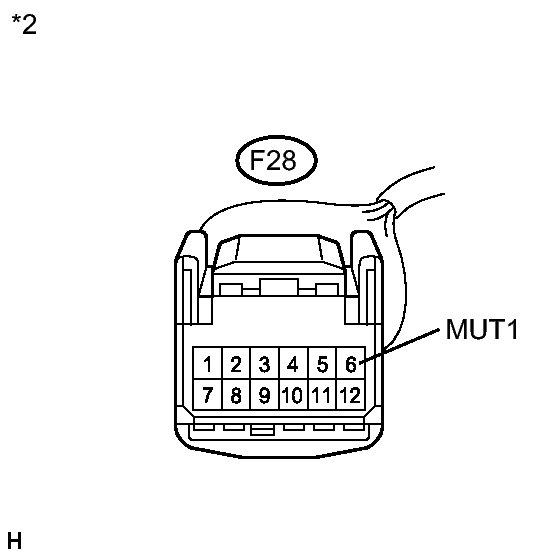

   *2	Front view of wire harness connector (to Multi-media Interface ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the multi-media interface ECU and check that it operates normally. Refer to REMOVAL .

   OK

   The navigation system operates normally.

NG → See step   5

OK → END
