Mute Signal Circuit between Stereo Component Tuner Assembly and Multi-media Interface ECU: Procedure
- INSPECT STEREO COMPONENT TUNER ASSEMBLY
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

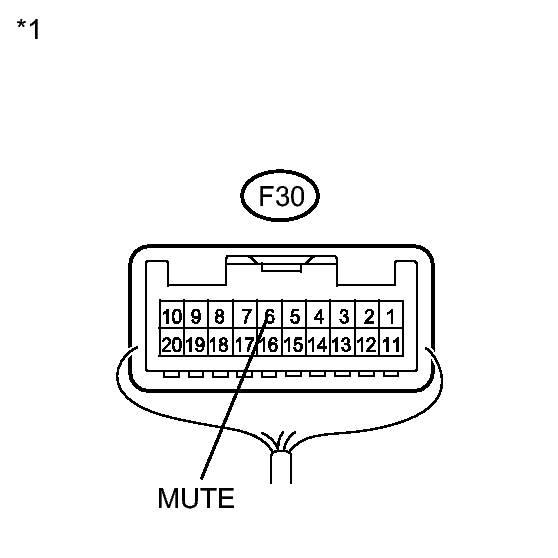

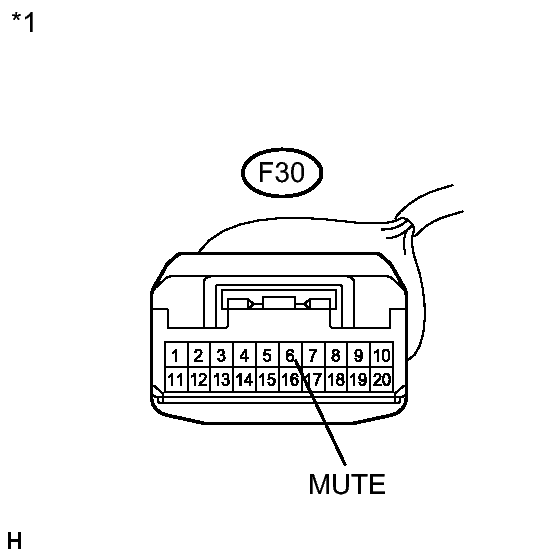

Tester Connection Condition Specified Condition F30-6 (MUTE) - Body ground Ignition switch ACC, USB audio system playing → Changing source Above 3.5 V → Below 1 V TEXT IN ILLUSTRATION*1 Component with harness connected
(Stereo Component Tuner Assembly)
NG → See step 2
OK → See step 4
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (STEREO COMPONENT TUNER ASSEMBLY - MULTI-MEDIA INTERFACE ECU)
- Disconnect the stereo component tuner assembly connector.
- Disconnect the multi-media interface ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F30-6 (MUTE) - F29-14 (MUT2) Always Below 1 Ω F30-6 (MUTE) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*1 Front view of wire harness connector

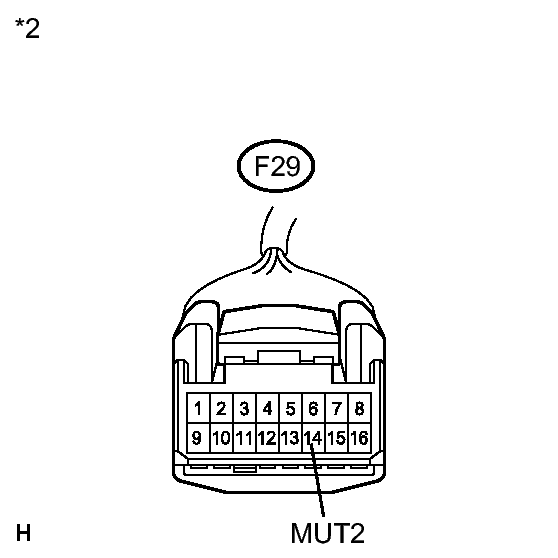

(to Stereo Component Tuner Assembly)*2 Front view of wire harness connector
(to Multi-media Interface ECU)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- REPLACE STEREO COMPONENT TUNER ASSEMBLY
- Replace the stereo component tuner assembly and check that it operates normally. Refer to REMOVAL
.
OK
The navigation system operates normally.
NG → See step 5
OK → END
- Replace the stereo component tuner assembly and check that it operates normally. Refer to REMOVAL
.
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
- REPLACE MULTI-MEDIA INTERFACE ECU. Refer to REMOVAL
