Portable Player cannot be Connected Manually/Automatically: Procedure

1. Display the "Audio Settings" screen.
2. Select "Select Portable Player".

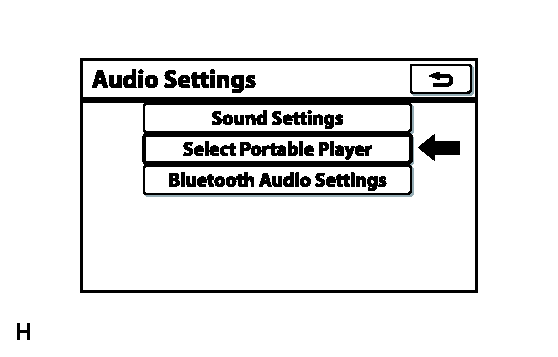

   Fig 1: Screen Display - Select Portable Player

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check if the portable player is registered as a connected device.
   Fig 2: Screen Display - Connected Device

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   If a cellular phone is used as a portable player, it must be registered independently from the registration that is performed for the hands free system.

   HINT:

   Only 2 portable players can be registered.

   Result

   Result	Proceed to
   The portable player is registered as a connected device.	A
   The portable player is not registered as a connected device.	B

B → REGISTER PORTABLE PLAYER AS CONNECTED DEVICE

A: Go to next step

1. Check the connection condition between the portable player and navigation receiver assembly.

   Result

   Result	Proceed to
   The portable player cannot be connected manually.	A
   The portable player cannot connect automatically.	B

B → See step   4

A: Go to next step

1. Display the "Audio Settings" screen.
2. Select "Bluetooth Audio Settings".

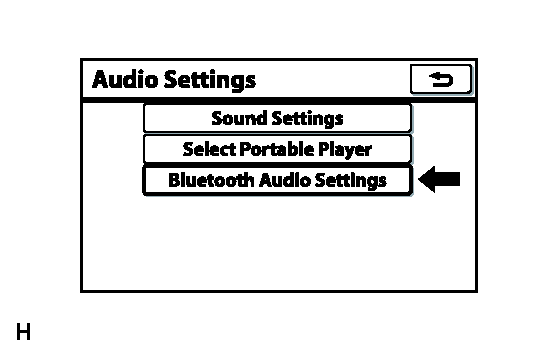

   Fig 3: Screen Display - Bluetooth Audio Settings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check automatic connection settings of the "Bluetooth" audio.
   1. Check if On is displayed for "Auto Bluetooth Connect" on the "BT Audio Setting" screen.
      Fig 4: Screen Display - On

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      On is displayed for "Auto Bluetooth Connect".

NG → CHANGE "AUTO BLUETOOTH CONNECT" TO ON

OK: Go to next step

1. Check the status of the portable player.
   1. Check that the portable player is in standby mode.
   2. Check that the portable player is not connected to another device (headphones etc.).

      OK

      The portable player is in standby mode or connected to another device (headphones etc.).

NG → CHANGE PORTABLE PLAYER TO STANDBY MODE AND DISCONNECT OTHER DEVICES (HEADPHONES etc.)

OK: Go to next step

1. Check if the portable player can be connected manually/automatically on another "Bluetooth" audio compatible vehicle of the same model.

   OK

   The portable player can be connected manually/automatically.

NG → PORTABLE PLAYER IS NOT COMPATIBLE

OK: Go to next step

1. Remove additional devices which use radio waves.
2. Check if the portable player can be connected manually/automatically.

   OK

   The portable player can be connected manually/automatically.

NG → See step   7

OK → END
