Sound Signal Circuit between Navigation Receiver Assembly and Multi-media Interface ECU: Wiring Diagram

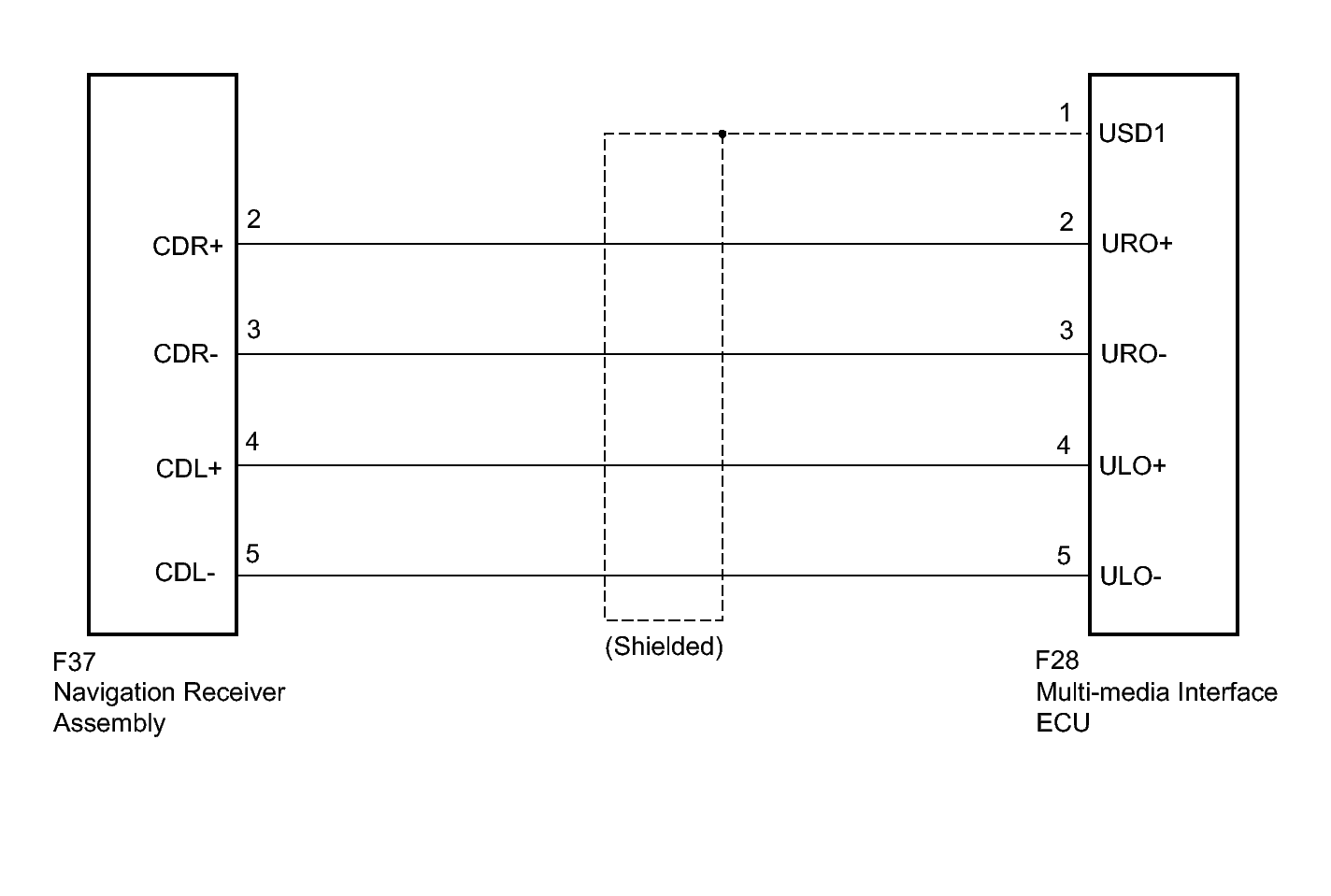

Fig 1: Sound Signal Circuit between Navigation Receiver Assembly & Multi-media Interface ECU Wiring Diagram
GTY182485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
