Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / P-Door Motor / Data List.
5. Read the Data List according to the display on the Techstream.
   P-DOOR MOTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR FRONT PASSENGER SIDE))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Auto SW	Front passenger side power window auto switch signal / ON or OFF	ON: Front passenger door power window auto switch operated OFF: Front passenger door power window auto switch not operated	-

   OK

   On the Techstream screen, ON or OFF is displayed accordingly.

NG → See step   4

OK: Go to next step

1. Initialize the power window regulator motor assembly (for front passenger side). Refer to INITIALIZATION .

NEXT: Go to next step

1. Check that the front passenger side door power window moves when the auto up/down function of the power window regulator switch assembly (for front passenger side) is operated. Refer to OPERATION CHECK .

   OK

   Front passenger side auto up/down function is normal.

NG → See step   6

OK → END (PROBLEM DUE TO INITIALIZATION FAILURE)

1. Remove the power window regulator switch assembly (for front passenger side).

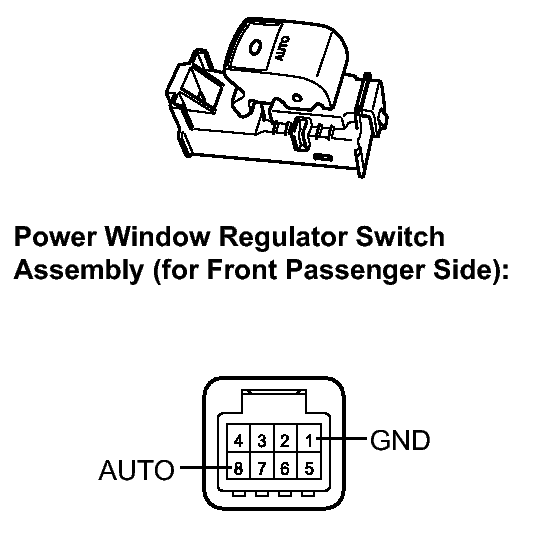

   Fig 1: Identifying Power Window Regulator Switch Assembly (For Front Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   8 (AUTO) - 1 (GND)	Auto up or auto down position	Below 1 Ω

NG → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)

OK: Go to next step

1. Disconnect the power window regulator motor assembly (for front passenger side) connector.

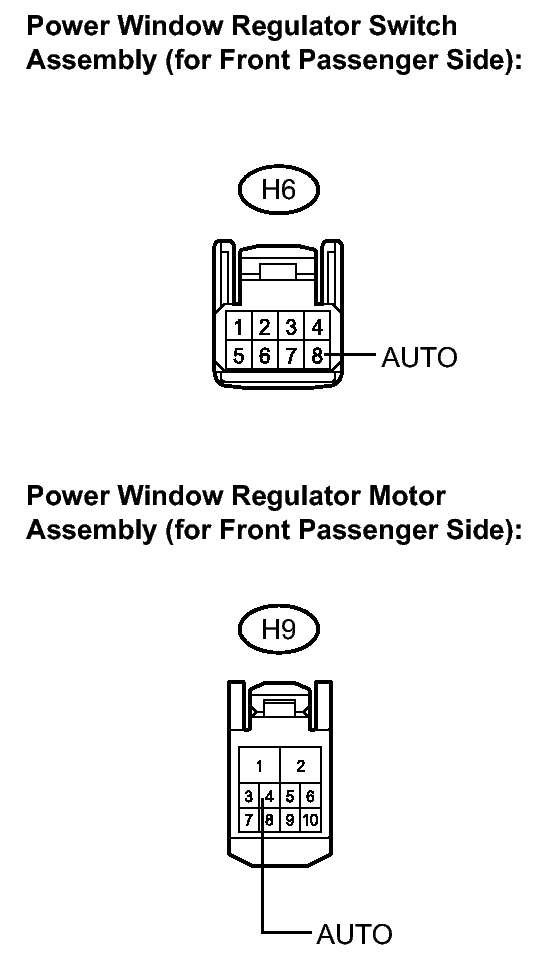

   Fig 2: Identifying Power Window Regulator Motor & Switch Assembly (For Front Passenger Side) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H6-8 (AUTO) - H9-4 (AUTO)	Always	Below 1 Ω
   H6-8 (AUTO) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6
