Conditioning For Sensor Testing
HINT:
Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the air fuel ratio sensor and heated oxygen sensor. This is to activate the sensors sufficiently to obtain the appropriate inspection results.

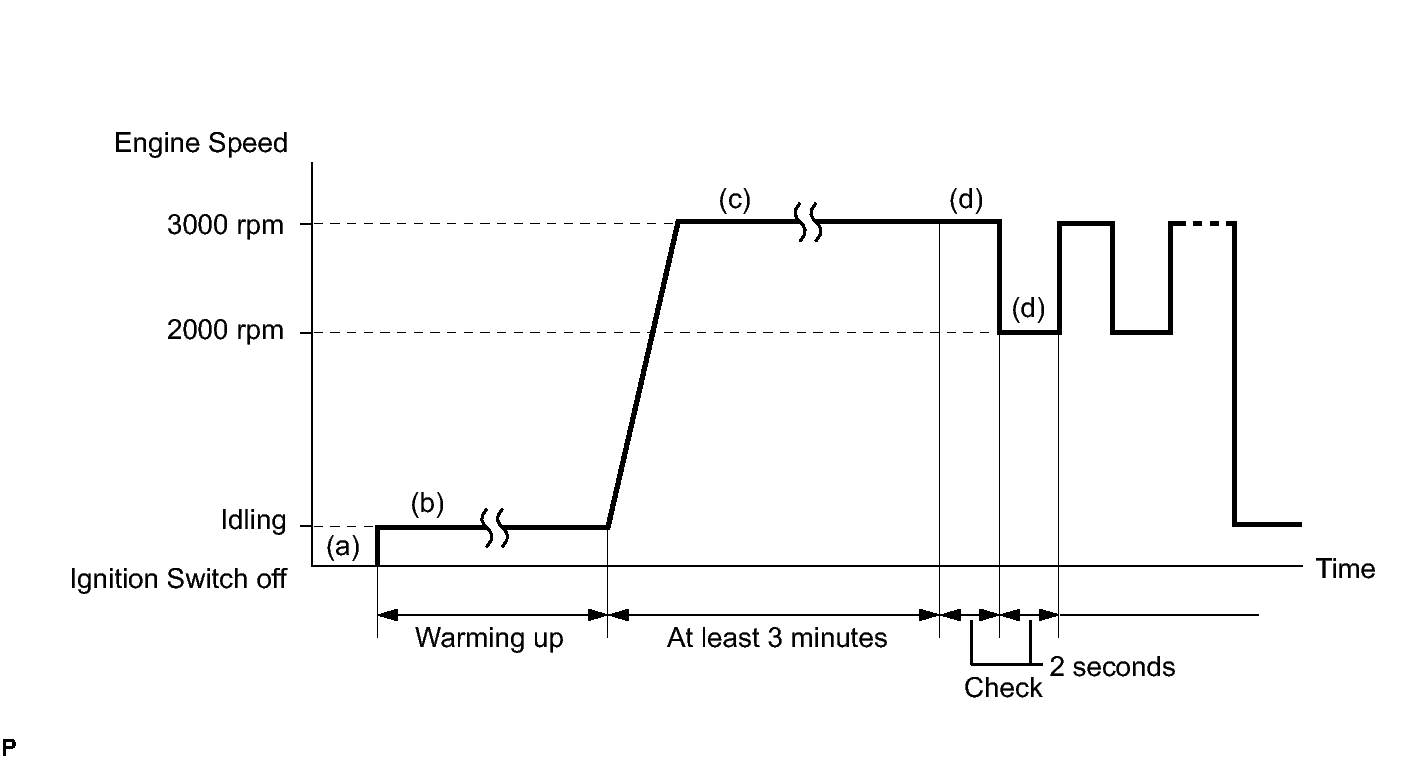

- (a) Connect the Techstream to the DLC3.
- (b) Start the engine and warm it up with all the accessories switched off until the engine coolant temperature stabilizes.
- (c) Run the engine at an engine speed of between 2500 RPM and 3000 RPM for at least 3 minutes.WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- (d) While running the engine at 3000 RPM for 2 seconds and 2000 RPM for 2 seconds, check the waveforms of the air fuel ratio and heated oxygen sensors using the Techstream.WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- If either voltage output of the air fuel ratio or heated oxygen sensor does not fluctuate, or there is noise in the waveform of either sensor, the sensor may be malfunctioning.
- If the voltage outputs of both the sensors remain lean or rich, the air fuel ratio may be extremely lean or rich. In such cases, enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor.
- If the three-way catalytic converter has deteriorated, the heated oxygen sensor (located behind the three-way catalytic converter) voltage output fluctuates up and down frequently, even under normal driving conditions (active air fuel ratio control is not performed).
