DTC P2014: Intake Manifold Runner Position Sensor / Switch Circuit (Bank 1); DTC P2016: Intake Manifold Runner Position Sensor / Switch Circuit Low (Bank 1); DTC P2017: Intake Manifold Runner Position Sensor / Switch Circuit High (Bank 1): Description

The tumble control valve position sensor is a non-contact type sensor.

The position sensor measures the opening angle of the tumble control valve. The sensor is reliable and accurate, as it is electrically controlled by Hall elements.

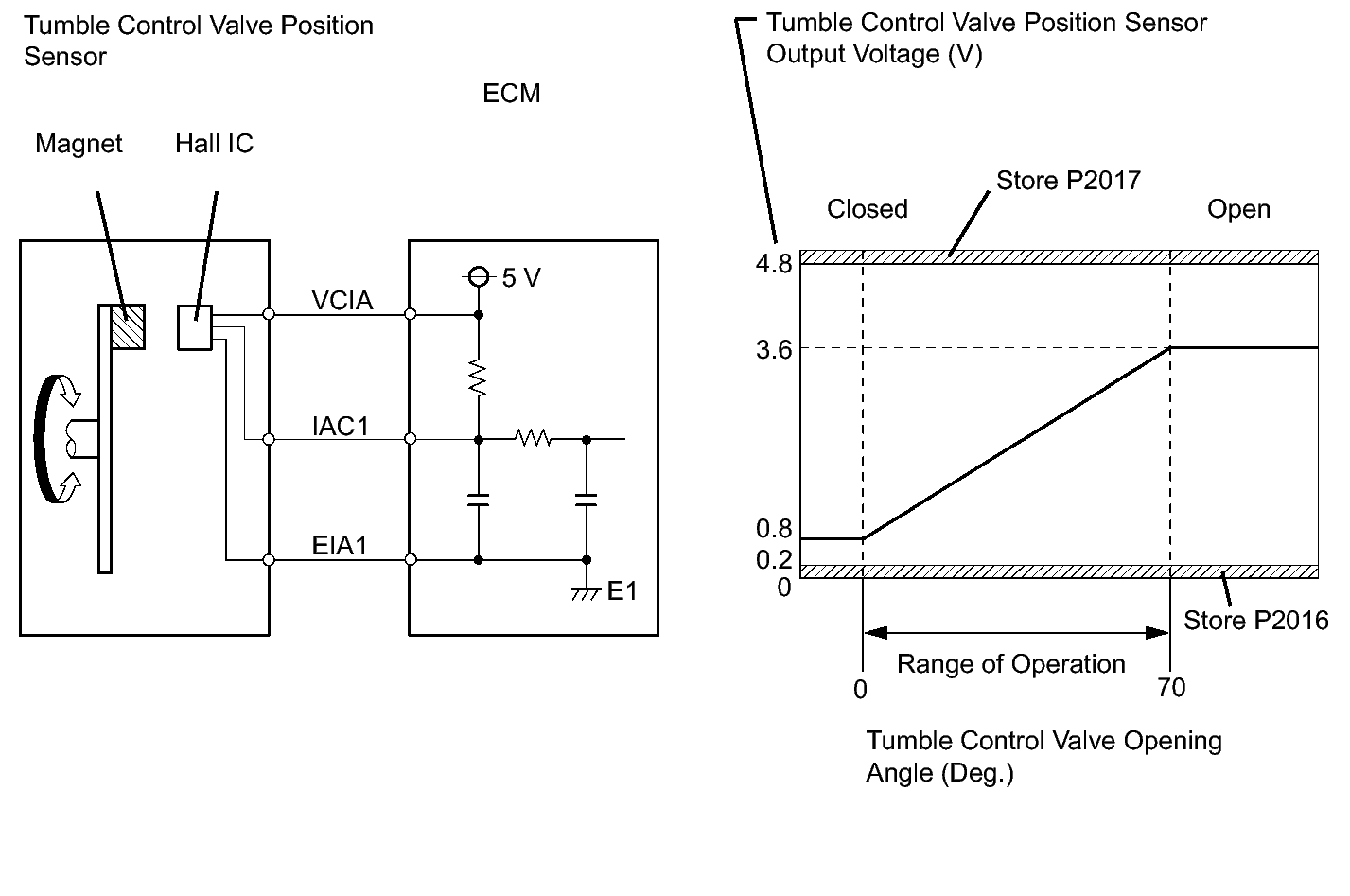

Fig 1: Identifying Tumble Control Valve Position Sensor Diagrams

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DTC No.	DTC Detection Condition	Trouble Area
P2014	The tumble control valve position sensor output voltage flutters up and down beyond the normal operating range (less than 0.2 V or more than 4.8 V) for more than 0.5 seconds (open or short) (1 trip detection logic).	Open or short in intake air control valve actuator circuit Intake air control valve actuator ECM
P2016	The tumble control valve position sensor output voltage is less than 0.2 V for more than 0.5 seconds (short) (1 trip detection logic).
P2017	The tumble control valve position sensor output voltage is more than 4.8 V for more than 0.5 seconds (open) (1 trip detection logic).

HINT:

After confirming DTC P2014, P2016 or P2017, use the Techstream to confirm the IAC Sensor Voltage (tumble control valve position sensor output voltage). Enter the following menus: Powertrain / Engine / Data List / All Data / IAC Sensor Voltage.

IAC Sensor Voltage	Malfunction
0.2 V or less	IAC1 circuit shorted VCIA circuit open
4.8 V or higher	VCIA and IAC1 circuit shorted IAC1 circuit open EIA1 circuit open
