Steering Column Assembly: Installation: Installation

INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Align the matchmarks on the steering intermediate shaft assembly and the steering column assembly.
2. Install the bolt.

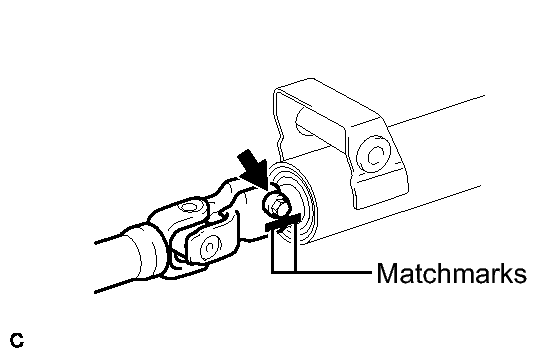

  Fig 1: Identifying Matchmarks On Steering Intermediate Shaft Assembly And Steering Column Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
INSTALL STEERING COLUMN ASSEMBLY
1. Install the steering column assembly with the bolt and 2 nuts.

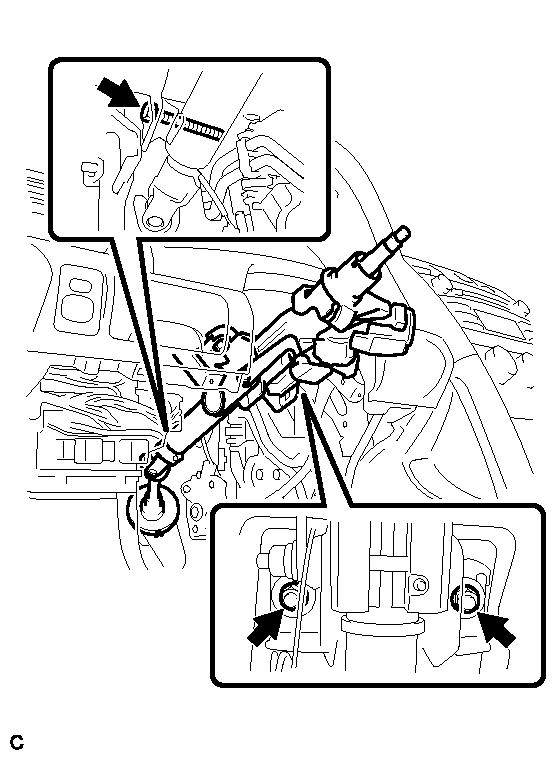

  Fig 2: Locating Steering Column Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
2. Connect the connectors and wire harness clamps to the steering column assembly.
3. Align the matchmarks on the steering intermediate shaft assembly and the power steering link assembly.

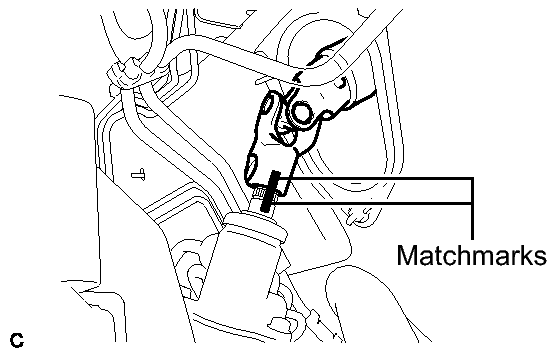

  Fig 3: Identifying Matchmarks On Steering Intermediate Shaft Assembly And Power Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the bolt.

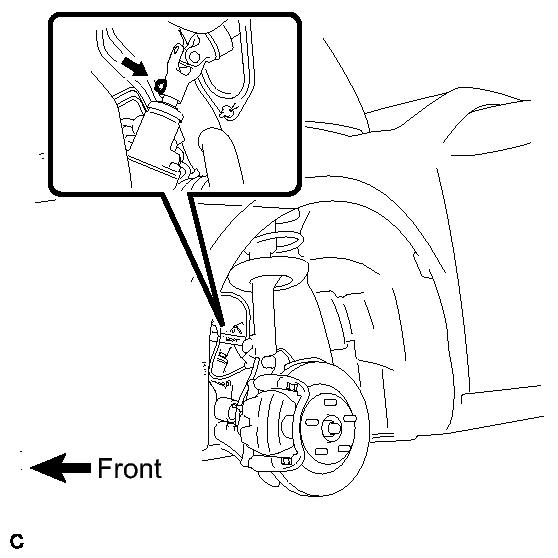

  Fig 4: Locating Steering Intermediate Shaft Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
5. Install the clamp to the steering column hole shield.

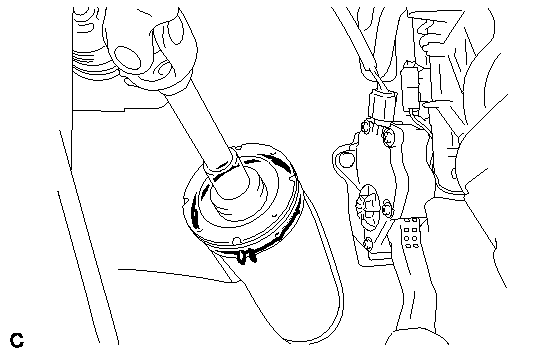

  Fig 5: Identifying Steering Column Hole Shield Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR DUCT
1. Engage the 2 claws to install the No. 1 air duct.

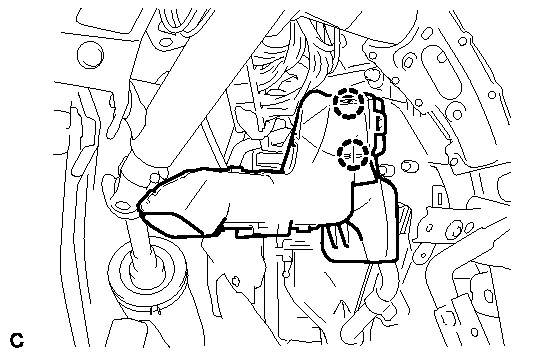

  Fig 6: Identifying No. 1 Air Duct Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.

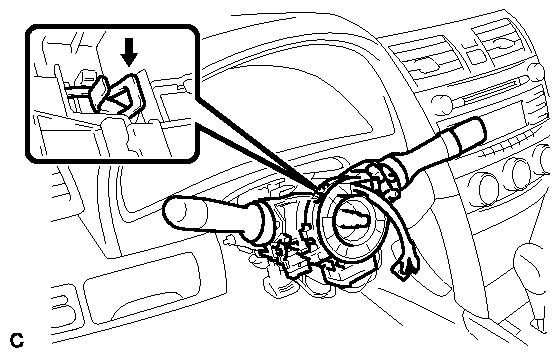

  Fig 7: Locating Turn Signal Switch Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
INSTALL STEERING COLUMN COVER
1. Engage the claw to install the upper steering column cover.

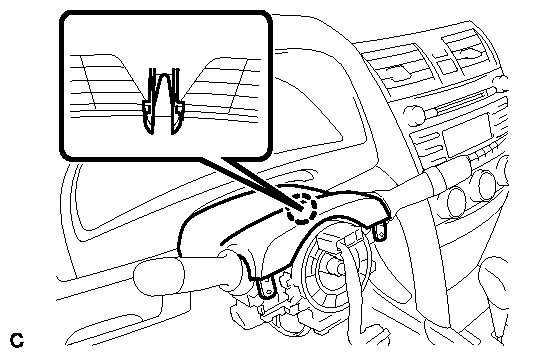

  Fig 8: Identifying Upper Steering Column Cover Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws to install the lower steering column cover.

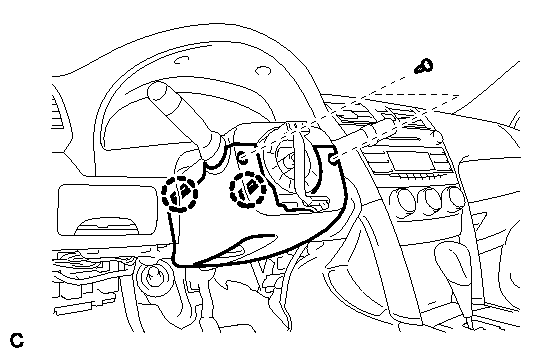

  Fig 9: Identifying Lower Steering Column Cover Screw And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.
ADJUST SPIRAL CABLE SUB- ASSEMBLY . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft.

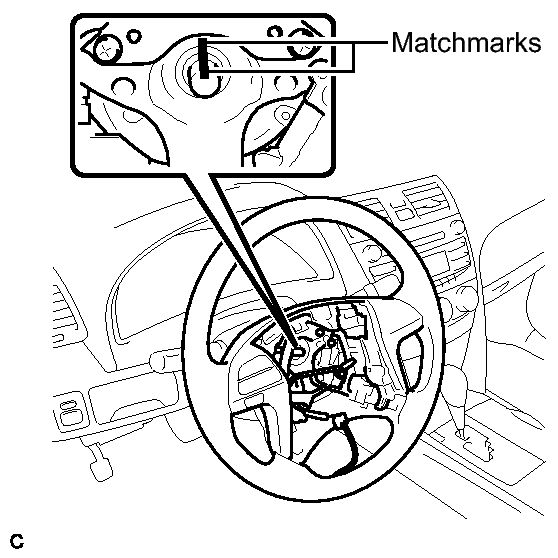

  Fig 10: Aligning Matchmarks On Steering Wheel Assembly And Steering Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
3. Connect the connectors to the spiral cable sub-assembly.
INSPECT STEERING WHEEL CENTER POINT
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL NO. 2 LOWER STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
INSTALL NO. 3 LOWER STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) . Refer to INSTALLATION - Step 50
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) . Refer to INSTALLATION - Step 51
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH . Refer to INSTALLATION - Step 39
INSTALL FRONT DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 40
INSTALL FRONT WHEEL LH
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
- Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
INSPECT STEERING PAD . Refer to INSTALLATION - Step 5
REGISTER ECU CODE
NOTE:
When replacing the steering lock actuator assembly, perform initialization. Refer to REGISTRATION - Step 3
INSPECT SRS WARNING LIGHT (for TMC Made)
HINT:

Refer to DIAGNOSIS SYSTEM
INSPECT SRS WARNING LIGHT (except TMC Made)
HINT:

Refer to DIAGNOSIS SYSTEM
