Unlock Position Sensor Signal Circuit: Procedure

1. Measure the voltage according to the value(s) in the table below.

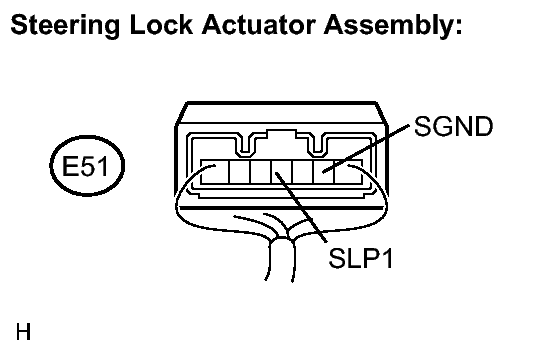

   Fig 1: Identifying E51 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   Tester connection (Symbols)	Condition	Specified condition
   E51-4 (SLP1) - E51-2 (SGND)	Engine switch off Turn the engine switch on (ACC or IG)	Below 1 V

OK → CHECK SMART KEY SYSTEM

NG: Go to next step

1. Disconnect the E51 connector from the steering lock actuator assembly.

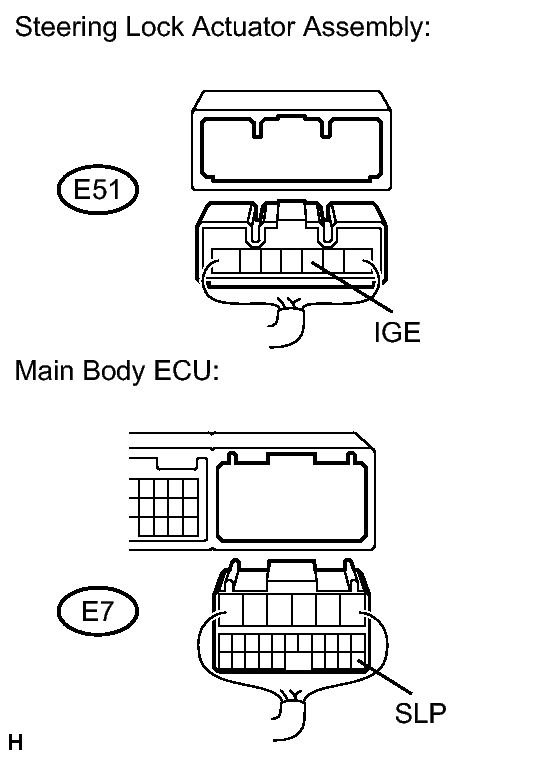

   Fig 2: E51 & E7 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the E7 connector from the main body ECU.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester connection (Symbols)	Condition	Specified condition
   E51-4 (SLP1) - E7-18 (SLP)	Always	Below 1 Ω
   E51-4 (SLP1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  PROBLEM SYMPTOMS TABLE
