Steering Lock System: Initialization: Initialization

HINT:

In vehicles equipped with the smart key system function, the starting function may not operate after recharging or while jump-starting a discharged battery. This condition is most common if the battery voltage drops below 9 V. The following procedure has been developed to address this condition.

1. INITIALIZATION PROCEDURE

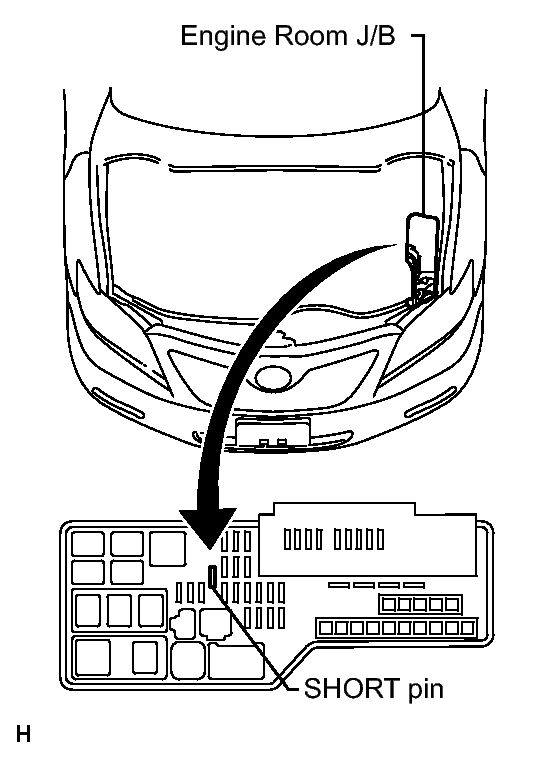

   Fig 1: Identifying D.C.C. Fuse

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Confirm that the SHORT pin is installed.

      HINT:

      If the SHORT pin is not installed, install it at this time.

   2. Move the shift lever to the P position.
   3. Turn the engine switch off.
   4. Open the driver's door.

      HINT:

      Opening the driver's door will start an initialization process between the steering lock ECU and the engine room J/B.

   5. Depress the brake pedal.
   6. Press the "START STOP" switch.
