Programming and Relearning

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT
The following items can be customized.

NOTICE:
* Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
* Be sure to record the current settings before customizing.
* When troubleshooting, make sure that the item in question has not been disabled using the customizing function.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Customize Setting / Door Lock.

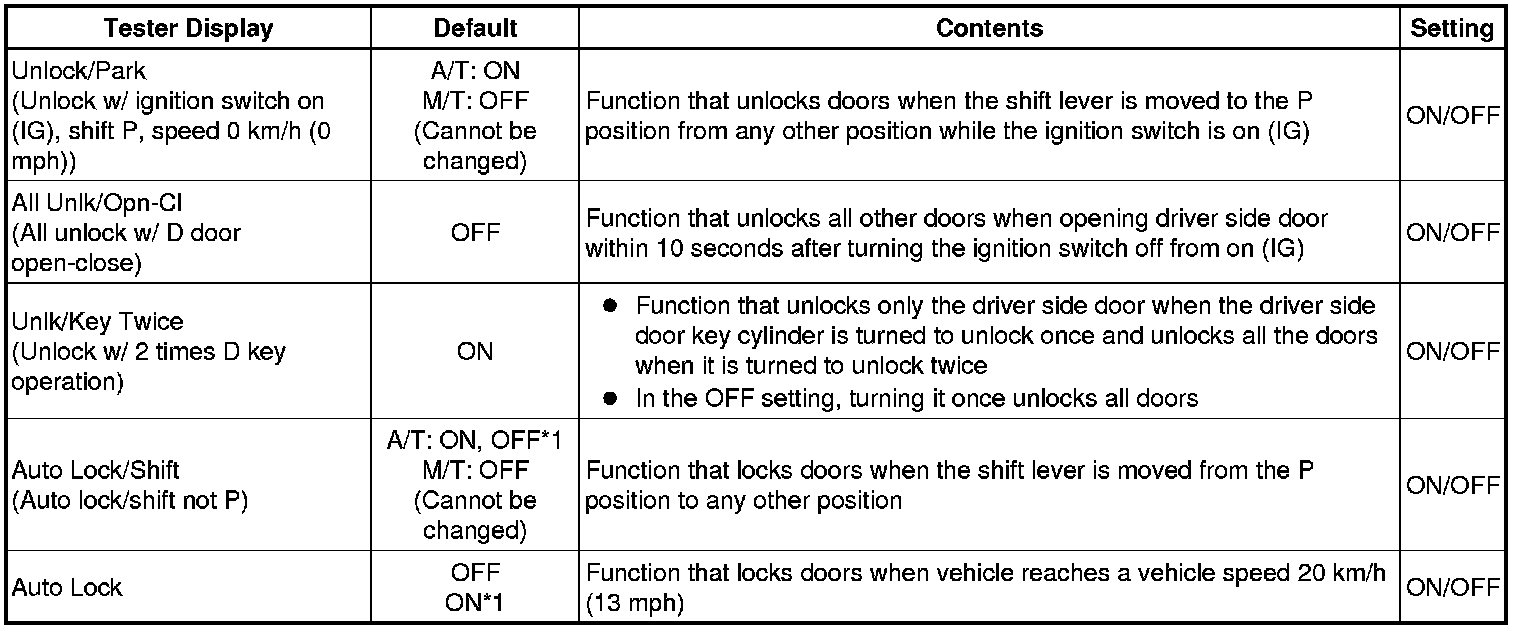

(e) Select the setting by referring to the table below.

Door Lock:





Wireless D Lock:





* *1: Models for Korea
