Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

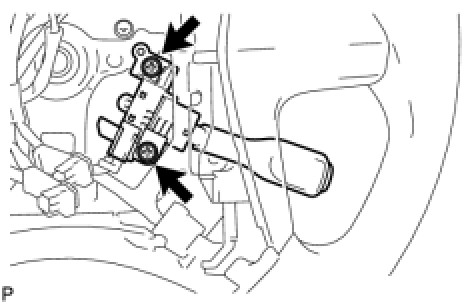

1. INSTALL CRUISE CONTROL MAIN SWITCH

(a) Install the cruise control main switch with the 2 screws.





Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

(b) Connect the connector.

2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSPECT SRS WARNING LIGHT

* for TMC Made: Diagnosis System

* except TMC Made: Diagnosis System
