Service Data

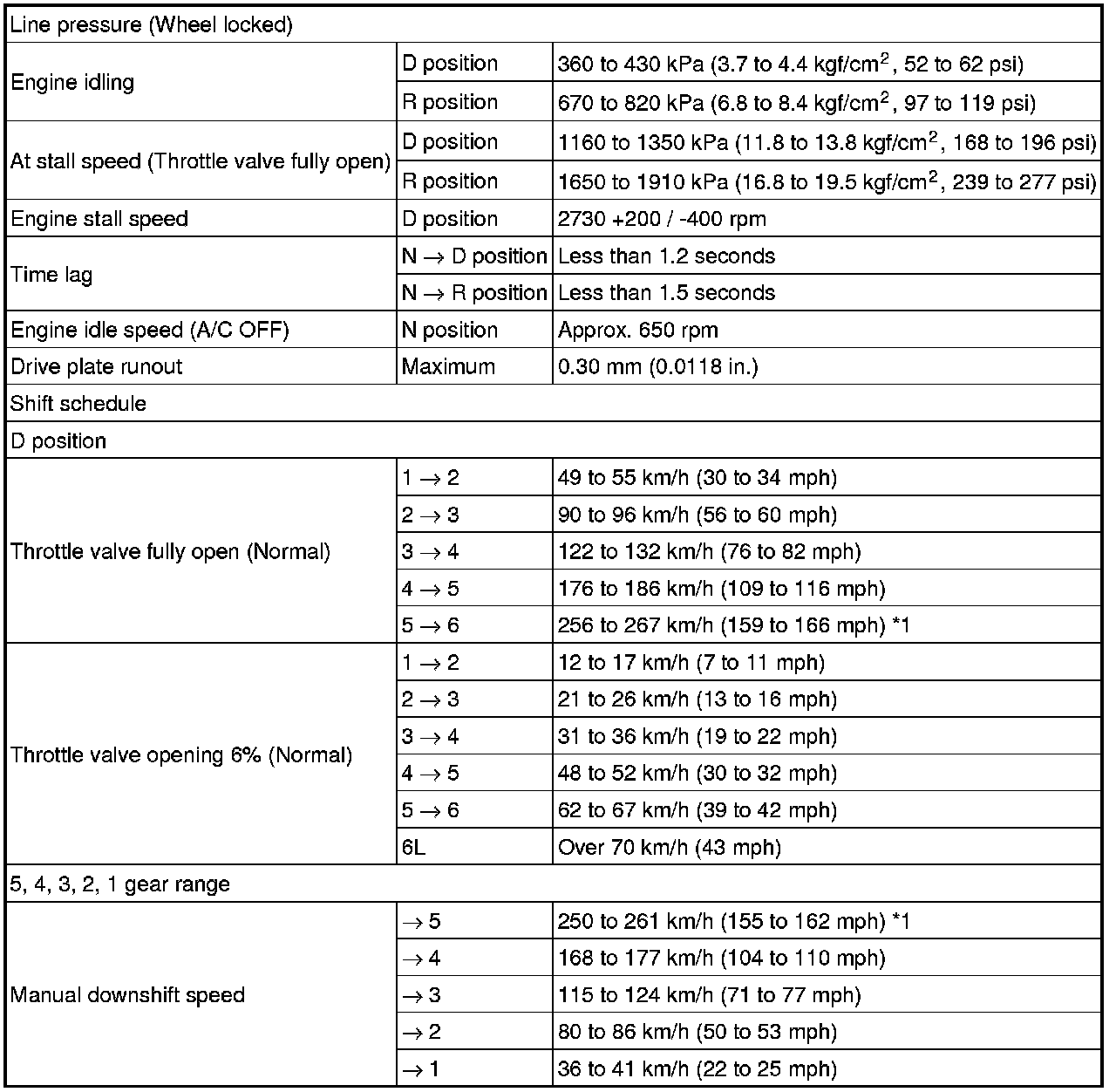

SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: SERVICE DATA





*1: Speed limiter active

Park / Neutral Position Switch

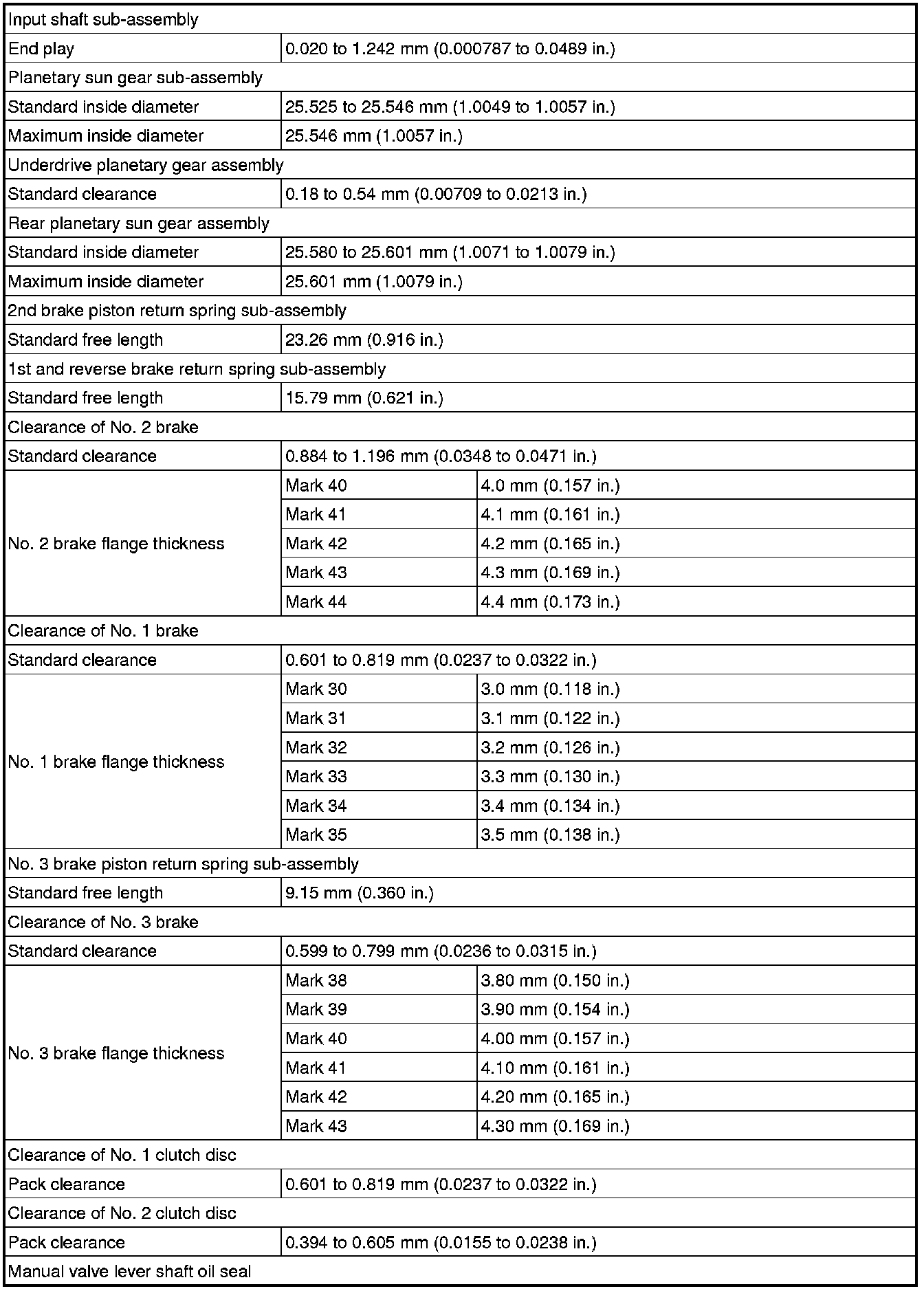

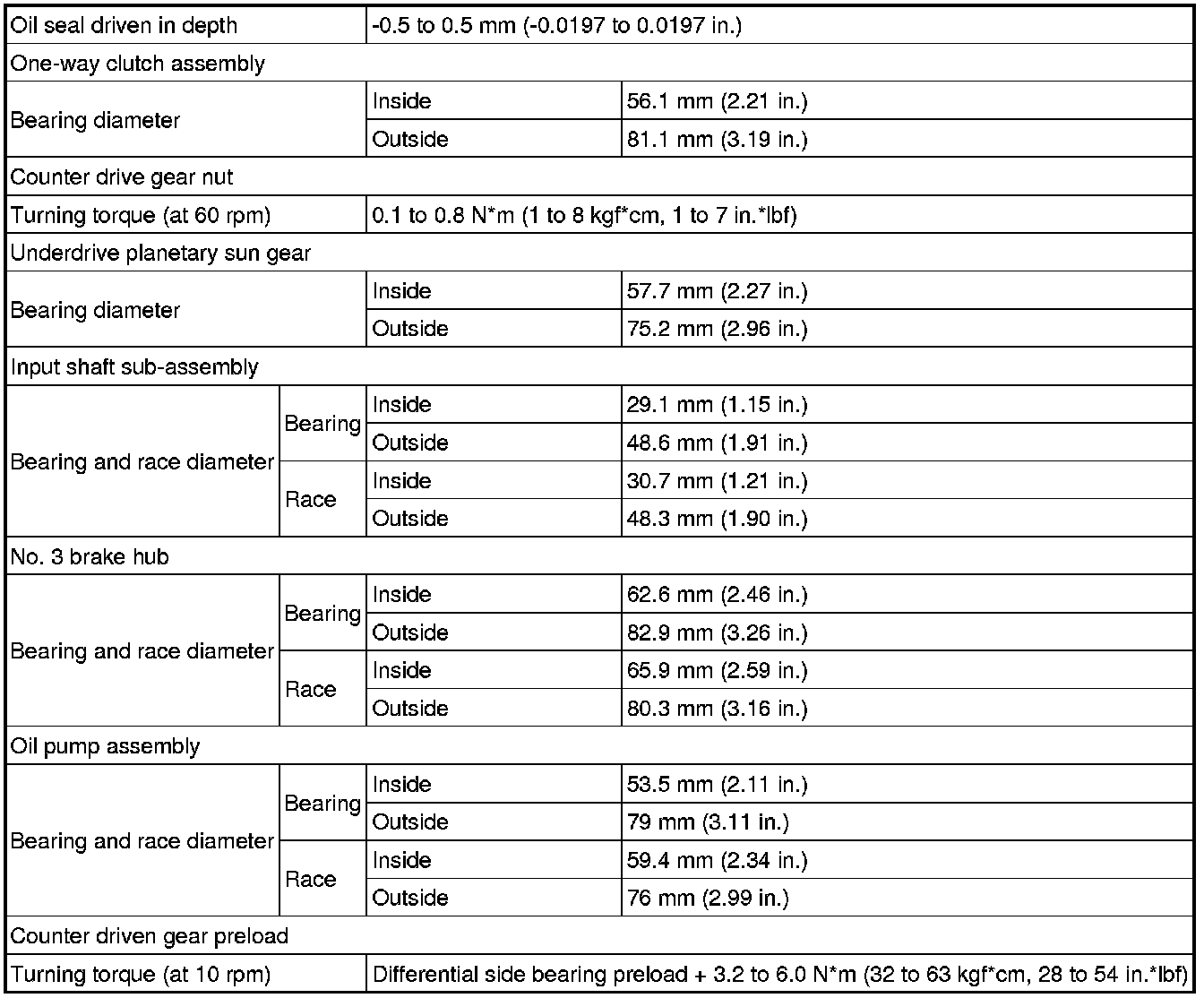

Automatic Transaxle Unit

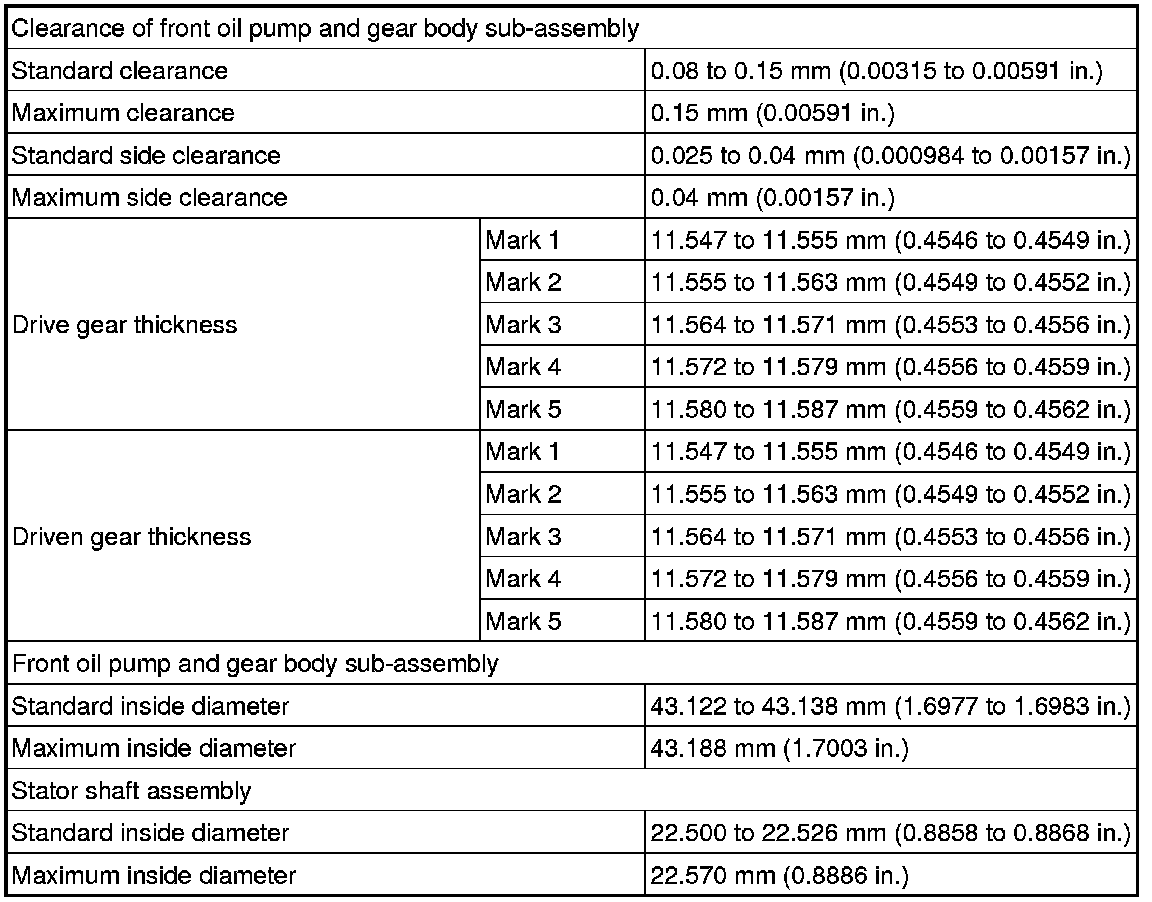

Oil Pump





Shift Solenoid Valve

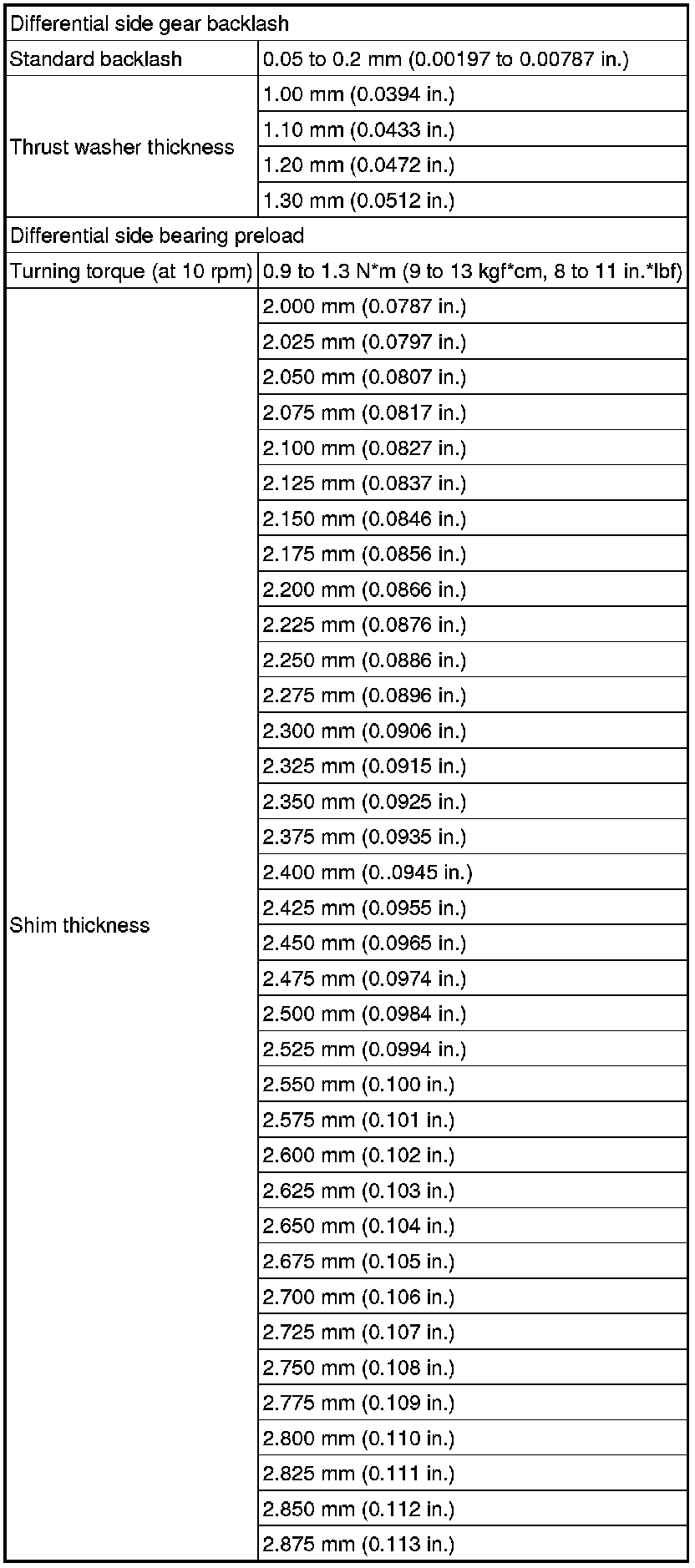

Differential Case
