Torque Specifications

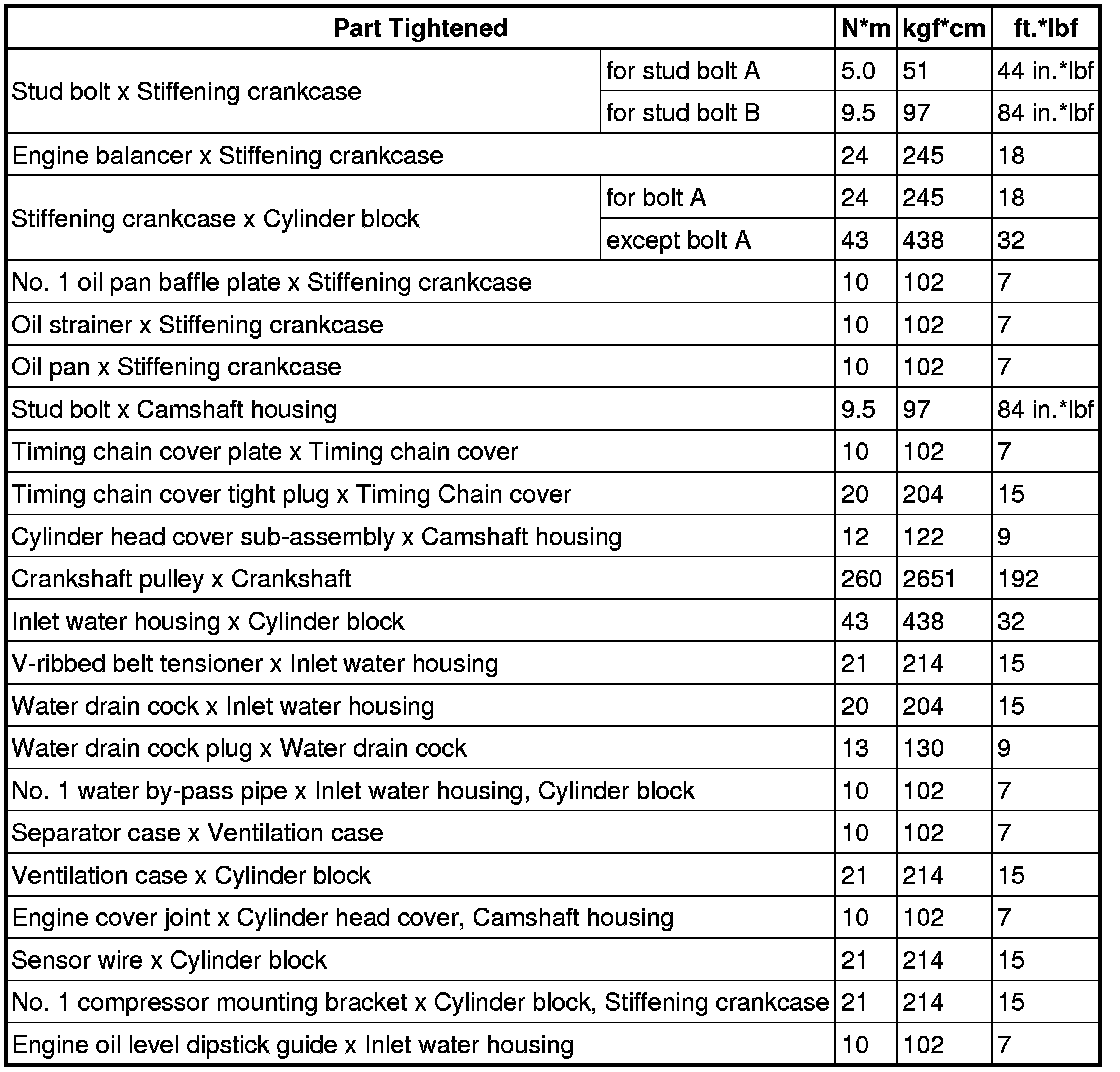

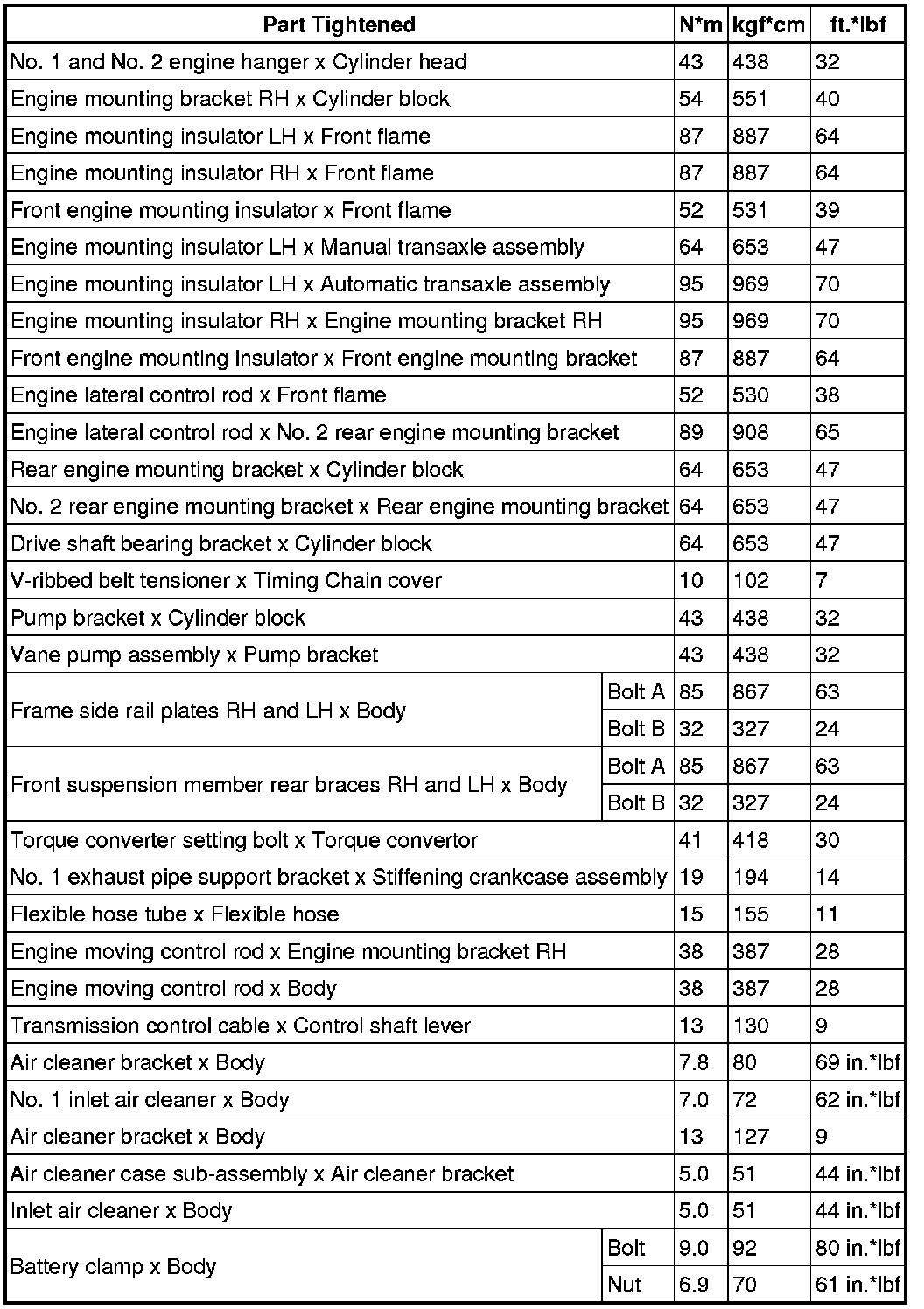

SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

ENGINE





CAMSHAFT





CYLINDER HEAD GASKET





CYLINDER HEAD





CYLINDER BLOCK





FRONT ENGINE OIL SEAL





REAR ENGINE OIL SEAL





ENGINE ASSEMBLY





ENGINE UNIT
