Service Data





SERVICE SPECIFICATIONS: EB62 MANUAL TRANSAXLE: SERVICE DATA

Differential Oil Seal





Back-up Light Switch





Manual Transaxle Unit

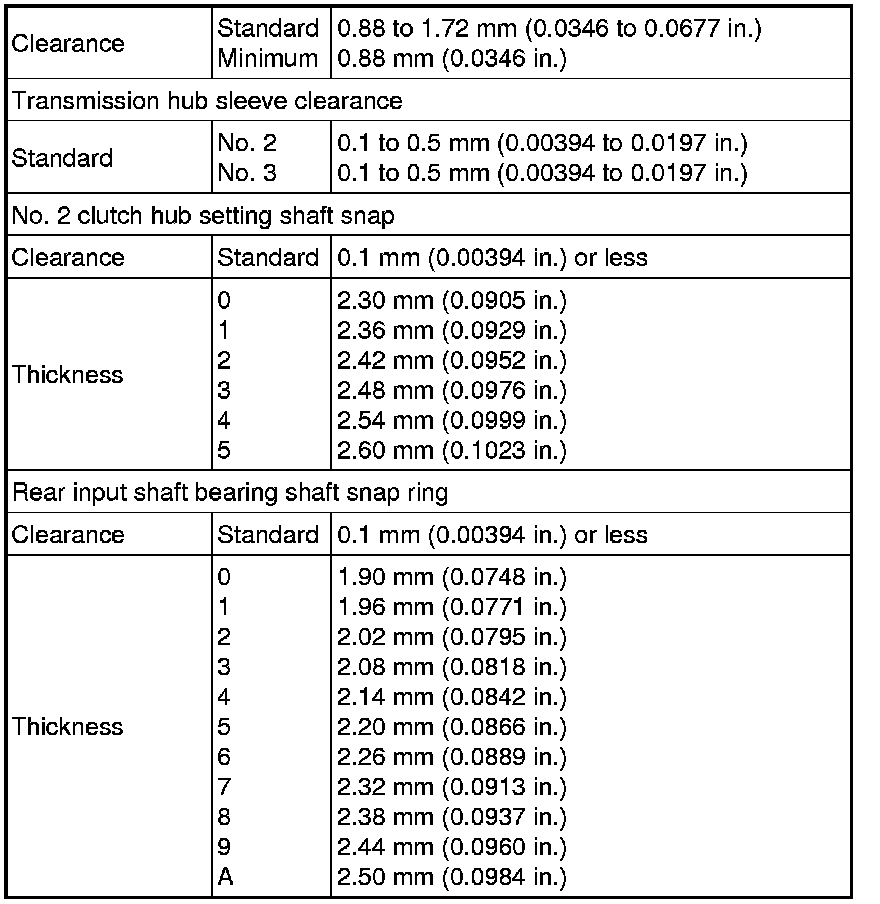

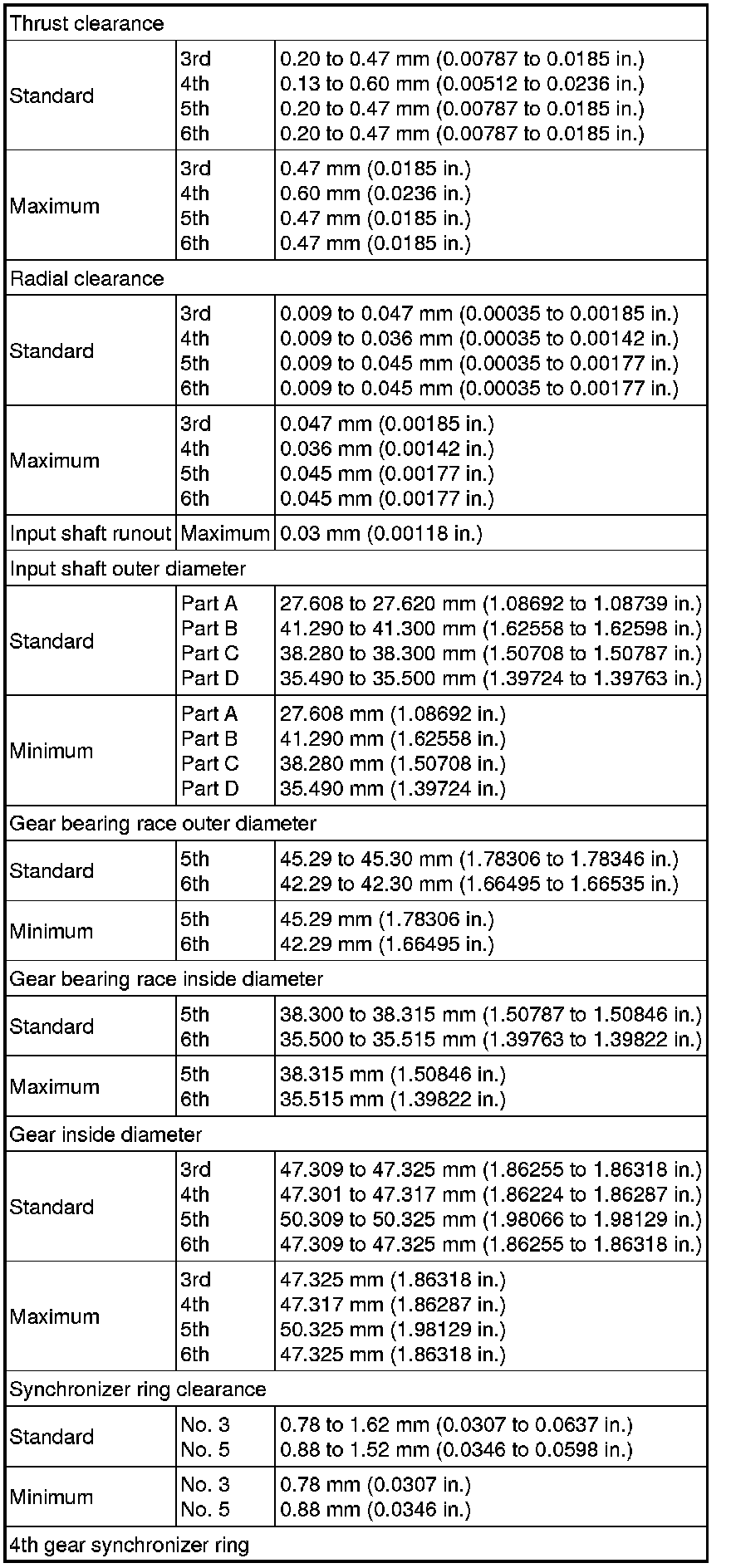

Input Shaft

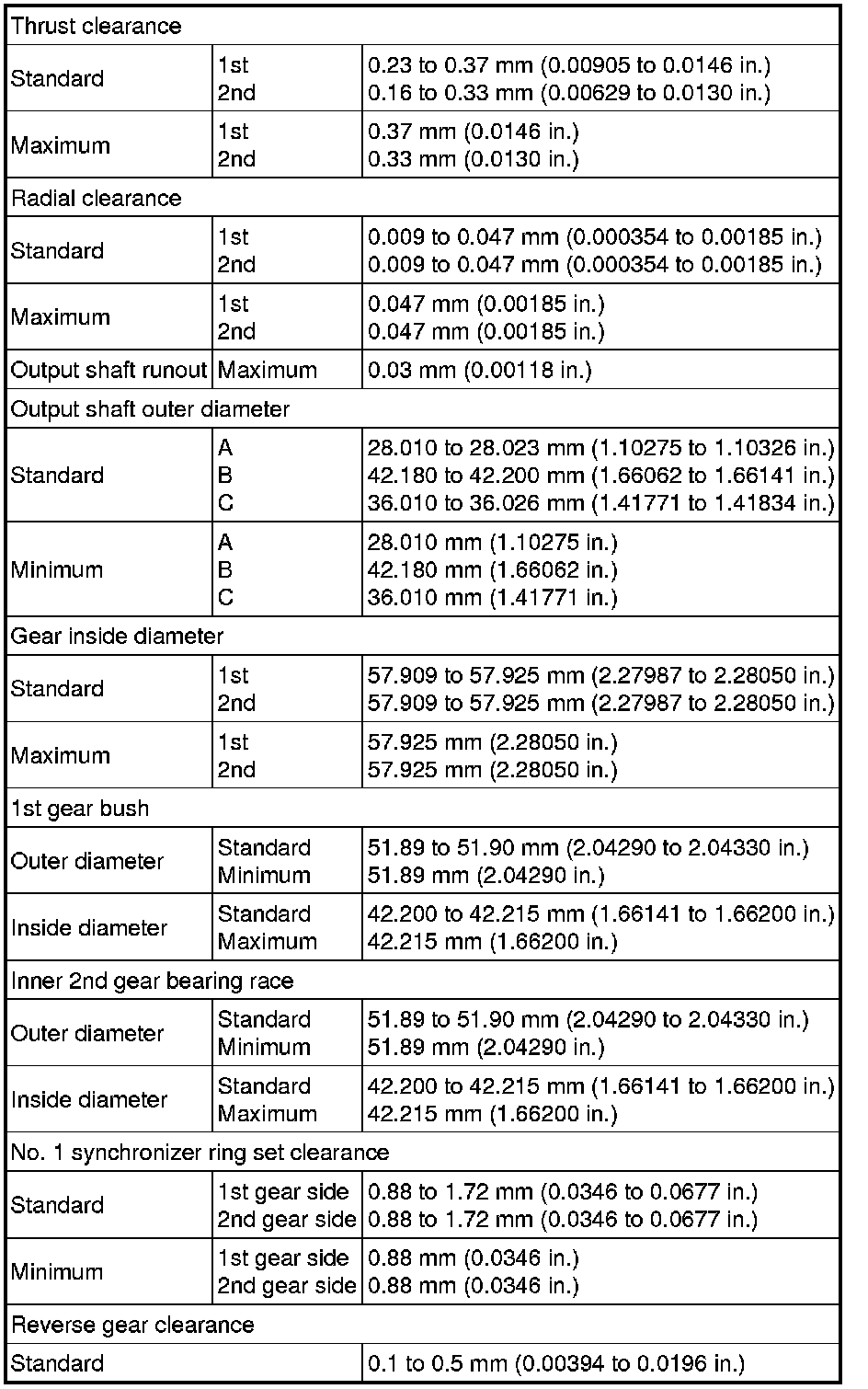

Output Shaft





Shift and Select Lever Shaft

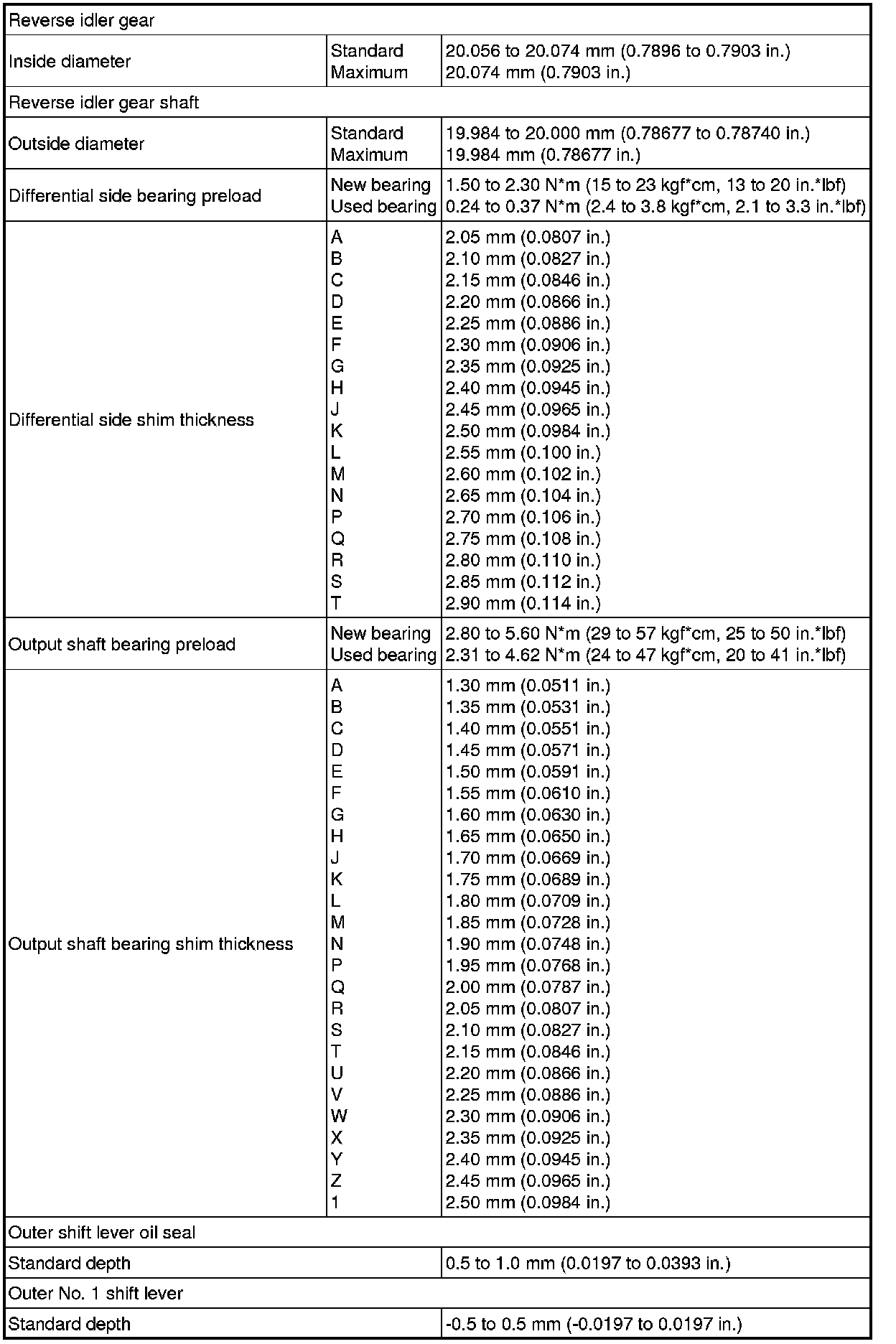

Differential Case
