Power Source (Except TMC Made): Notes

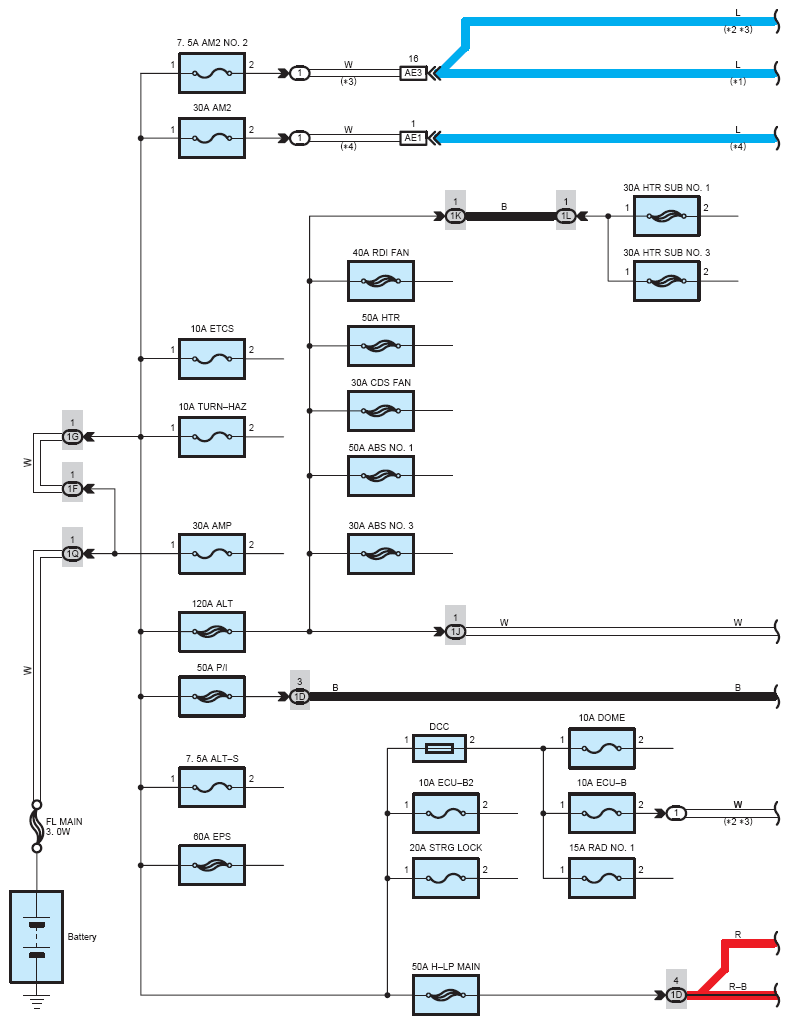

Fig 1: Power Source (Except TMC Made) System Wiring Diagram (1 Of 5)
G07115086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

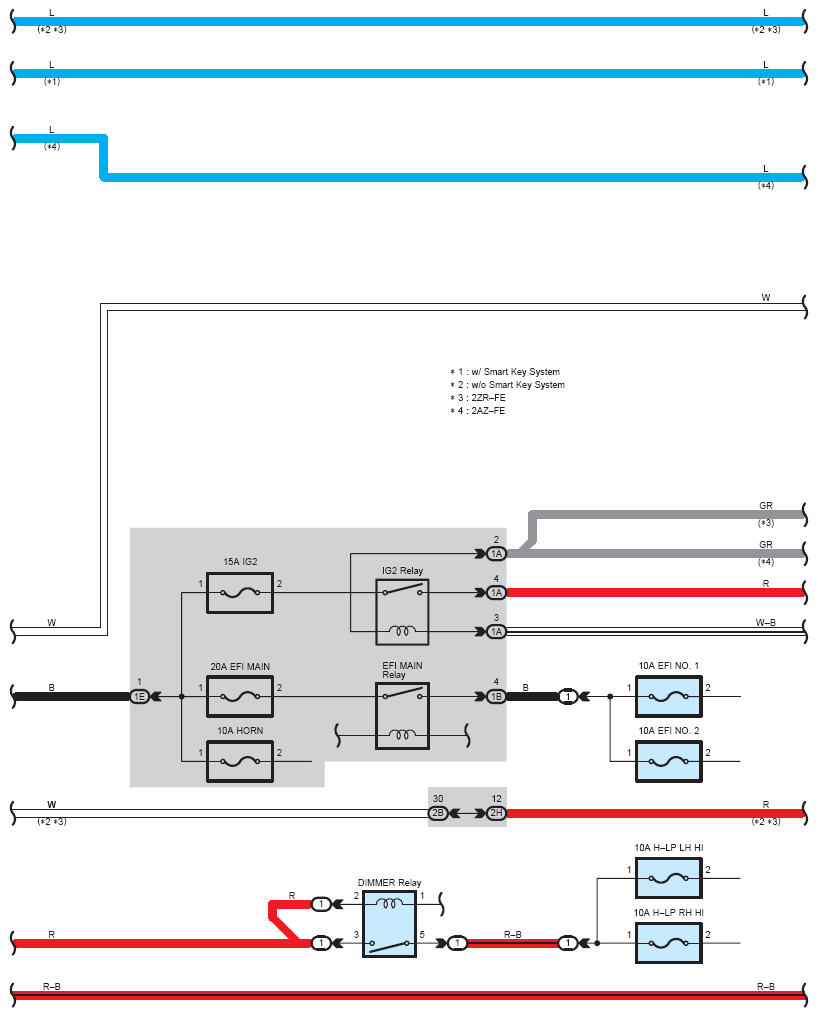

Fig 2: Power Source (Except TMC Made) System Wiring Diagram (2 Of 5)
G07115087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

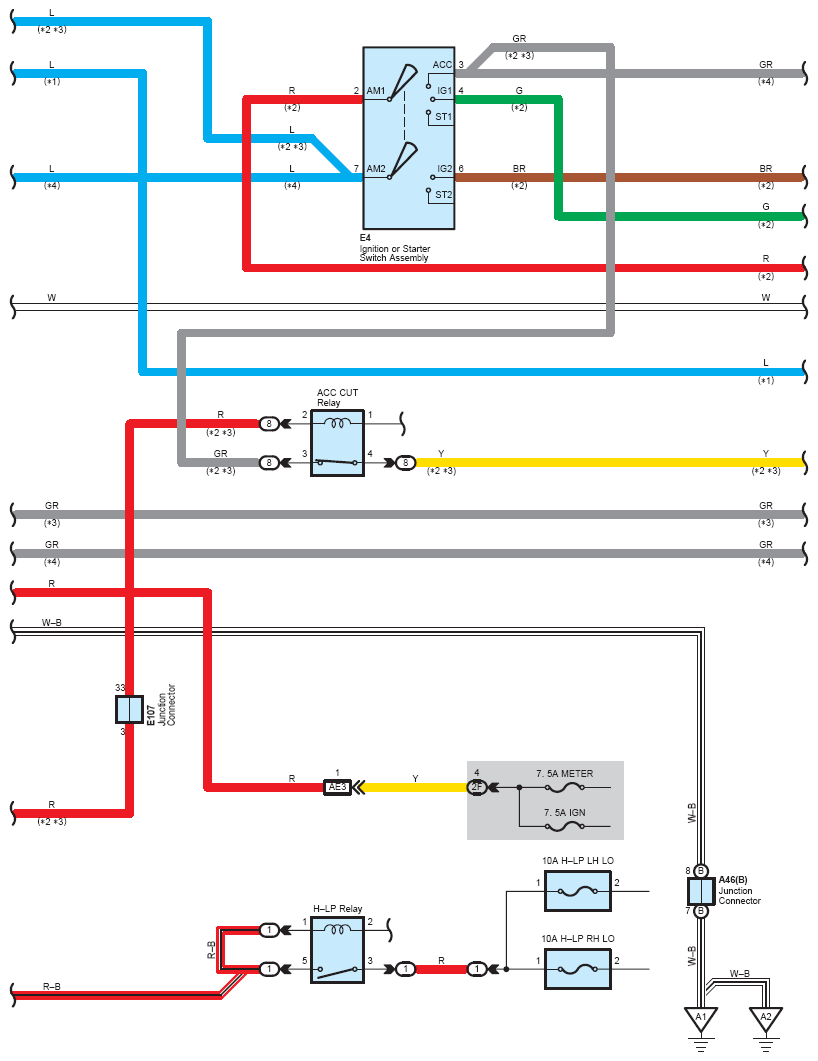

Fig 3: Power Source (Except TMC Made) System Wiring Diagram (3 Of 5)
G07115088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

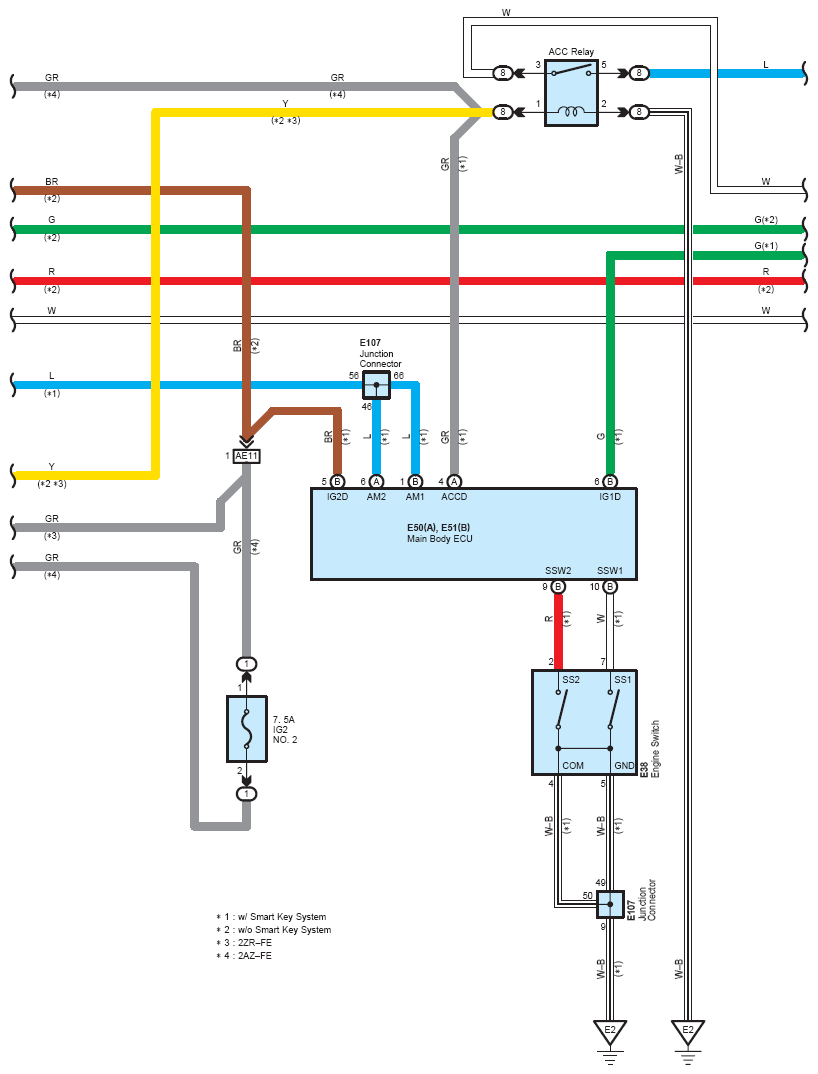

Fig 4: Power Source (Except TMC Made) System Wiring Diagram (4 Of 5)
G07115089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

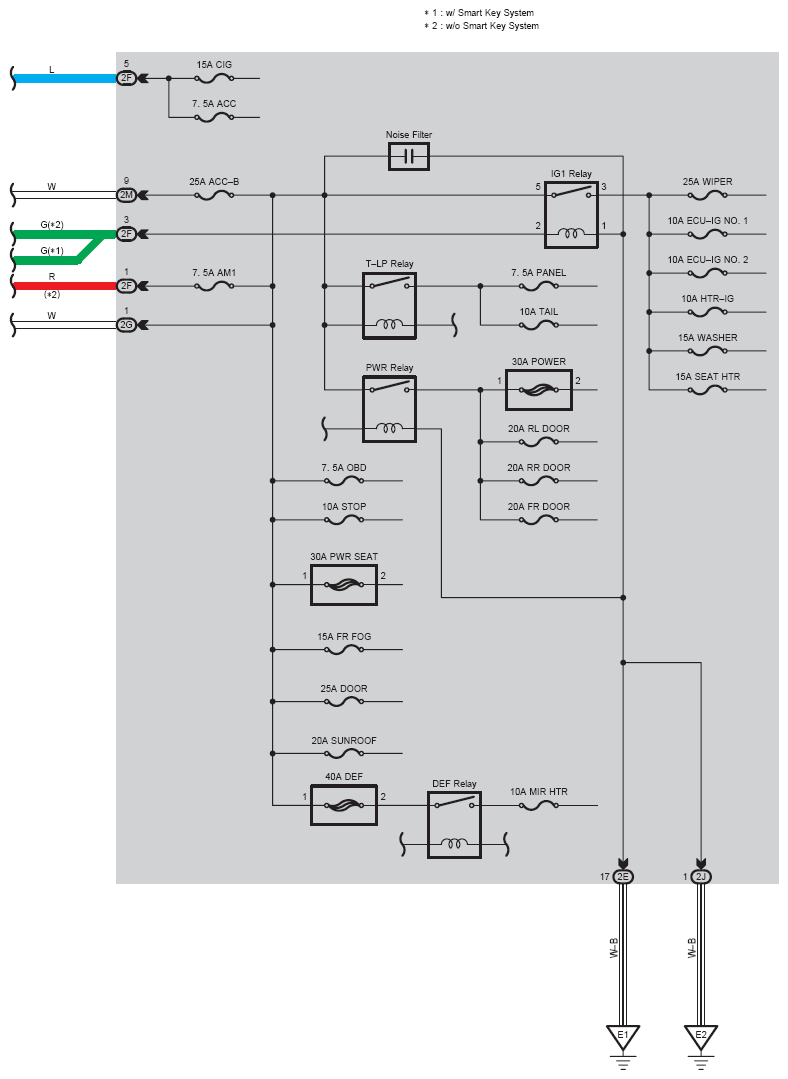

Fig 5: Power Source (Except TMC Made) System Wiring Diagram (5 Of 5)
G07115090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
