Wireless Door Lock Control (w/o Smart Key System) (Except TMC Made): Notes

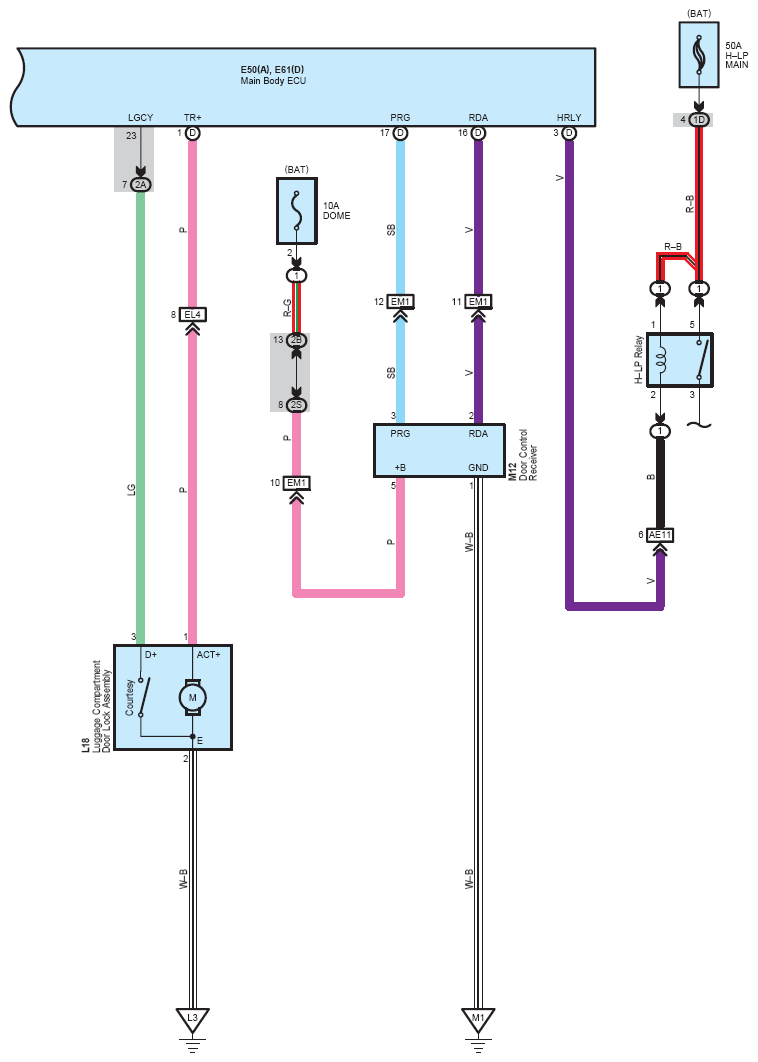

Fig 1: Wireless Door Lock Control (w/o Smart Key System) (Except TMC Made) Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

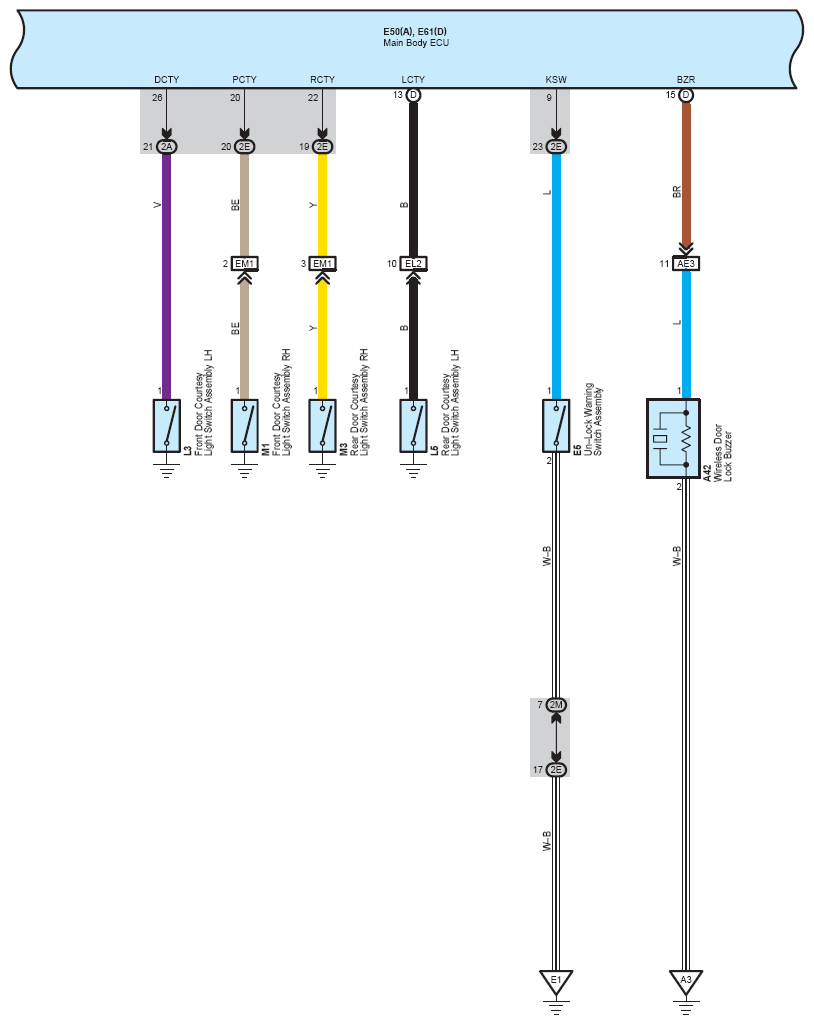

Fig 2: Wireless Door Lock Control (w/o Smart Key System) (Except TMC Made) Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

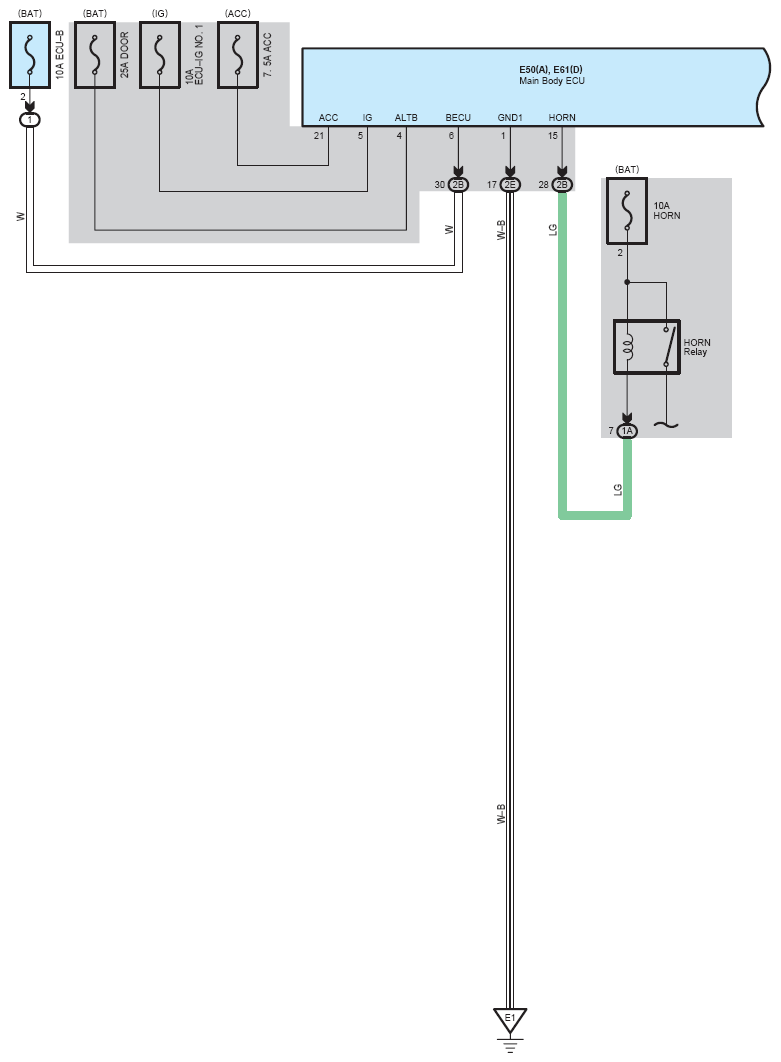

Fig 3: Wireless Door Lock Control (w/o Smart Key System) (Except TMC Made) Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

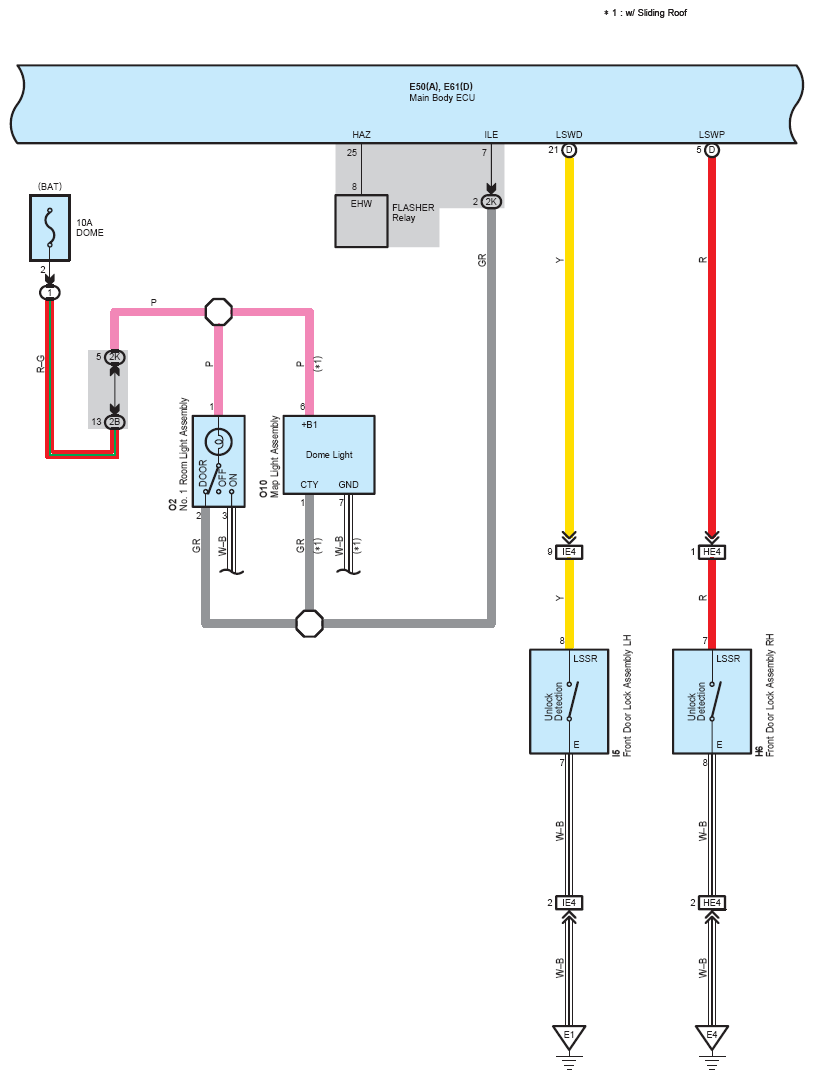

Fig 4: Wireless Door Lock Control (w/o Smart Key System) (Except TMC Made) Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
