Steering Angle Sensor: Installation: Installation

PRECAUTION
Refer to PRECAUTION
INSTALL STEERING ANGLE SENSOR

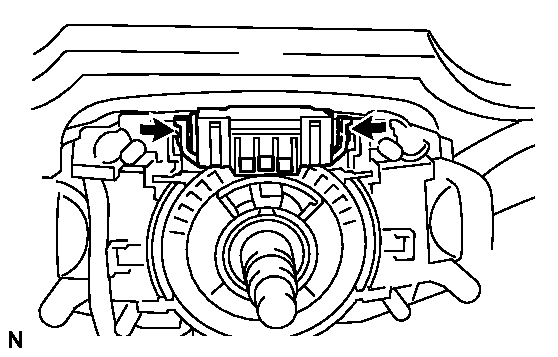

Fig 1: Identifying Steering Angle Sensor Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the steering angle sensor.
2. Connect the harness and steering angle sensor connector.

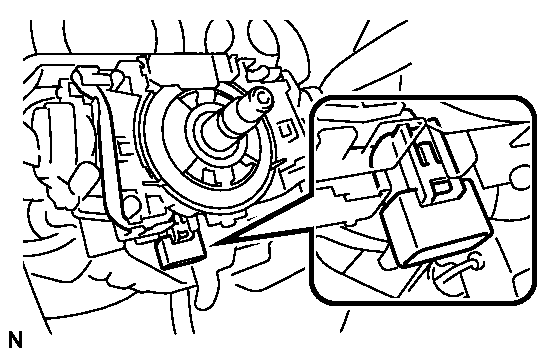

  Fig 2: Identifying Steering Angle Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the steering sensor connector.
INSTALL SPIRAL CABLE . Refer to INSTALLATION - Step 2
INSTALL UPPER STEERING COLUMN COVER . Refer to INSTALLATION - Step 16
INSTALL LOWER STEERING COLUMN COVER . Refer to INSTALLATION - Step 17
ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 5
INSTALL STEERING WHEEL ASSEMBLY . Refer to INSTALLATION - Step 18
INSPECT STEERING WHEEL CENTER POINT
INSTALL STEERING PAD . Refer to INSTALLATION - Step 2
INSTALL STEERING WHEEL COVER LOWER NO. 2 . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL COVER LOWER NO. 3 . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
INSPECT STEERING PAD . Refer to INSTALLATION - Step 6
PERFORM INITIALIZATION
Refer to INITIALIZATION
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
