Fuel Injector: Components: Illustration

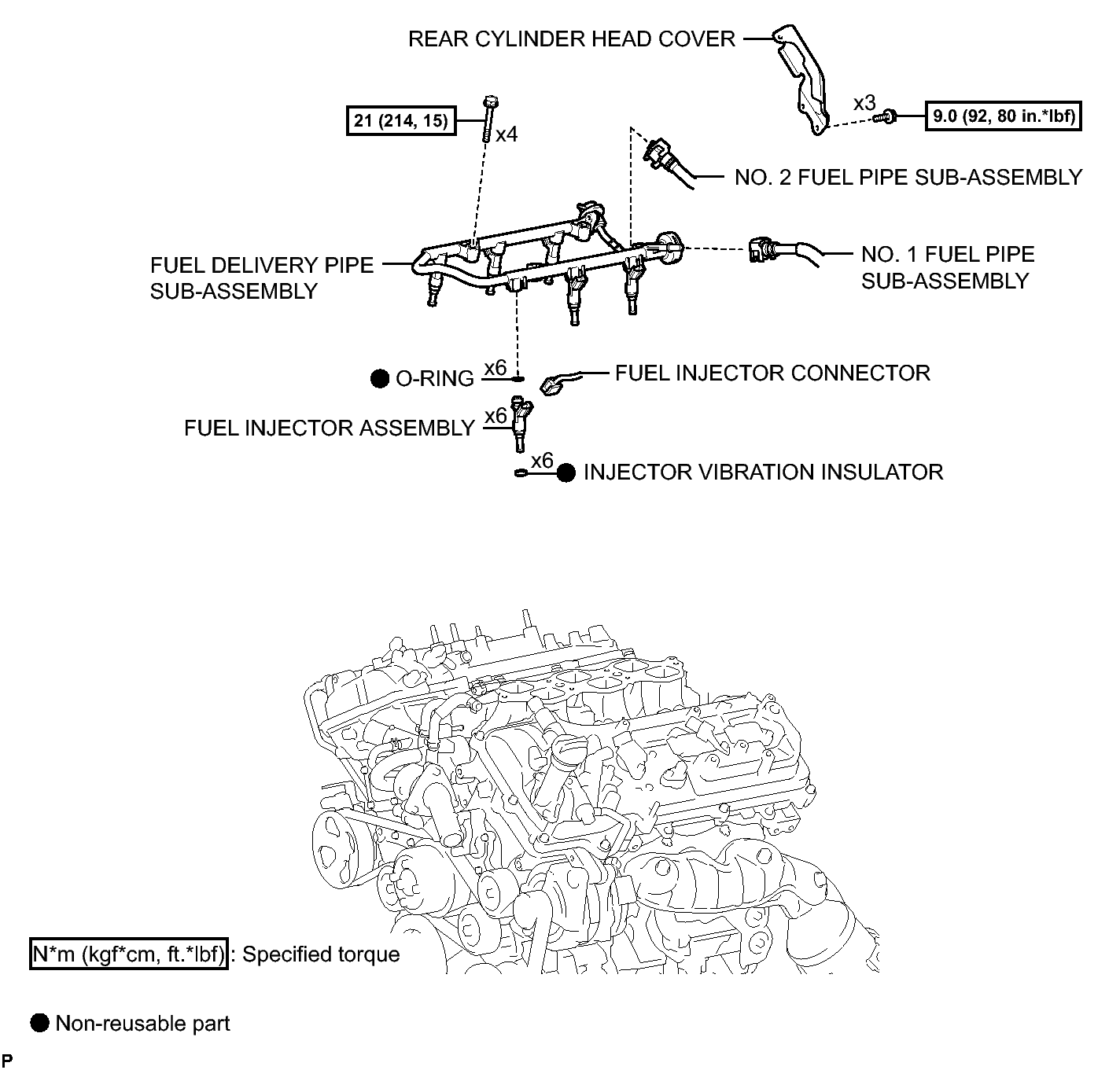

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications
GTY183981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
