PCV Valve: Removal: Removal

REMOVE V-BANK COVER . Refer to REMOVAL - Step 3
DISCONNECT HEATER HOSE
1. Disconnect the heater hose clamp.

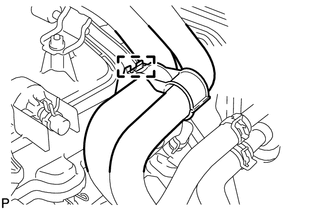

  Fig 1: Locating Heater Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VENTILATION VALVE SUB-ASSEMBLY
1. Disconnect the ventilation hose from the ventilation valve.

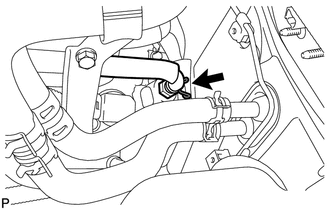

  Fig 2: Identifying Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the ventilation valve.

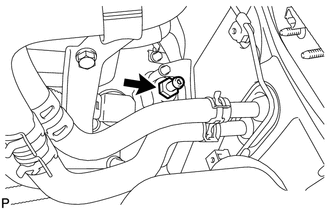

  Fig 3: Identifying Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
