Torque Specifications

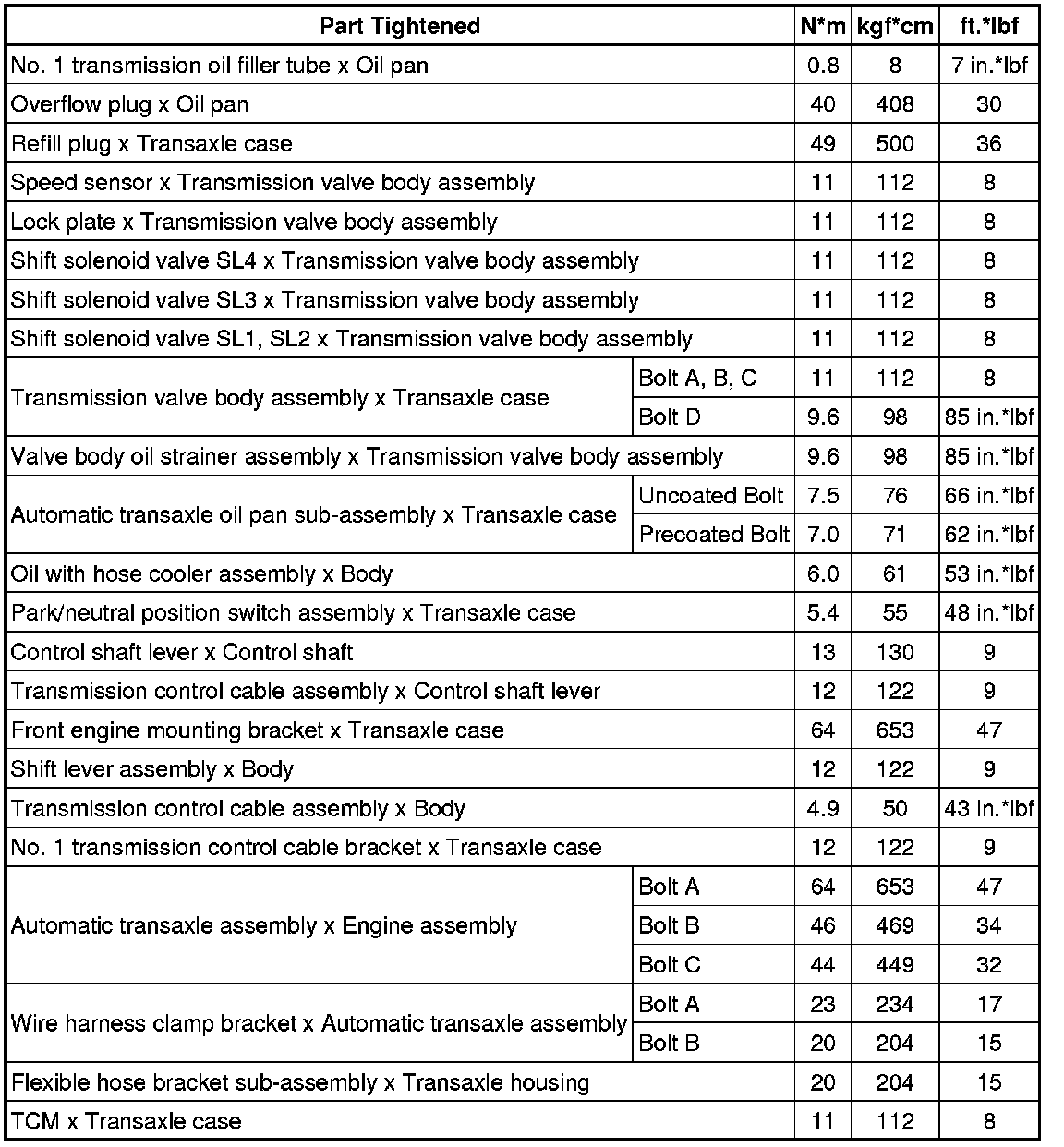

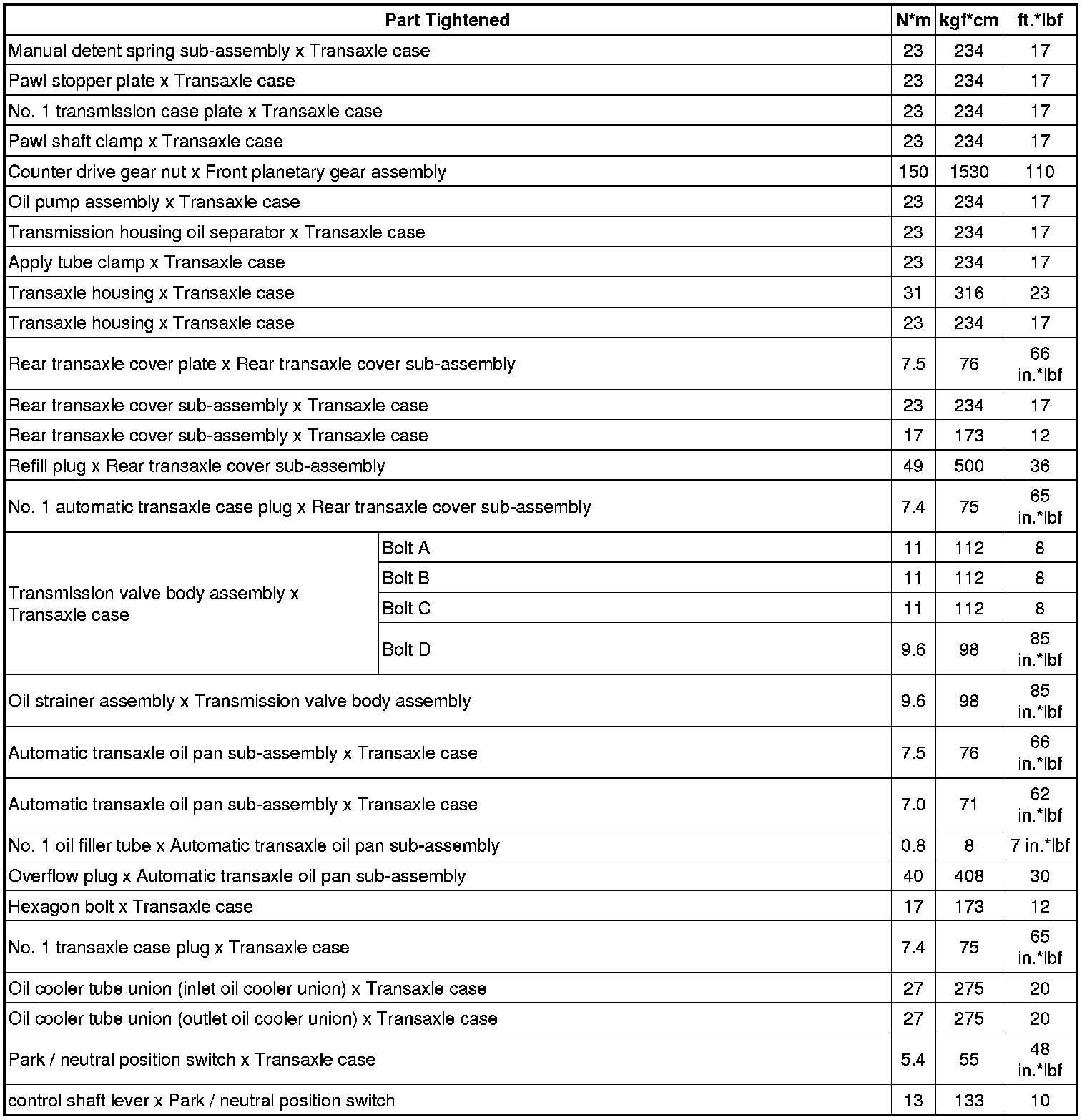

SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS





Automatic Transaxle Unit





Oil Pump





Shift Solenoid Valve





Differential Case
