Spark Plug
SPARK PLUG

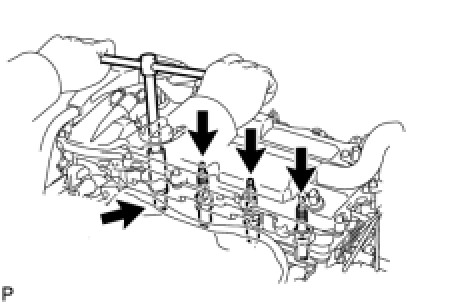

Using a
spark plug
wrench, install the 4 spark plugs.
Torque
25 Nm (254 kgf-cm, 18 ft-lbf)
Gap
