Home >> Toyota >> 2011 >> Highlander Base, 2.7 A >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System (Diagnostics - Introduction) >> Power Window Control System >> Components >> Illustration
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Power Window Control System: Components: Illustration

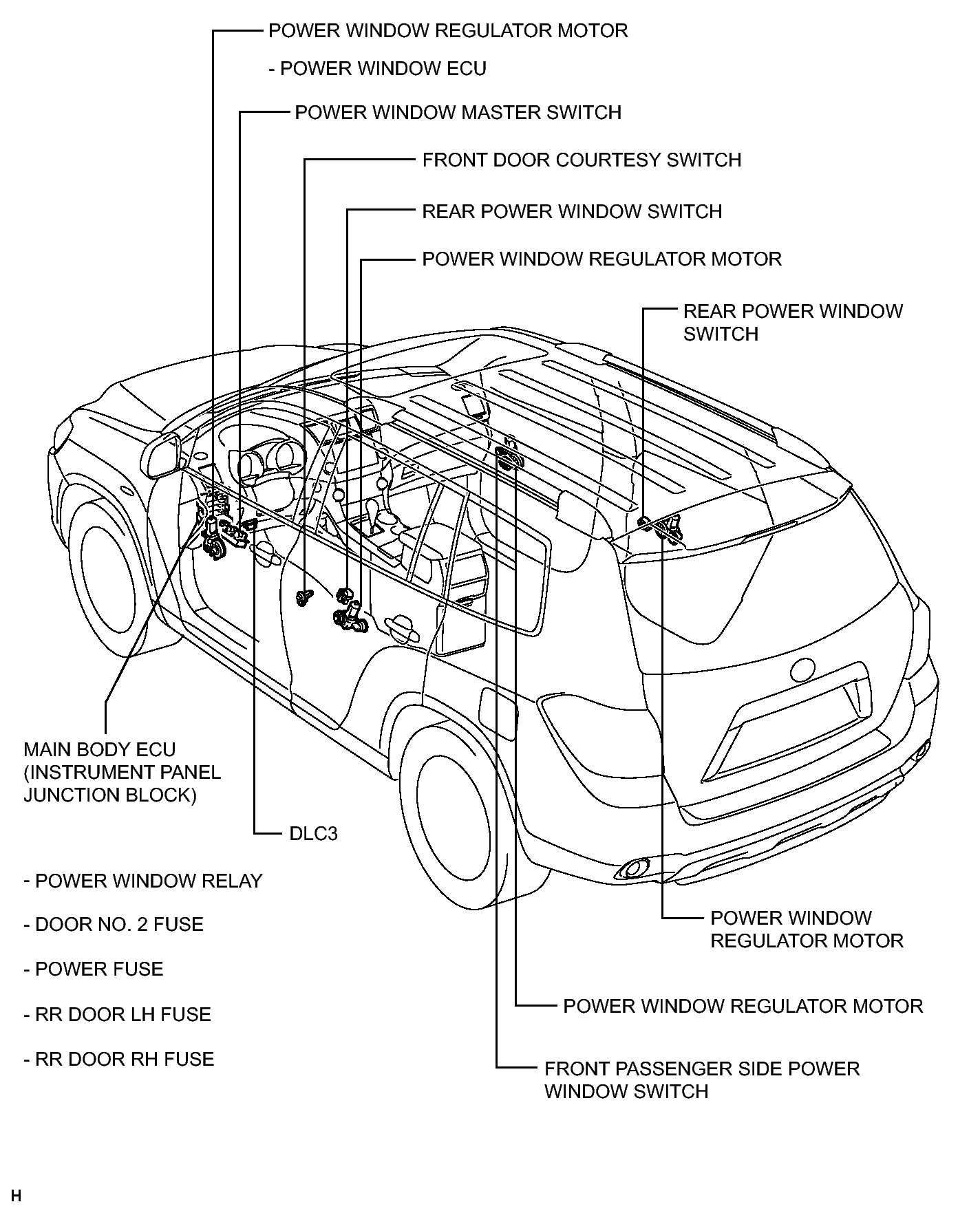

Fig 1: Identifying Power Window Control System Components Location
GTY197960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
