PCV Valve: Installation: Installation

INSTALL VENTILATION VALVE SUB-ASSEMBLY
1. Apply adhesive to 2 or 3 threads of the ventilation valve sub-assembly.

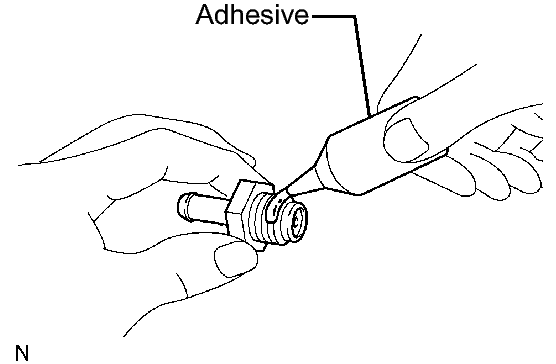

  Fig 1: Applying Adhesive To Threads Of Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Adhesive

  Toyota genuine adhesive 1324, three bond 1324 or equivalent
2. Using a 19 mm deep socket wrench, install the ventilation valve sub-assembly.

  Fig 2: Identifying Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)
3. Connect the No. 2 ventilation hose to the ventilation valve sub-assembly.

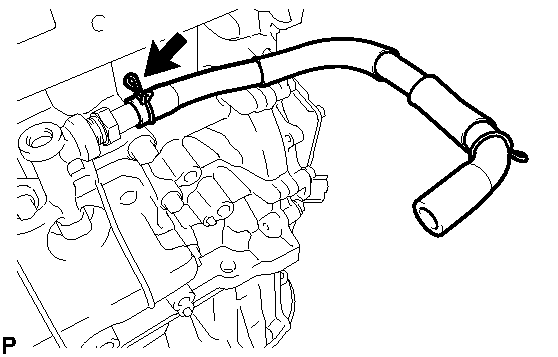

  Fig 3: Locating No. 2 Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install the intake manifold, refer to INSTALLATION .
INSPECT FOR OIL LEAK
