Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram

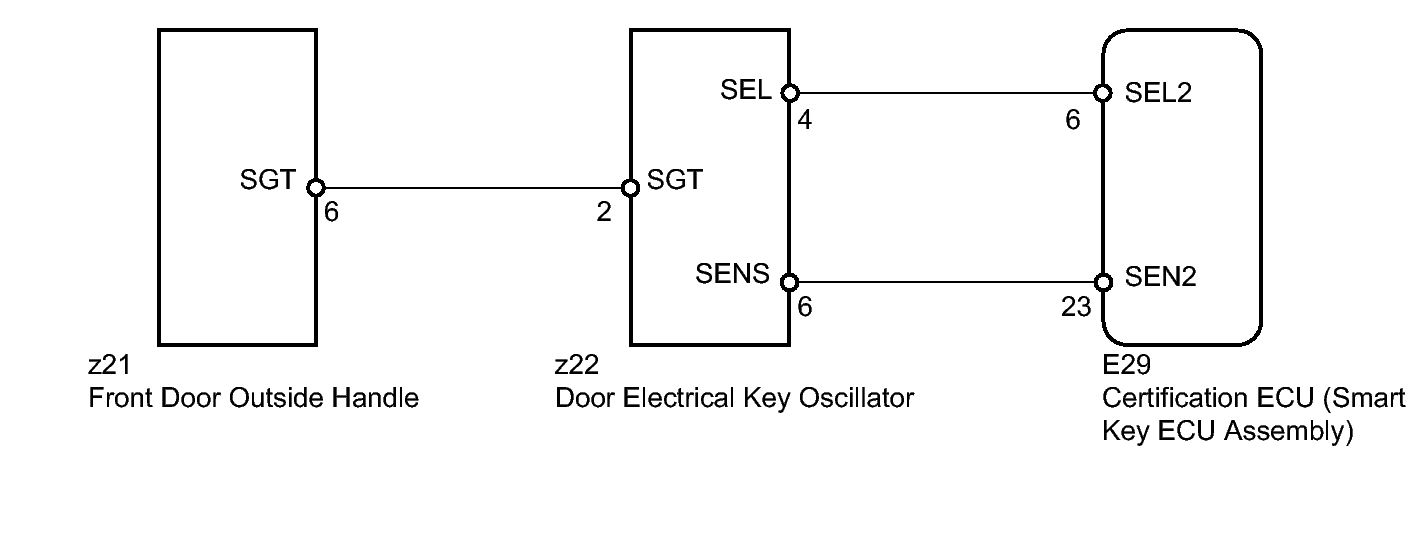

Fig 1: Front Passenger Side Door Entry Unlock Function - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
