All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

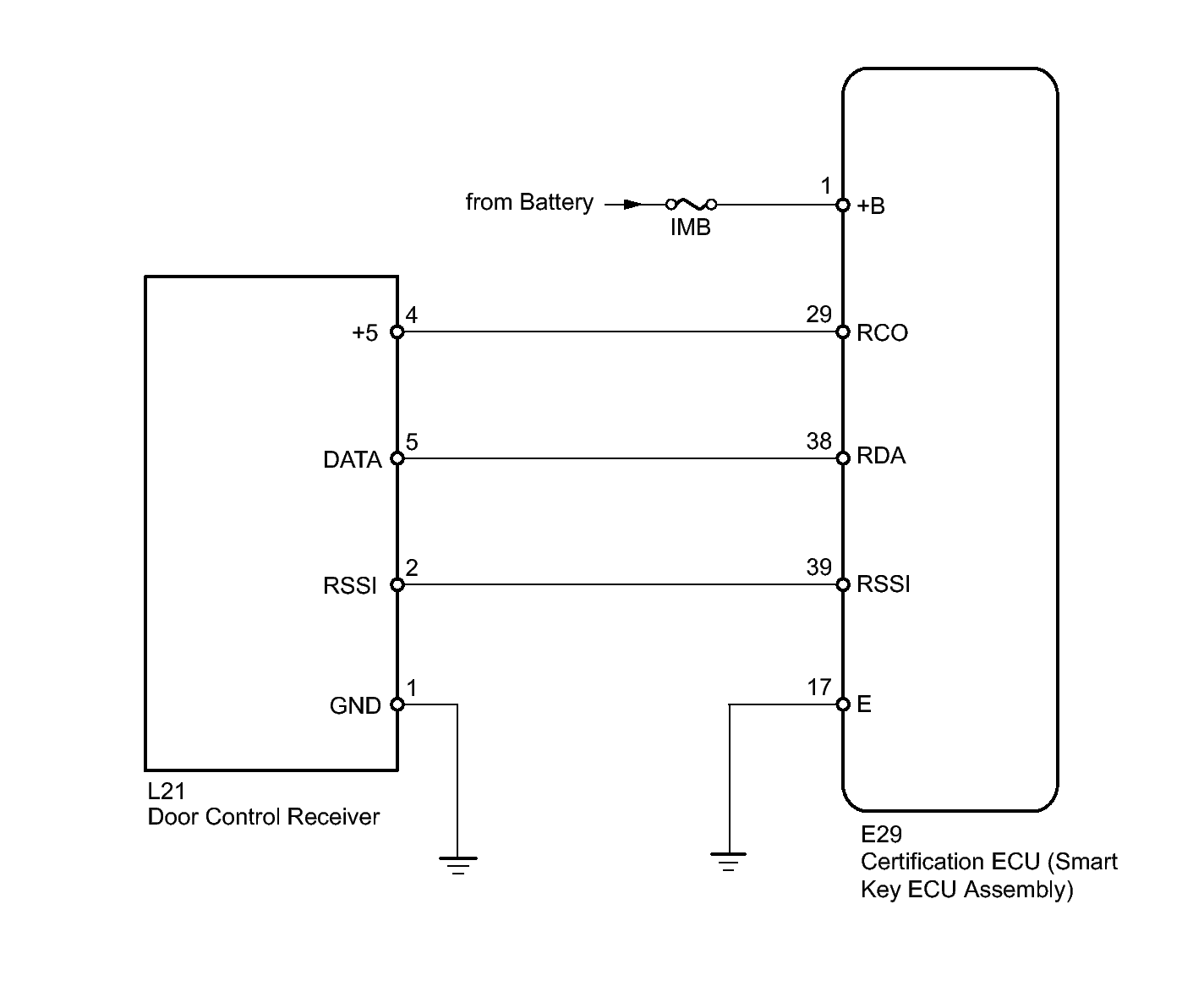

Fig 1: All Door Entry Lock/Unlock Functions And Wireless Functions - Wiring Diagram
GTY115759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
