Back Door Entry Lock Function does not Operate: Wiring Diagram

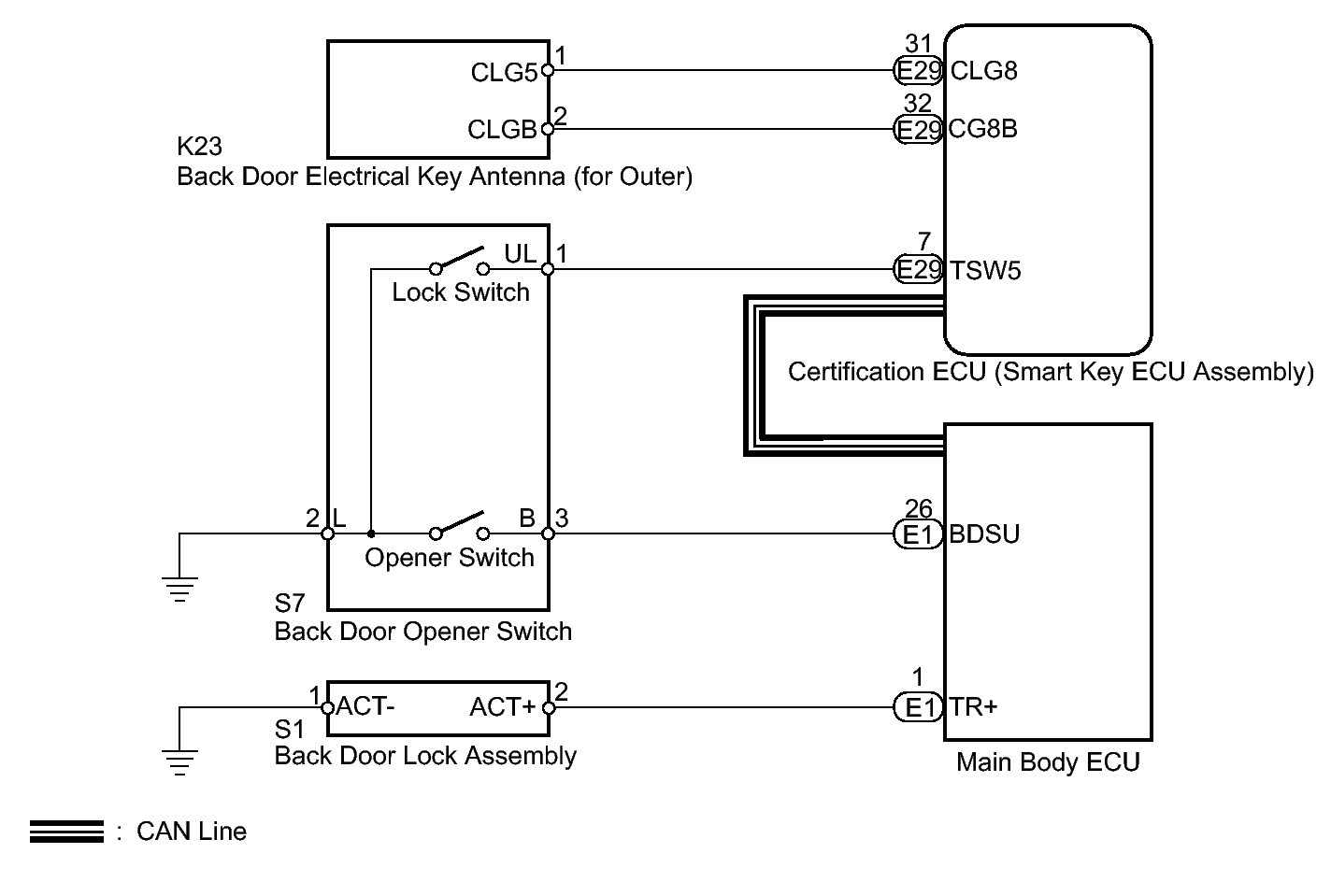

Fig 1: Back Door Entry Lock And Unlock Functions Do Not Operate - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
